Product Details:

Place of Origin: Guangdong, China
Brand Name: yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF4160 LCD 12v 100Ah

Payment & Shipping Terms:

Price: $109.00 - $875.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Nominal Voltage: 12.8Volts Nominal Capacity: 100Ah
Energe: 1280Wh Cycle Life: 2000 Cycles
Charge Current: 20A Water Dust Resistance: IP55
Cell&Format: IFR32700 N65,4S16P Casing: Plastic
Discharge Cut-off Voltage: 10.0v Terminal: M8
Warranty: 3years Application: BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage Systems, UPS,Solar&Wind Power System,E-Bike,E-rickshaw
Battery Size: 32700 Weight: 12.5kg
Port: Shenzhen Or Hongkong
High Light:

lifepo4 32650 battery

,

lifepo4 cell 32650

,

32700 lifepo4 battery cells

Product Description

32700 32650 Cell Large Capacity Rechargeable Lithium Phosphate Batteries LCD 12V 400Ah 300Ah 200Ah 100Ah Lifepo4 Battery





32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 0
Specification

LiFePO4 batteries have significant advantages over common lead accumulators in terms of cycle strength (lifetime), dimensions, energy density and corresponding weight.

Compared to conventional lead accumulators, LiFePO4 batteries can be discharged almost completely without suffering great voltage drops. While a lead battery can deliver about half of its nominal capacity, the nominal capacity of a LiFePO4 battery is almost the real available capacity.



Electrical
Characteristics
Nominal Voltage
12.8V

Nominal Capacity
100Ah@0.2C

Energy
1280Wh

Internal Resistance
≤50mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
20A

Max.Charging Current
50A
Standard Discharging
Discharging Current
50A

Max. Continuous Current
80A

Max.Pulse Current
200A(<3S)

Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N65,4S16P

Casing
Plastic

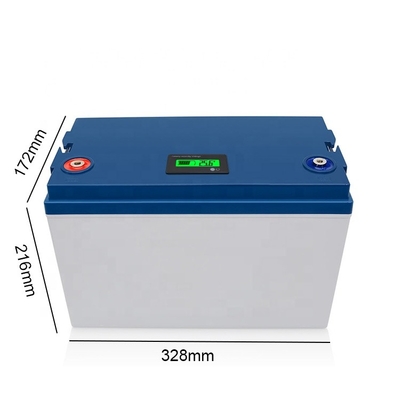

Dimension(L*W*H*TH)
328*172*216*216

Weight
Approx. 12.5Kg

Terminal
M8
Details Images
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 1
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 2
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 3
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 4
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 5
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 6
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 7
Test Chart
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 8
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

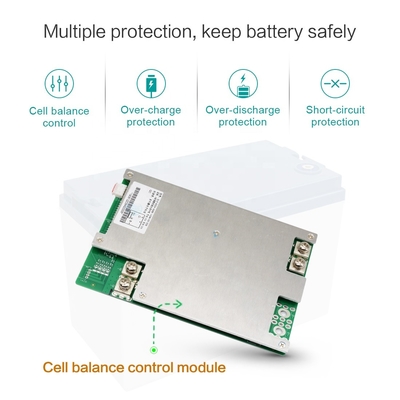

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 9
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 10

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 11
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 12

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.



Certifications
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 13
Packaging & Shipping
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 14
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 15
32700 32650 Lifepo4 Battery Cell LCD 12V 400Ah 300Ah 200Ah 100Ah 16
FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A:3 year warranty.
