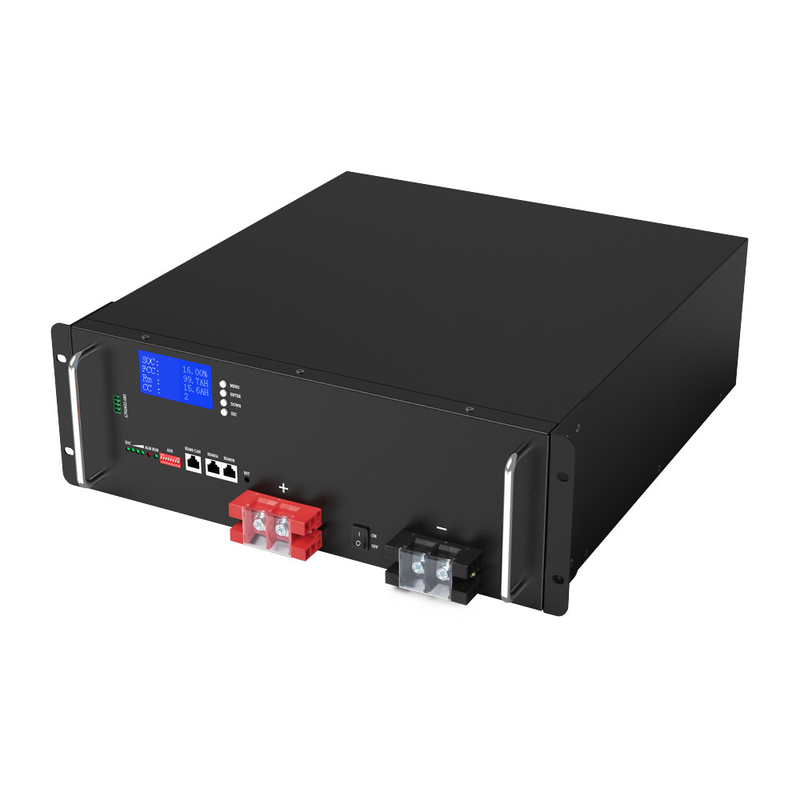

Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems

Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems

Product Details:

Place of Origin: Guangdong, China
Brand Name: YABO
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF51100 48V 100Ah

Payment & Shipping Terms:

Price: $1,115.00/pieces 1-49 pieces
Packaging Details: 1. We usually use the carton for packing.<br>2.As customer requirements packing.
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 5years Anode Material: LFP
Chargeable: Yes Application: Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Solar Energy Storage Systems, UPS,Lighting
Battery Size: 3.5U Weight: Approx. 45Kg
The Charging Ratio: 100A The Discharge Rate: 100A
Nominal Voltage: 51.2v Nominal Capacity: 100Ah
Energy: 5120Wh Internal Resistance: ≤35mΩ
Cycle Life: 4000-6000 Cycles Max.Charging Voltage: 58.4±0.2
Water Dust Resistance: IP54 Casing: Metal
Dimension(L*W*H*TH): 482.6*510*155mm(3.5U) Display: LCD
Port: Shenzhen/HK
High Light:

LFP 100Ah 48V LiFePO4 Battery

,

3.5U 48V LiFePO4 Battery

Product Description

Products Description
Electrical
Characteristics
Nominal Voltage
51.2V

Nominal Capacity
100Ah@0.2C

Energy
5120Wh

Internal Resistance
≤35mΩ

Cycle Life
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2

Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C

Charging Current
100A

Max.Charging Current
100A
Standard Discharging
Discharging Current
100A

Max. Continuous Current
100A

Max.Pulse Current
110A(10S) Can be set up

Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP54
Structure
Cell & Format
 (16S1P)

Casing
Metal

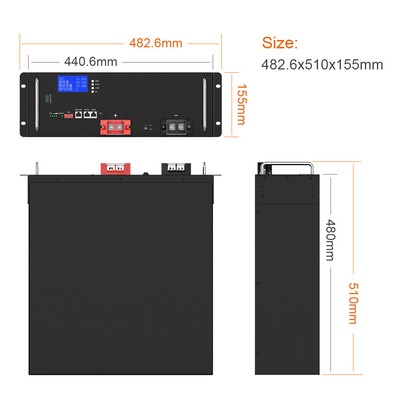

Max.Dimension (L*W*H)
482.6*510*155mm(3.5U)

Weight
44.5kg

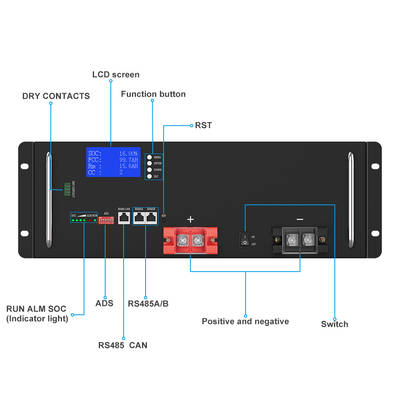

Communication Interface
CAN or RS485

Display
LCD
Product Details
Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems 0
Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems 1
Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems 2
Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems 3
Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems 4
Chart
Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems 5
Our Advantages



◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.

◆ Does not support series applications, the maximum support 15 batteries parallel.

Application
Lithium Ion 100Ah 48V LiFePO4 Battery For Solar Energy Storage Systems 6
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
