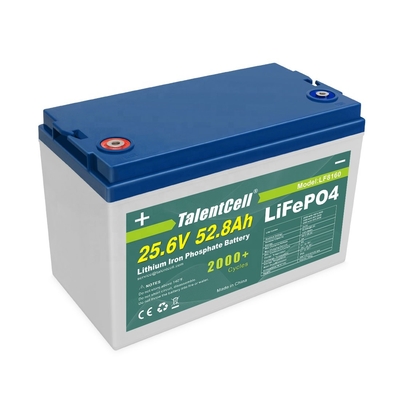

Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah

Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah

Product Details:

Place of Origin: Guangdong, China
Brand Name: TalentCell/YaBo
Certification: ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Model Number: LF8160 24V 52.8Ah

Payment & Shipping Terms:

Price: $270.00 - $289.00/pieces
Packaging Details: 1. We usually use the carton for packing.<br>2.As customer requirements packing.
Supply Ability: 100000 Piece/Pieces per Week
Get Best Price Contact Now

Detail Information

Warranty: 3years Anode Material: LFP
Chargeable: Yes Application: Home Appliances, Electric Power Systems, Solar Energy Storage Systems
Weight: Approx. 20Kg Combination Method: 16parallels 8series
Dimension: 328*216*172mm Energy: 1351.68Wh
Cycle Life: 2000 Cycles Self Discharge: ≤3.5% Per Month At 25℃
Max.Charging Voltage: 28.0~29.2V Discharging Current: 3A
Max. Continuous Current: 6A Water Dust Resistance: IP55
Casing: Plastic Port: Shenzhen/HongKong
High Light:

lithium ion battery for ev

,

EV Lifepo4 Battery

,

24v 50ah lithium iron phosphate battery

Product Description

New Rechargeable Deep Cycle Lithium Ion Lifepo4 24V 50Ah For Solar Energy Storage Systems


Product Description
Electrical
Characteristics
Nominal Voltage
25.6V

Nominal Capacity
52.8Ah@0.2C

Energy
1351.68Wh

Internal Resistance
≤55mΩ

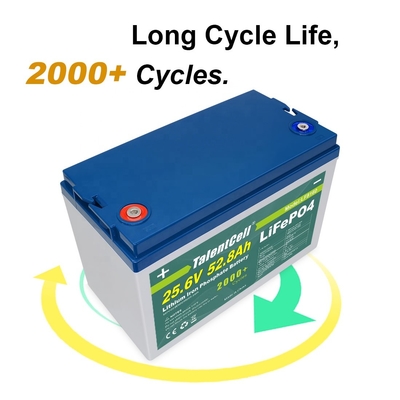

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
28.0~29.2V

Charging Mode
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).

Charging Current
3A

Max.Charging Current
6A
Standard Discharging
Discharging Current
3A

Max. Continuous Current
6A

Max.Pulse Current
12A(<3S)

Discharging Cut-off Voltage
20.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
26650-3300mAh,8S16P

Casing
Plastic

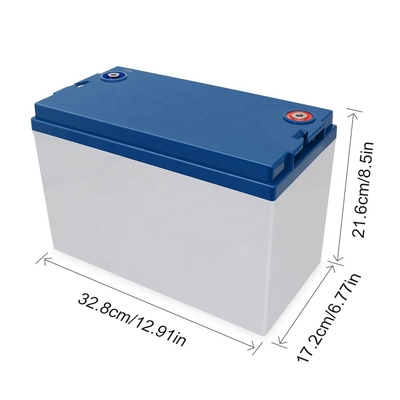

Dimension(L*W*H*TH)
328*216*172

Weight
Approx. 20Kg

Terminal
5521female input/output port
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 0
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 1
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 2
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 3
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 4
Features
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance
◆Internal cell balancing.

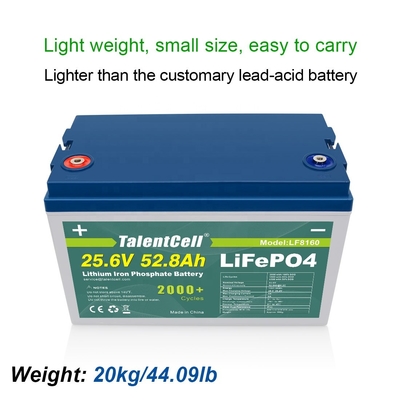

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Details Images
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 5
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

Click here to get a free quotation!
Application
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 6
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 7
Company Profile
Lithium Ion Ferrous Phosphate Lifepo4 Battery For Ev 24v 50ah 8

The company mainly engages in R&D, production and sales of rechargeable source system solutions in various fields.The company has been engaged in the development of lithium ion battery for more

than 10 years, a master's degree in deep research and development, and a batch of specialized technical talents from domestic institutions of higher leaming.



Product specifications complete, excellent performance, safe and reliable, various indicators have reached the national test battery

specification requirements, and has passed the relevant statutory authority at home and abroad security and performance testing, products are mainly sold to domestic market as well as North America, South America, Europe, Japan, southeast Asia and other markets. The company has the professional quality supervision team, the complete testing system and the perfect, the system, the scientific operation flow. From the battery's incoming material,

production, shipment, service and other links strictly control, following the ISO9001:2000 system requirements specification, guarantee product quality. And passed the ISO9001:2000, CE, IS014001:2004, RoHS, UL and other certifications.
