24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah

24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah

Product Details:

Place of Origin: Guangdong, China
Brand Name: YABO
Certification: CE/IEC/RoHS/UN38.3/FCC/MSDS
Model Number: YB-WM48170L

Payment & Shipping Terms:

Price: $1,000.00 - $2,500.00/pieces
Packaging Details: Standard Report Plastic Bag, Carton, Pallet.
Supply Ability: 50000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Battery Type: LiFePO4 Nominal Voltage: 51.2Volts
Nominal Capacity: 170Ah Energe: 8704Wh
Product Name: Power Battery Wall Cycle Life: 6000+ Cycles
Casing: Sheet Metal Case Application: Home Energy Storage,powerwall
Weight: About 65kg/ 68kg Dimension: 440*640*155mm
Port: Shenzhen Or HK
High Light:

24v lifepo4 powerwall

,

powerwall 48v

,

powerwall lifepo4

Product Description

YABO Solar 5KWh 8.7KWh 10KWh LiFePO4 24V 48V Solar Energy 170Ah Power Wall Lithium Batteries For Solar Systems 48V





Specification
Basic parameters:
Model: YB-WM48170L
Capacity: 170Ah(8.7kwh)
Voltage: 51.2V

Built-in battery parameters:
Voltage at end of Discharge: >40V
Charging Voltage: 58.4V
Material: SPCC
Internal Impedance: ≤25mΩ
Recommended charging current: 0.2C
Recommended discharging current: 0.2C
Maximum charge Current: 150A(0~45℃)
Maximum Discharge Current: 150A
Water Dust Resistance: IP55
Operation Temperature Range: Charge 0~45℃, Discharge -10~55℃
Great Cell: high cycle A+ product, 16S1P

Appearance parameters:
Size: 440*640*155mm
Pack Dimension: 440*640*186.5mm
Cycles: 4000~6000+
Weight: About 65kg/ 68kg

Details Images

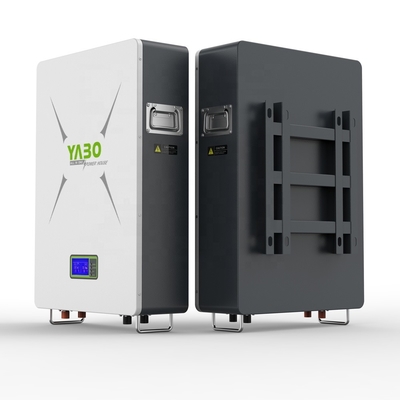

24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 0

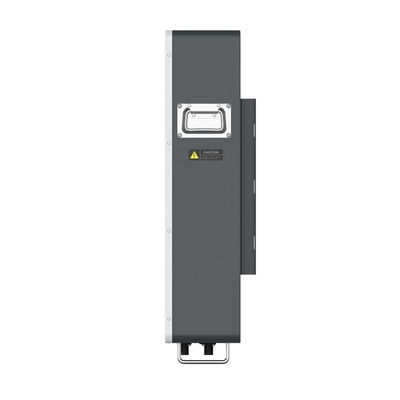

24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 1


Why Choose Us

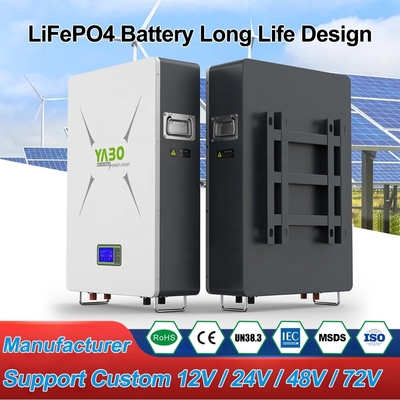

24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 2

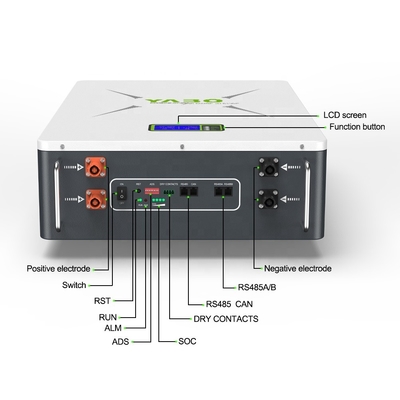

24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 3

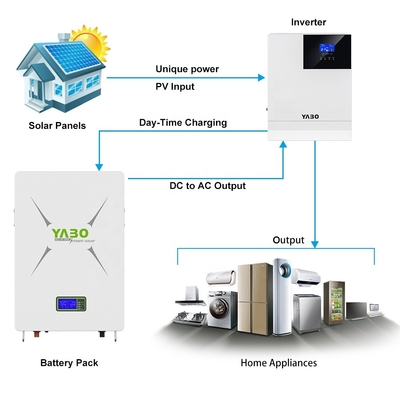

Application
24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 4
24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 5

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 6
24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 7

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.





24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 8
Packaging & Shipping
24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 9
24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 10
24v Lifepo4 Powerwall 5KWh 8.7KWh 10KWh 48V 170Ah 11
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the
production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A: We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:5 year warranty.
