Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS

Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS

Product Details:

Place of Origin: Guangdong, China
Brand Name: YaBopower
Certification: CE/IEC/RoHS/FCC/UN38.3/MSDS
Model Number: YB-LF51100 48V 100Ah

Payment & Shipping Terms:

Price: $483.00 - $897.75/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Product Name: 51.2V 100Ah (LiFePO4) Battery Cycle Life: 2000 Times
Dimension: 482*650*155mm Communication Interface: RS485 (8P8C)
Application: Home Energy Storage, RV, Tower Base Station, BOATS, Solar Energy Storage Systems, Home Energy Storage, RV, Tower Base Station Category: Rechargeable Batteries
OEM/ODM: Warmly Welcomed Samples Time: 7 DAYS
MOQ: 1 Pcs Warranty: 3years
Weight: Approx.48Kg Port: Shenzhen Or Hongkong
High Light:

lifepo4 home battery backup

,

Solar lifepo4 home battery

,

48v lifepo4 100ah

Product Description

China LiFePO4 Lithium Ion Battery Price Deep Cycle Solar LiFePO4 48V 100Ah Battery With BMS

Product Description



Built-In BMS(Battery Management System): to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.

Deep Cycle Battery: Our LiFePO4 battery provides 3000+ cycles.

Capacity Expansion: Our Lifepo4 batteries can be connected in parallels and in series for larger capacity and voltage. 20AH, 50AH,100AH, 200AH, 12V, 24V, 36V, 48V….



Electrical
Characteristics
Nominal Voltage
51.2V

Nominal Capacity
100Ah@0.2C

Energy
5120Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2

Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C

Charging Current
100A

Max.Charging Current
100A
Standard Discharging
Discharging Current
100A

Max. Continuous Current
100A

Max.Pulse Current
110A(10S) Can be set up

Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP54
Structure
Cell & Format
GSP34135214F (16S1P)

Casing
Metal

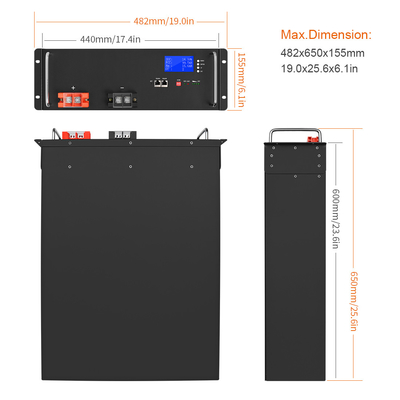

Max.Dimension (L*W*H)
482*650*155mm(3.5U)

Weight
Approx. 48Kg

Communication Interface
RS485 (8P8C)

Display
LCD
Details Images

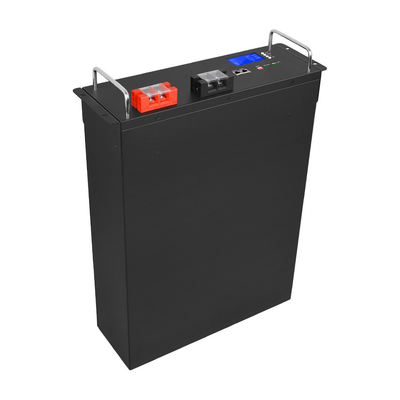

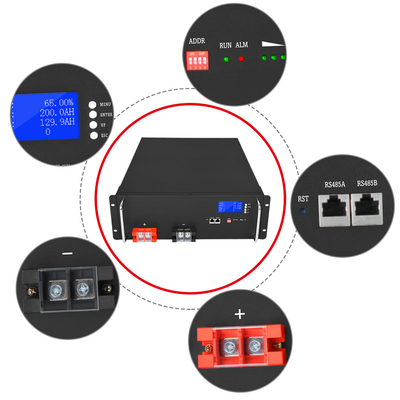

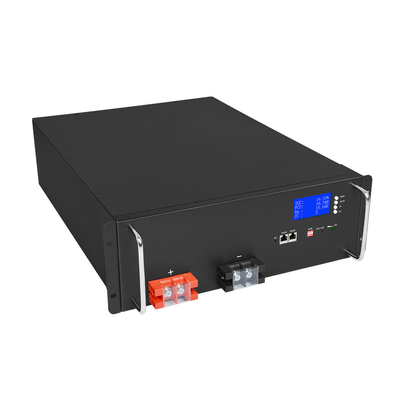

Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 0
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 1
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 2
Test Chart
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 3
Product Advantage



◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions. ◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature. ◆ Free of maintenance . ◆ Internal cell balancing. ◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery. ◆ It can be charged with professional photovoltaic system. ◆ Wider temperature range:-20℃~60℃. ◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 4
◆ Home Energy Storage, RV, Tower Base Station
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting

Company Strength
YaBopower Technology which specialised in manufacturing lithium ion batteries since year of 2001.

We are top one brand of lithium ion battery on Amazon.com(Brand Name: TalentCell.)

Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 5
Company Profile
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 6
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 7

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.





Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 8
Product Packaging
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 9
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 10
Solar Lifepo4 Home Battery Backup 48v 100ah Lifepo4 5.12 Kwh With BMS 11
FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A:3 year warranty.
