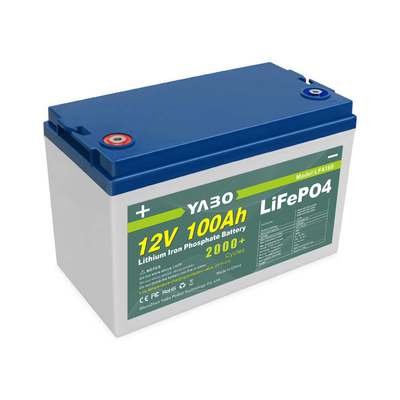

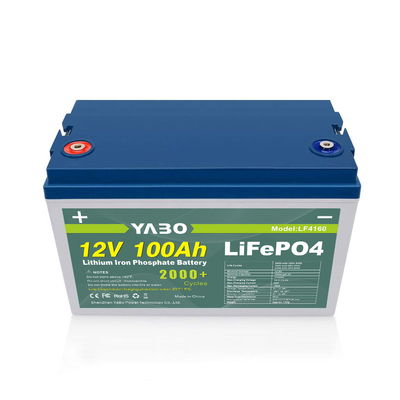

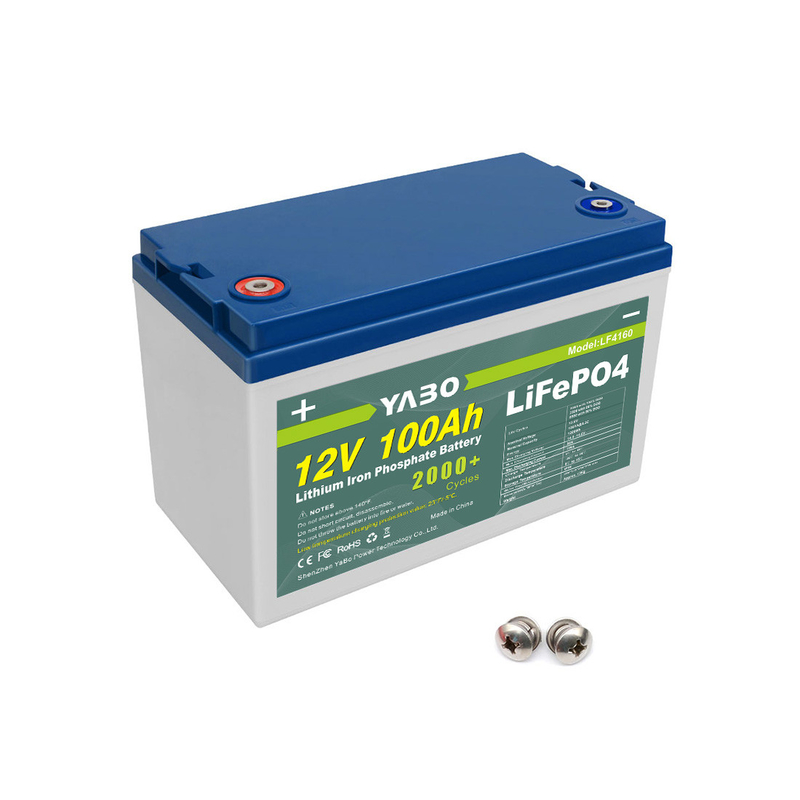

12v Lifepo4 Solar Battery System Rechargeable 100Ah 4S1P

2022 china supplier good quality 12 volt lifepo4 battery 12V 100Ah 4S1P rechargeable Lifepo4 Batterie affordable price

BUILT-IN SMART BMS
Okacc LiFePO4 battery has built-in BMS(Battery Management System) to protect it fromovercharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.Built-in high temp cut off prevents charging over 50 °C(122 °F).

Product Description

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	100Ah@0.2C
	Energy	1280Wh
	Internal Resistance	≤50mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	14.0~14.6V
	Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
	Charging Current	50A
	Max.Charging Current	50A
Standard Discharging	Discharging Current	100A
	Max. Continuous Current	100A
	Max.Pulse Current	200A(<3S)
	Discharging Cut-off Voltage	10.0
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Structure	Cell & Format	IFR32700 N65,4S17P
	Casing	Plastic
	Dimension(L*W*H*TH)	328*172*216*216mm
	Package Dimension	398*243*295mm
	Weight	Approx. 13Kg
	Terminal	M8

Details Images





















Test Chart

Product Advantage



◆ Using lithium iron phosphate cell, superior safety,thousands of cycles.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ No need of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charger (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallel.

Application

◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting

Why Choose Us

Product Packaging

FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.



Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.



Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.



Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. production and confirm the design firstly based on our sample.



Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.



Q8.How about warranty?

A:3 year warranty.
