100ah 180Ah 200ah 12v Lifepo4 Battery Pack Solar UPS
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Yabopower |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Model Number: | YB-LF4302 LCD 12V 180Ah |
Payment & Shipping Terms:
| Price: | $389.00 - $429.00/pieces |
|---|---|
| Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3years | Application: | BOATS, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting, UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle |
|---|---|---|---|
| Weight: | 20.5kg | Product Name: | 12.8V 180Ah |
| Cycle Life: | 2000 Times | Dimension: | 485*170*240*240mm |
| Category: | Rechargeable Batteries | OEM/ODM: | Warmly Welcomed |
| MOQ: | 1 Pcs | Delivery Date: | 7-15 Days |
| Trade Terms: | DDP | Port: | Shenzhen Or Hongkong |
| High Light: | 200ah 12v lifepo4 battery,lifepo4 deep cycle battery 12v 100ah,lifepo4 battery pack 12v |
||
Product Description

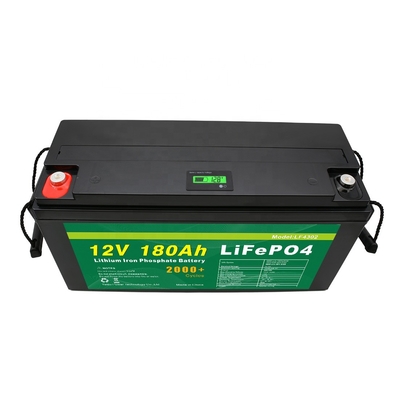

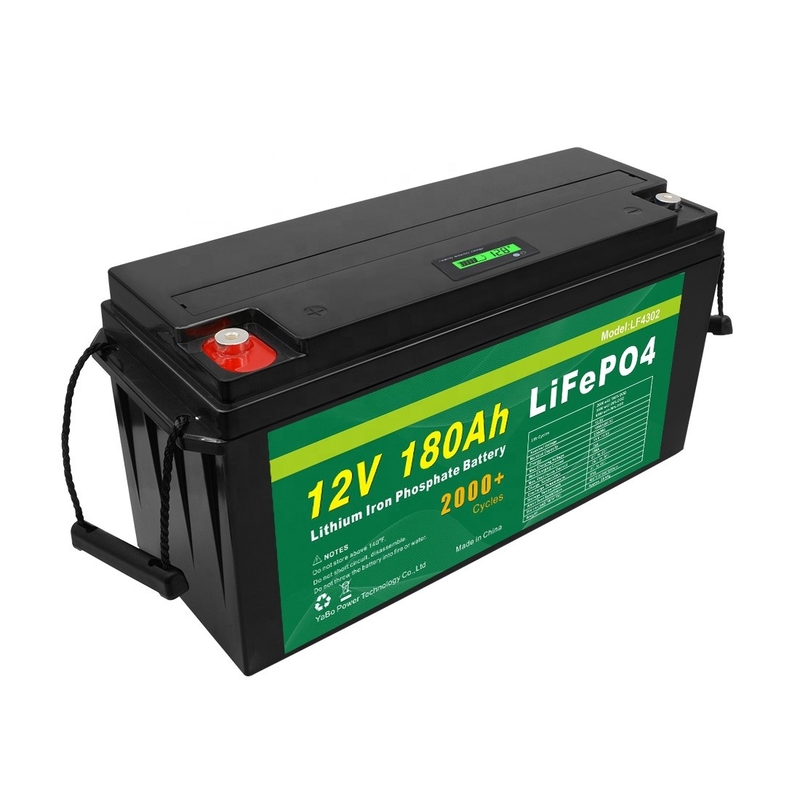

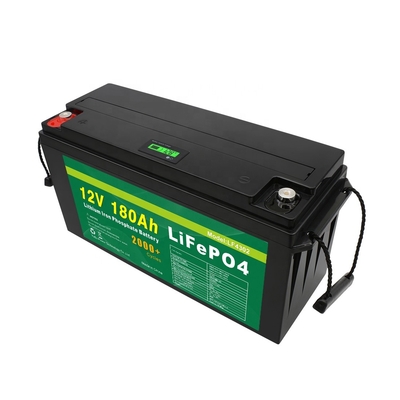

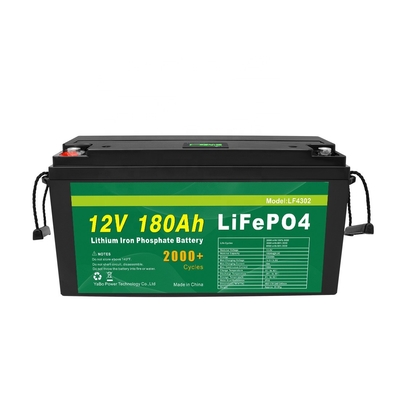

High Quality Sealed Lithium Lifepo4 Battery Pack 12V 180Ah In Storage Batteries For UPS
Quality: Level A 12v single lifepo4 cells , available both Cylindrical and Prismatic types All batteries was built in waterproof BMS 3 Years Warranty Service: One selection,a lifelong companionship!
|
Characteristics |
Nominal Voltage
|
12.8V
|
|
|
Nominal Capacity
|
180Ah@0.2C
|
|
|
Energy
|
2304Wh
|
|
|
Internal Resistance
|
≤40mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
|
Max.Charging Voltage
|
14.0~14.6V
|
|
|
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C |
|
|
Charging Current
|
90A
|
|
|
Max.Charging Current
|
100A
|
|
|
Discharging Current
|
90A
|
|
|
Max. Continuous Current
|
100A
|
|
|
Max.Pulse Current
|
200A(<3S)
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
|
Cell & Format
|
IFR32700 N60,4S30P
|
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
485*170*240*240
|
|
|
Weight
|
Approx. 20.5Kg
|
|
|
Terminal
|
M8
|
why choose us?
1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .
2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .
3. Wider Temperature Range : -20°C-60°℃ .
4. Support 4pcs 12V Batteries Connect In Series To Get48V .
5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .
6. Balancing BMS with balancing function .
Shenzhen YaBoPower Technology Co., Ltd. founded in 2012, is a clean energy company focused on the development, man-
ufac turing and marketing of nic kel-metal hydride (N-MH) and lithium-ion (Li-lon) rechargeable batteries and related products
for both consumer and industrial applic ations. Headquartered in Shenzhen, China.
YaBoPower's products are distributed worldwide for use in various electronic products, these include: Wireless communi-
cation devices, lighting, electrical tools, toys, medical equipment, solar energy storage systems, backup power systems
and electric vehicles.
As a leading worldwide supplier, YaBo's current distribution network includes China, Hong Kong, North America, Europe,Southeast Asia and Korea. Our lithium ion/lithium polymer batteries show high energy density of 300wh/kg, long cycle life exceed 1,000 cycles, wide temperature work range from -40"C~+65'C.
Currently we are the only supplier of ultra-high power for Honda Hybrid and Toyota Hybrid car except Panasonic. We provide clean energy solutions to our customers. We believe that our reliable quality products and strong relationships with consumers is the key to our success.We are dedicated to providing first-class, safe and environmentally friendly clean energy solutions to our consumers. We believe that our high quality products and strong relationships with consumers are the key to our success. We are dedicated to providing first-class, safe and environmentally friendly energy.
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8. How about warranty?
A:3 year warranty.
