Product Details:

Place of Origin: Guangdong, China
Brand Name: Yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: LF4180 LED 12V 110Ah

Payment & Shipping Terms:

Price: $238.00 - $266.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 3years Application: BOATS, Golf Carts, Electric Vehicles, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting, UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle
Weight: 13.5KG Product Name: 12.8V 110Ah (LiFePO4) Battery
Cycle Life: 2000 Times Dimension: 328*172*216*216mm
Category: Rechargeable Batteries OEM/ODM: Warmly Welcomed
Battery Cell: 32700 MOQ: 1 Pcs
Trade Terms: DDP Delivery Date: 7-15 Days
Port: Shenzhen Or Hongkong
High Light:

lifepo4 golf battery

,

12v 110Ah lifepo4

,

lifepo4 golf trolley battery

Product Description

Wholesale Cheap Long Life Lifepo4 12v 110Ah Deep Cycle Lifepo4 Golf Cart Batteries





12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 0
Product Description

This 12V 100Ah lithium battery can connect up to 4 batteries of the same type in parallel to form a 12V 200Ah, 12V 300Ah, or even a 12V 400Ah battery. It is also possible to connect up to 4 batteries of the same type in series to form 24V 100Ah, 36V 100Ah, or even 48V 100Ah batteries.





Electrical
Characteristics
Nominal Voltage
12.8V

Nominal Capacity
110Ah@0.2C

Energy
1408Wh

Internal Resistance
≤45mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃




Standard Charging
Max.Charging Voltage
14.0~14.6V


Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
55A

Max.Charging Current
80A


Standard Discharging
Discharging Current
55A

Max. Continuous Current
80A

Max.Pulse Current
160A(<3S)

Discharging Cut-off Voltage
10.0




Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55



Structure
Cell & Format
IFR32700 N60,4S18P

Casing
Plastic

Dimension(L*W*H*TH)
328*172*216*216

Weight
Approx. 13.5Kg

Terminal
M6
Details Images

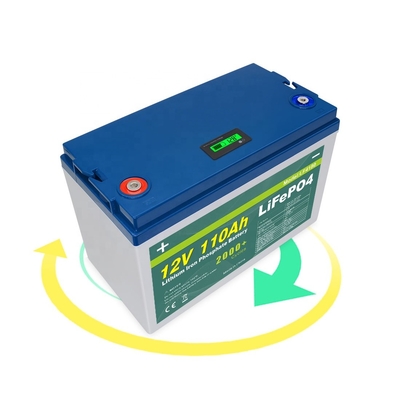

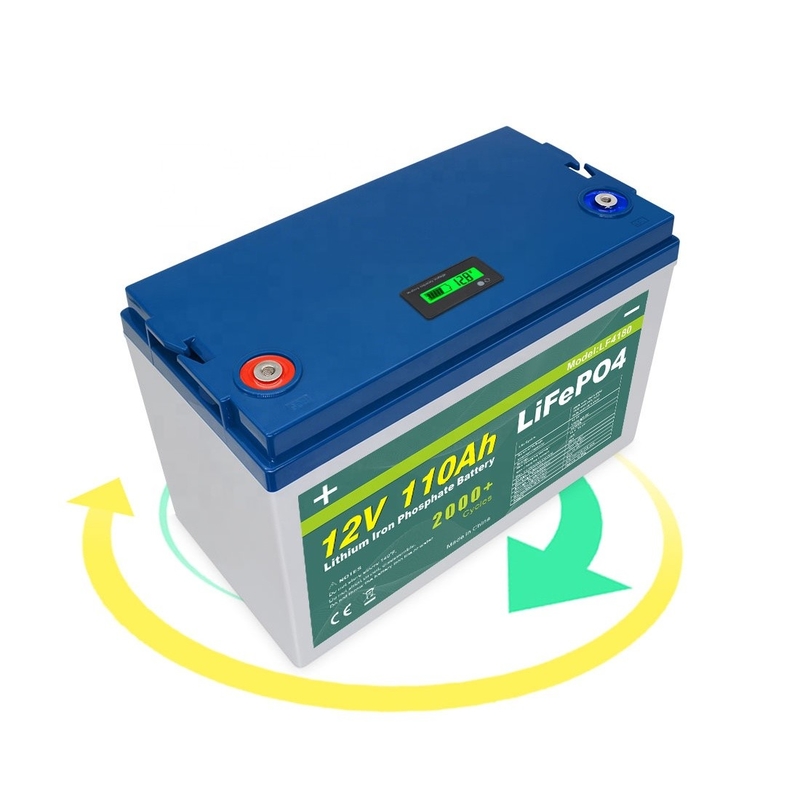

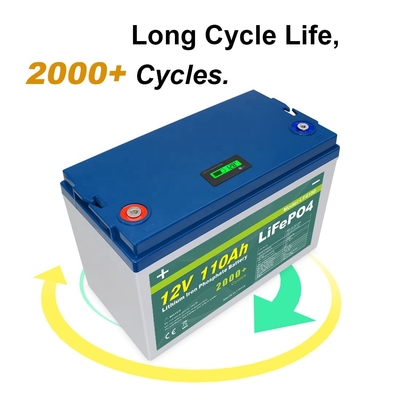

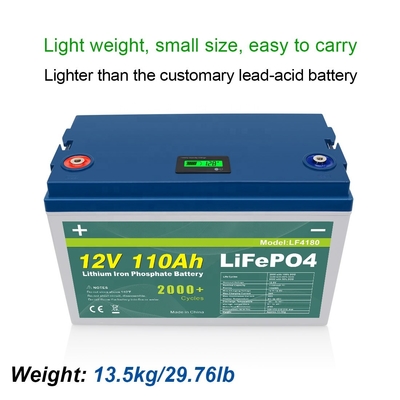

12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 1
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 2
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 3
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 4

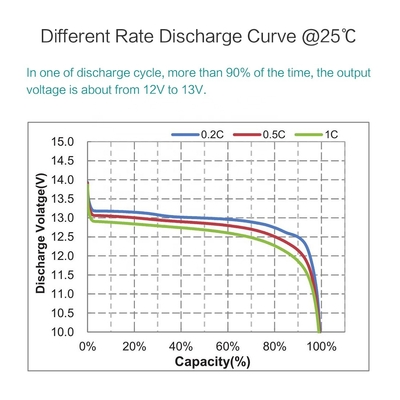

Test Chart
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 5
Product Advantage

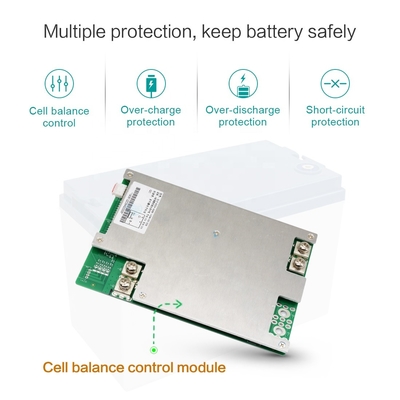

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions. ◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature. ◆ Free of maintenance . ◆ Internal cell balancing. ◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery. ◆ Can be charged using most standard lead-acid charges (set). ◆ Wider temperature range:-20℃~60℃. ◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 6
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 7
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Why Choose Us
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 8

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 9
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 10

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.



12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 11
12v 110Ah Lifepo4 Golf Cart Battery Deep Cycle 12
