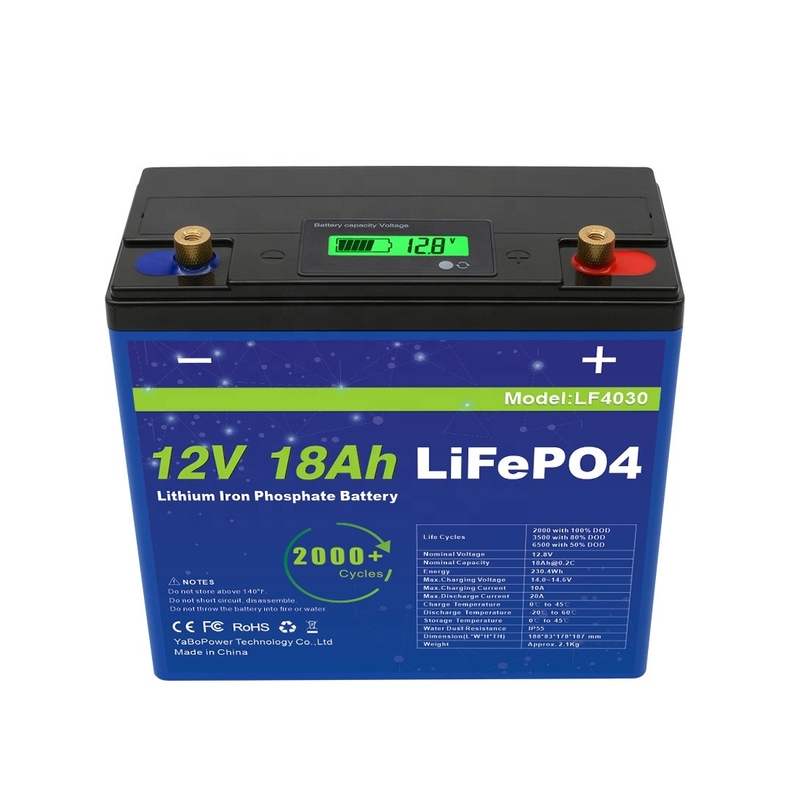

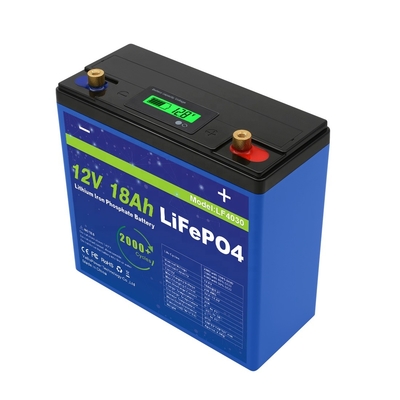

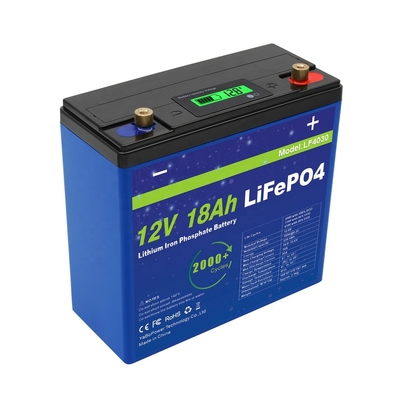

12v 18ah Lifepo4 Battery Lithium Ion Small Discharge Current 9A
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | yabopower |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Model Number: | YB-LF4030 12v 18Ah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $45.08/pieces 2-49 pieces |
| Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Nominal Voltage: | 12.8Volts | Nominal Capacity: | 18Ah |
|---|---|---|---|
| Energe: | 230.4Wh | Cycle Life: | 2000 Cycles |
| Charging Current: | 9A | Water Dust Resistance: | IP55 |
| Cell&Format: | IFR32700 N60,4S3P | Casing: | Plastic |
| Discharge Cut-off Voltage: | 10.0v | Terminal: | M5 |
| Warranty: | 3years | Application: | BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage Systems, UPS,Solar&Wind Power System,E-Bike,E-rickshaw |
| Battery Size: | 32700 | Weight: | 2.1kg |
| Port: | Shenzhen Or Hongkong | ||
| High Light: | 12v 18ah lithium ion battery,lifepo4 battery 12v small,lifepo4 12v 18ah |
||
Product Description
New Energy Supplier 12v 18Ah Discharge Current 9A Lifepo4 Battery With Prominent Capacity

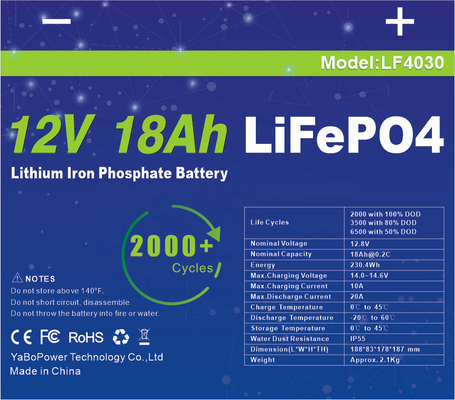

Specification
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.
3. Max discharge continuous current 18A
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 Waterproof ratings.
|
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
|
Nominal Capacity
|
18Ah@0.2C
|
|
|
Energy
|
230.4Wh
|
|
|
Internal Resistance
|
≤70mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
|
|
|
Charging Current
|
9A
|
|
|
Max.Charging Current
|
18A
|
|
Standard Discharging
|
Discharging Current
|
9A
|
|
|
Max. Continuous Current
|
20A
|
|
|
Max.Pulse Current
|
40A(<3S)
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Structure
|
Cell & Format
|
IFR32700 N60,4S3P
|
|
|
Casing
|
Plastic
|
|
|

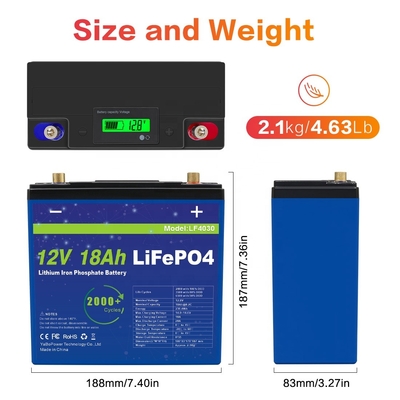

Dimension(L*W*H*TH)
|
188*83*178*187
|
|
|
Weight
|
Approx. 2.1Kg
|
|
|
Terminal
|
M5
|
Details Images
Test Chart
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Why Choose Us
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality. Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity. Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have? A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Q8.How about warranty? A:3 year warranty.
