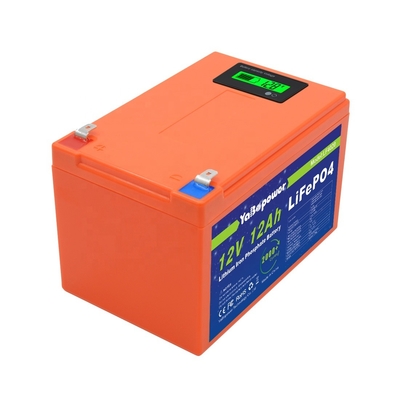

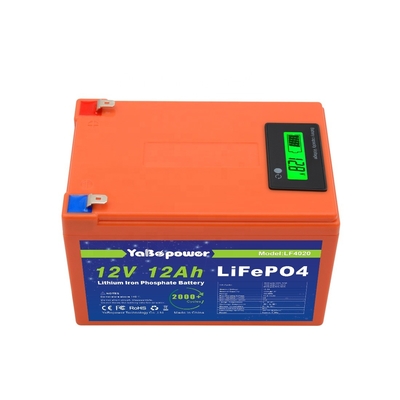

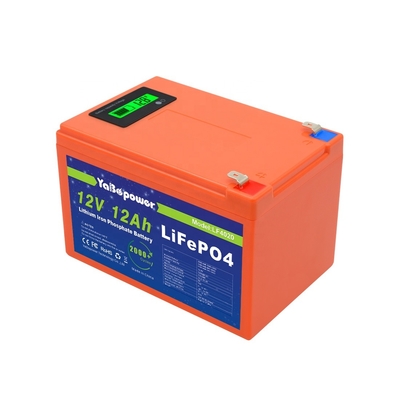

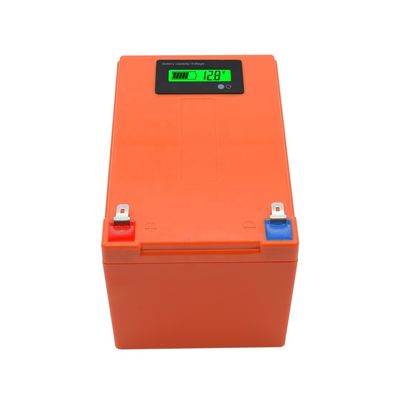

CE Certificated 12v 12Ah Discharge Current 6A Lifepo4 Battery With Prominent Capacity
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | yabopower |
Certification: | CE/IEC/RoHS/UN38.3/FCC |
Model Number: | YB-LF4020 12v 12Ah |
Payment & Shipping Terms:
Minimum Order Quantity: | 2 pieces |
---|---|
Price: | $29.83/pieces 2-49 pieces |
Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
Supply Ability: | 100000 Piece/Pieces per Month |
Detail Information |
|||
Nominal Voltage: | 12.8Volts | Nominal Capacity: | 12Ah |
---|---|---|---|
Energe: | 153.6Wh | Cycle Life: | 2000 Cycles |
Charging Current: | 6A | Water Dust Resistance: | IP55 |
Cell&Format: | IFR32700 N65,4S2P | Casing: | Plastic |
Discharge Cut-off Voltage: | 10.0v | Terminal: | F1 |
Warranty: | 3years | Application: | BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage Systems, UPS,Solar&Wind Power System,E-Bike,E-rickshaw |
Battery Size: | 32700 | Weight: | 1.4kg |
Port: | Shenzhen Or Hongkong |
Product Description
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
12Ah@0.2C
|
|
Energy
|
153.6Wh
|
|
Internal Resistance
|
≤70mΩ
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
|
|
Charging Current
|
6A
|
|
Max.Charging Current
|
12A
|
Standard Discharging
|
Discharging Current
|
6A
|
|
Max. Continuous Current
|
15A
|
|
Max.Pulse Current
|
30A(<3S)
|
|
Discharging Cut-off Voltage
|
10.0
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Water Dust Resistance
|
IP55
|
Structure
|
Cell & Format
|
IFR32700 N65,4S2P
|
|
Casing
|
Plastic
|
|

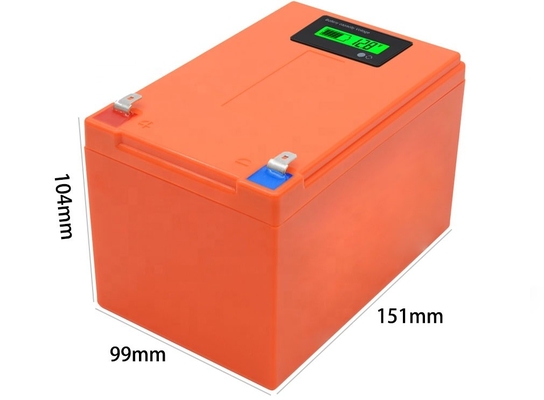

Dimension(L*W*H*TH)
|
151*99*99*104
|
|
Weight
|
Approx. 1.4Kg
|
|
Terminal
|
F1
|
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
why choose us?
1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .
2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .
3. Wider Temperature Range : -20°C-60°℃ .
4. Support 4pcs 12V Batteries Connect In Series To Get48V .
5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .
6. Balancing BMS with balancing function .
Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.
YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.
As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8. How about warranty?
A:3 year warranty.
