• 24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah
  • 24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah
  • 24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah
  • 24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah
  • 24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah
  • 24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah

24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah

Product Details:

Place of Origin: Guangdong, China
Brand Name: YaBo
Model Number: YB-LF8161 LCD 24V 100Ah

Payment & Shipping Terms:

Price: $511.00 - $906.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Product Name: 25.6Volts 100Ah (LiFePO4) Battery Energe: 2560Wh
Cycle Life: 2000 Cycles Charging Current: 50A
Water Dust Resistance: IP55 Cell&Format: 32700,8S16P
Casing: Plastic Discharge Cut-off Voltage: 20.0v
Terminal: M8 Warranty: 3years
Port: Shenzhen Or Hongkong
High Light:

battery lifepo4 24v 100ah

,

24v 100ah lifepo4 battery

,

24v lifepo4 200ah

Product Description

Factory OEM 100Ah 120Ah 150Ah 180Ah LiFePO4 Battery Production Line Customization LiFePO4 24V 120Ah Battery




Specification

BUILT-IN SMART BMS Okacc LiFePO4 battery has built-in BMS(Battery Management System) to protect it fromovercharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.Built-in high temp cut off prevents charging over 50 °C(122 °F).

Electrical
Characteristics
Nominal Voltage
24V

Nominal Capacity
100Ah@0.2C

Energy
2560Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
50A

Max.Charging Current
120A
Standard Discharging
Discharging Current
50A

Max. Continuous Current
120A

Max.Pulse Current
250A(<3S)

Discharging Cut-off Voltage
20.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
32700,8S16P

Casing
Plastic

Dimension(L*W*H*TH)
522*238*217*217mm

Weight
Approx.25Kg

Terminal
M8
Details Images

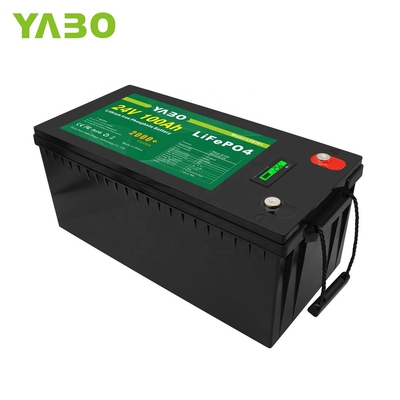

24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 0

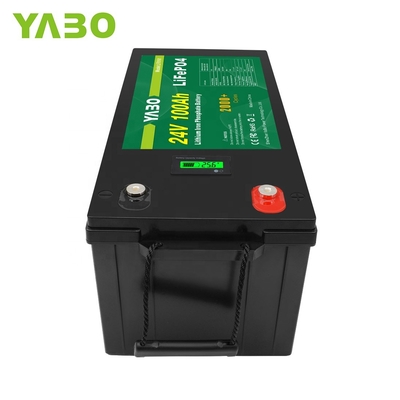

24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 1
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 2

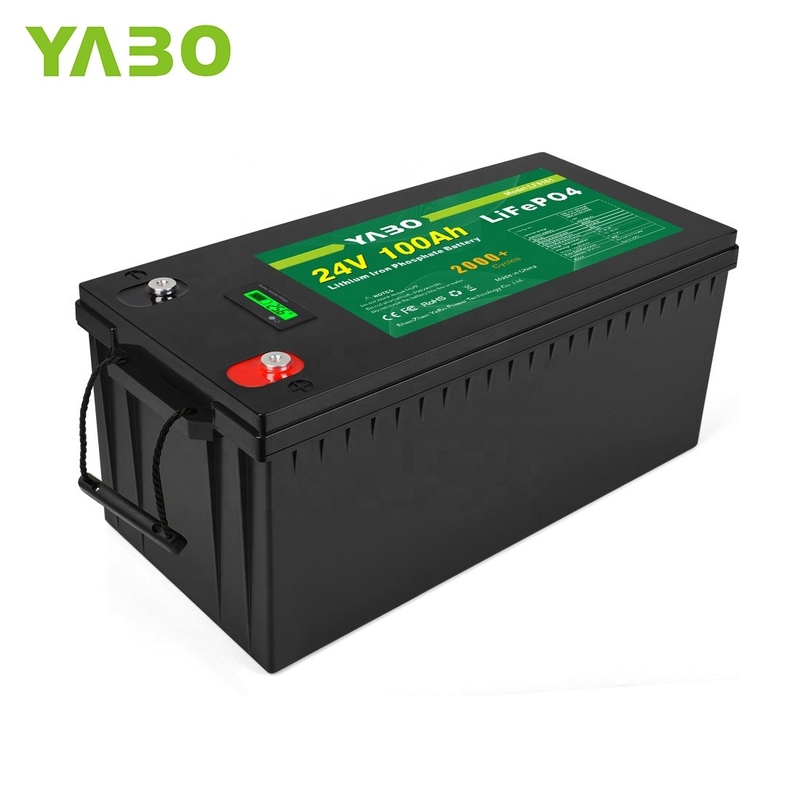

24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 3
Test Chart
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 4
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 5
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us

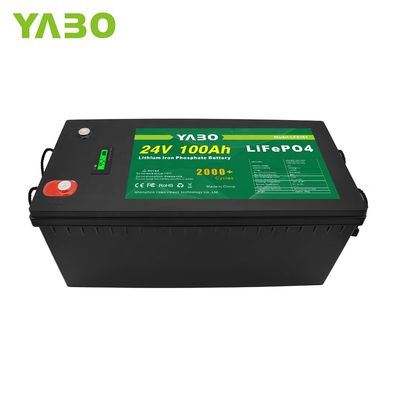

24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 6

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 7
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 8

The company mainly engages in R&D, production and sales of rechargeable source system solutions in various fields.The company has been engaged in the development of lithium ion battery for more

than 10 years, a master's degree in deep research and development, and a batch of specialized technical talents from domestic institutions of higher leaming.



Product specifications complete, excellent performance, safe and reliable, various indicators have reached the national test battery

specification requirements, and has passed the relevant statutory authority at home and abroad security and performance testing, products are mainly sold to domestic market as well as North America, South America, Europe, Japan, southeast Asia and other markets.



The company has the professional quality supervision team, the complete testing system and the perfect, the system, the scientific operation flow. From the battery's incoming material,production, shipment, service and other links strictly control, following the ISO9001:2000 system requirements specification, guarantee product quality. And passed the ISO9001:2000, CE,IS014001:2004, RoHS, UL and other certifications.



Certifications
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 9
Packaging & Shipping
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 10
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 11
24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah 12
FAQ


FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A: We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A: 3 year warranty.

Want to Know more details about this product
I am interested in 24v 100ah Lithium Lifepo4 Battery Safety 120Ah 150Ah 180Ah could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
