32750 RV Lifepo4 Battery Pack 12v 24v 10Ah 20Ah 30Ah 50Ah 100Ah 200Ah
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Yabopower |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Model Number: | LF8160 LCD 24V 52.8Ah |
Payment & Shipping Terms:
| Price: | $200.00 - $270.00/pieces |
|---|---|
| Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3years | Application: | BOATS, Golf Carts, Electric Vehicles, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting, UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle |
|---|---|---|---|
| Weight: | 20KG | Product Name: | 25.6V 52.8Ah |
| Cycle Life: | 2000 Times | Dimension: | 328*216*172mm |
| Category: | Rechargeable Batteries | Warranty Time: | 12 Moths |
| Samples Time: | 2 Weeks | Lead Time: | 1 Month After Order Confirmation |
| OEM/ODM: | Warmly Welcomed | Terminal: | 5521female Input/output Port |
| Port: | Shenzhen Or Hongkong | ||
| High Light: | 32750 RV Lifepo4 Battery,32750 lifepo4 battery 12v 10ah,32750 24v 10ah lifepo4 battery pack |
||
Product Description
Our 12V 24v LiFePO4 battery pack supports 4 series, multiple parallel; 24V LiFePO4 battery pack supports 2 series, multiple parallel; 48V LiFePO4 battery does not support series, can support multiple parallel expansion.
We provide the full services of customized battery products, including battery design, development, selection cells, and BMS,Charger.For more information,please contact us now
|
Electrical
Characteristics |
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
52.8Ah@0.2C
|
|
|
Energy
|
1351.68Wh
|
|
|
Internal Resistance
|
≤55mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
28.0~29.2V
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).
|
|
|
Charging Current
|
3A
|
|
|
Max.Charging Current
|
6A
|
|
Standard Discharging
|
Discharging Current
|
3A
|
|
|
Max. Continuous Current
|
6A
|
|
|
Max.Pulse Current
|
12A(<3S)
|
|
|
Discharging Cut-off Voltage
|
20.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Structure
|
Cell & Format
|
26650-3300mAh,8S16P
|
|
|
Casing
|
Plastic
|
|
|

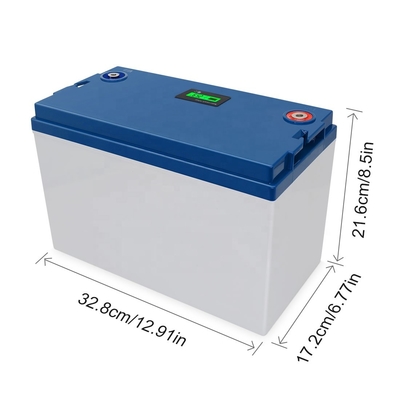

Dimension(L*W*H*TH)
|
328*216*172
|
|
|
Weight
|
Approx. 20Kg
|
|
|
Terminal
|
5521female input/output port
|
why choose us?
1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .
2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .
3. Wider Temperature Range : 20°C-60°℃ .
4. Support 4pcs 12V Batteries Connect In Series To Get48V .

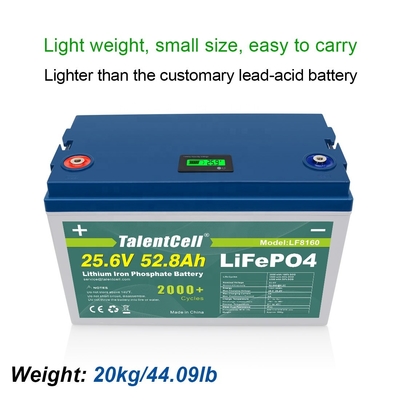

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

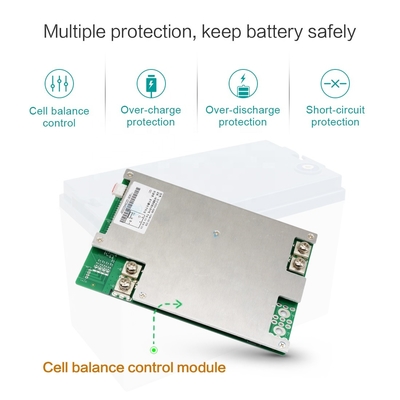

6. Balancing BMS with balancing function .
YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality,reducing carbon emissions and bringing green new energy to the world.
YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS, Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medical equipment, solar energy storage systems, backup power systems and electric vehicles. Our batteries have passed ISO9001, CE, RoHS, CB, REACH, FCC, UN38.3 and UL certification.
As a leading worldwide supplier, YABO power current distribution network includes China, Hong Kong, North America, Europe, South America, Southeast Asia and Korea. Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy density of 300wh per kg, long cycle life exceed 2,000 cycles-, wide temperature work range from -20℃~60℃. Currently we are the only supplier of ultra-high power.We believe that our reliable quality products and strong relationships with consumers is the key to our success. Top technology, Top quality, Top service which is always our aim. With great enthusiasm and loyalty, we are willing to provide you with perfect services, and work together with you to create a better future.
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8. How about warranty?
A:3 year warranty.
