24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle

24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle

Product Details:

Place of Origin: Guangdong, China
Brand Name: Yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: LF8160 LCD 24V 52.8Ah

Payment & Shipping Terms:

Price: $230.00 - $270.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 3years Application: BOATS, Golf Carts, Electric Vehicles, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting, UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle
Weight: 20KG Product Name: 25.6V 52.8Ah
Cycle Life: 2000 Times Dimension: 328*216*172mm
Category: Rechargeable Batteries Warranty Time: 12 Moths
Samples Time: 2 Weeks Lead Time: 1 Month After Order Confirmation
OEM/ODM: Warmly Welcomed Terminal: 5521female Input/output Port
Port: Shenzhen Or Hongkong
High Light:

Golf Cart RV Lifepo4 Battery

,

RV Lifepo4 Battery 24v 20ah

,

RV Lifepo4 Battery 24v 50ah

Product Description

 Customized Solar Energy Storage Systems Lithium Ion Lifepo4 Golf Cart Battery, 24v 20ah 50ah Lifepo4 Battery
Product Description

LiFePO4 Quick Answers
Is LiFePO4 the same as lithium ion?
Not at all! The LiFePO4 battery has a cycle life of over 4x that of lithium ion polymer batteries.

Are LiFePO4 batteries good?
Well, for starters, LiFePO4 batteries are incredibly efficient compared to traditional batteries. Not only that, they’re super-light and you can use most of your battery’s capacity without any problems. (You can only use roughly 50% with lead acid batteries. After that, the battery gets damaged.) So overall, yes, very much so – LiFePO4 batteries are great.



Electrical
Characteristics
Nominal Voltage
25.6V

Nominal Capacity
52.8Ah@0.2C

Energy
1351.68Wh

Internal Resistance
≤55mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
28.0~29.2V

Charging Mode
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).

Charging Current
3A

Max.Charging Current
6A
Standard Discharging
Discharging Current
3A

Max. Continuous Current
6A

Max.Pulse Current
12A(<3S)

Discharging Cut-off Voltage
20.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
26650-3300mAh,8S16P

Casing
Plastic

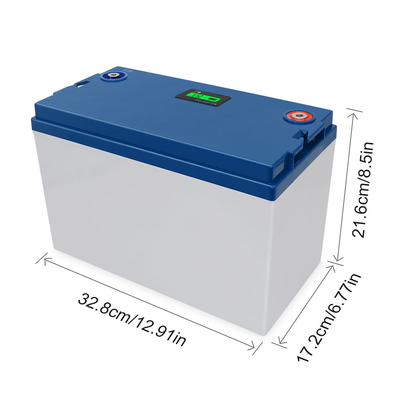

Dimension(L*W*H*TH)
328*216*172

Weight
Approx. 20Kg

Terminal
5521female input/output port
Details Images

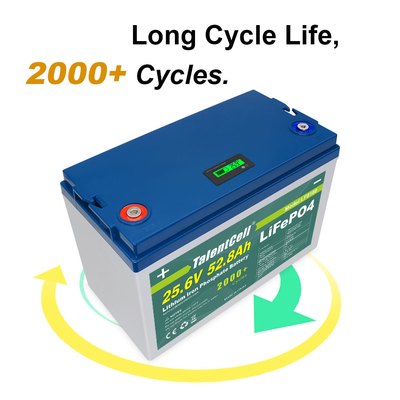

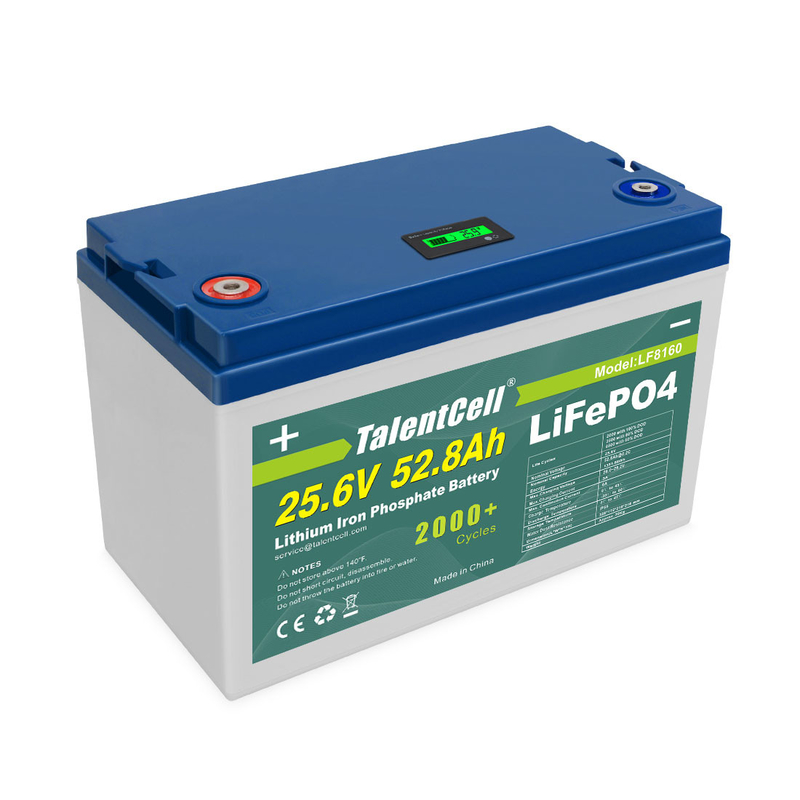

24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 0
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 1
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 2
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 3
Test Chart
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 4

Features

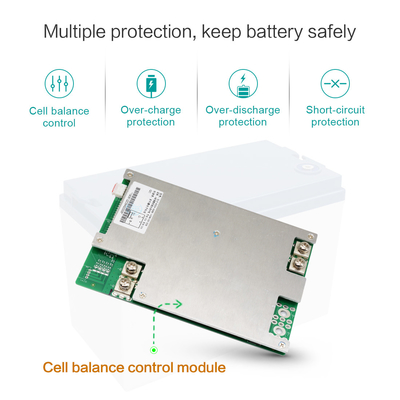

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions. ◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature. ◆ Free of maintenance . ◆ Internal cell balancing. ◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery. ◆ Can be charged using most standard lead-acid charges (set). ◆ Wider temperature range:-20℃~60℃. ◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 5
Product Advantage
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 6

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

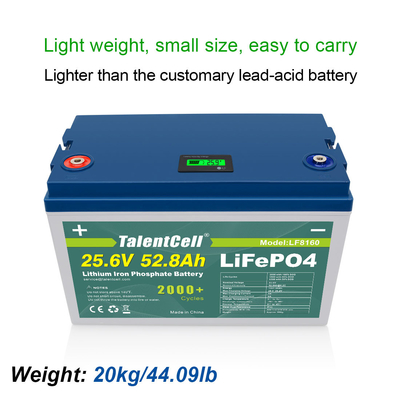

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 7
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 8

YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality,reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS, Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medical equipment, solar energy storage systems, backup power systems and electric vehicles. Our batteries have passed ISO9001, CE, RoHS, CB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China, Hong Kong, North America, Europe, South America, Southeast Asia and Korea. Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy density of 300wh per kg, long cycle life exceed 2,000 cycles-, wide temperature work range from -20℃~60℃. Currently we are the only supplier of ultra-high power.We believe that our reliable quality products and strong relationships with consumers is the key to our success. Top technology, Top quality, Top service which is always our aim. With great enthusiasm and loyalty, we are willing to provide you with perfect services, and work together with you to create a better future.



Product packaging
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 9
24v 20ah 50ah Golf Cart RV Lifepo4 Battery For Electric Vehicle 10
