Product Details:

Place of Origin: Guangdong, China
Brand Name: yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF51100 48v 100Ah

Payment & Shipping Terms:

Price: $483.00 - $897.75/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Nominal Voltage: 51.2Volts Nominal Capacity: 100Ah
Energe: 5120Wh Cycle Life: 2000 Cycles
Charging Current: 100A Water Dust Resistance: IP54
Cell&Format: 32700(16S8P) Casing: Metal
Discharge Cut-off Voltage: 40.0v Display: LCD
Warranty: 3years Application: BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage Systems, UPS,Solar&Wind Power System,E-Bike,E-rickshaw
Battery Size: GSP34135124F Weight: 48kg
Port: Shenzhen Or Hongkong
High Light:

10kw UPS Lifepo4 Battery

,

100ah 48v UPS Lifepo4 Battery

,

100ah lifepo4 lithium battery

Product Description

UPS Electric Power Systems Lifepo4 50ah 100ah 48v 10kw Lifepo4 Battery

Specification

A LiFePO4 Battery for Every Application

LiFePO4 technology has proven beneficial for a wide variety of applications. Here’s a few of them:

Fishing boats and kayaks: Less charging time and longer runtime means more time out on the water. Less weight allows for easy maneuvering and a speed boost during that high-stakes fishing competition.
Mopeds and mobility scooters: No dead weight to slow you down. Charge to less than full capacity for impromptu trips without damaging your battery.
Solar setups: Haul lightweight LiFePO4 batteries wherever life takes you (even if it’s up a mountain and far from the grid) and harness the power of the sun.
Commercial use: These batteries are the safest, toughest lithium batteries out there. So they’re great for industrial applications like floor machines, liftgates, and more.
Much more: In addition, lithium iron phosphate batteries power many other things. For example – flashlights, electronic cigarettes, radio equipment, emergency lighting and much more.



Electrical
Characteristics
Nominal Voltage
51.2V

Nominal Capacity
100Ah@0.2C

Energy
5120Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
100A

Max.Charging Current
100A
Standard Discharging
Discharging Current
100A

Max. Continuous Current
100A

Max.Pulse Current
110A(<10S)

Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP54
Structure
Cell & Format
32700(16S8P)

Casing
Mental

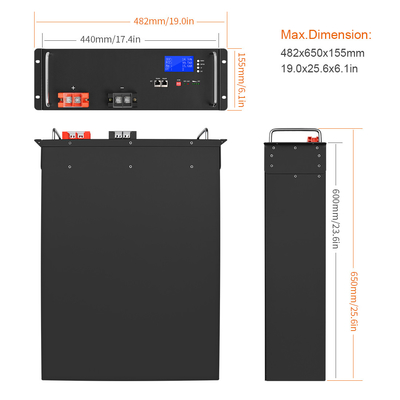

Dimension(L*W*H*TH)
482*650*155mm (3.5u)

Weight
Approx.48Kg

Display
LCD
Details Images
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 0
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 1
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 2
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 3
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 4

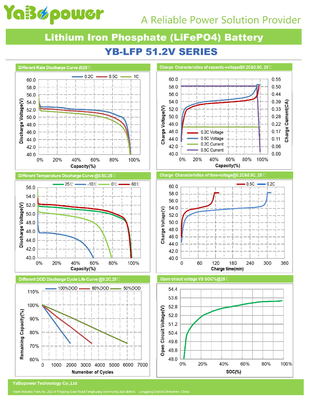

Test Chart
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 5
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 6
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us
50ah 100ah 48v 10kw UPS Lifepo4 Battery Ups Lithium Battery Electric Power Systems 7

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .
