Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage

Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage

Product Details:

Place of Origin: Guangdong, China
Brand Name: yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF51200 48v 200Ah

Payment & Shipping Terms:

Price: $855.00 - $1,728.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Nominal Voltage: 51.2Volts Nominal Capacity: 200Ah
Energe: 10240Wh Cycle Life: 2000 Cycles
Charging Current: 200A Water Dust Resistance: IP54
Cell&Format: LFP34K0K8 34200204 Casing: Mental
Discharge Cut-off Voltage: 40.0v Display: LCD
Warranty: 3years Application: BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage Systems, UPS,Solar&Wind Power System,E-Bike,E-rickshaw
Weight: 81kg Port: Shenzhen Or Hongkong
High Light:

lifepo4 ups diy

,

Lifepo4 Ups Battery Lithium Ion

,

ups battery lifepo4

Product Description


Factory System Solar Energy Storage 10kwh Power 48v 50ah 100ah 150ah 200ah Lifepo4


Specification

LiFePO4 Batteries vs. Non-Lithium Batteries
When it comes to LiFePO4 vs lithium ion, LiFePO4 is the clear winner. But how do LiFePO4 batteries compare to other rechargeable batteries on the market today?

Lead Acid Batteries
Lead acid batteries may be a bargain at first, but they’ll end up costing you more in the long run. That’s because they need constant maintenance, and you must replace them more often. A LiFePO4 battery will last 2-4x longer, with zero upkeep needed.

Gel Batteries
Like LiFePO4 batteries, gel batteries don’t need frequent recharging. They also won’t lose charge while stored. Where do gel and LiFePO4 differ? A big factor is the charging process. Gel batteries charge at a snail’s pace. Also, you must disconnect them when 100% charged to avoid ruining them.

AGM Batteries
AGM batteries will do plenty of damage to your wallet, and are at high risk for becoming damaged themselves if you drain them past 50% battery capacity. Maintaining them can be difficult as well. LiFePO4 Ionic lithium batteries can be discharged completely with no risk of damage.



Electrical
Characteristics
Nominal Voltage
48V

Nominal Capacity
200Ah@0.2C

Energy
10240Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
200A

Max.Charging Current
200A
Standard Discharging
Discharging Current
200A

Max. Continuous Current
200A

Max.Pulse Current
210A(<10S)

Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP54
Structure
Cell & Format
LFP54H4K1 54174201

Casing
Mental

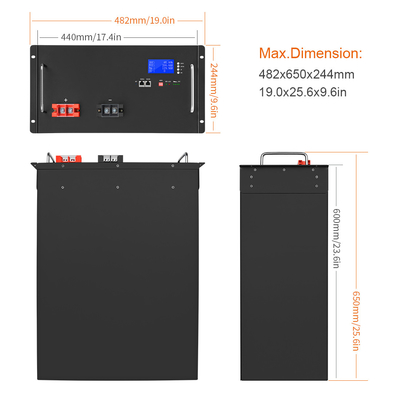

Dimension(L*W*H*TH)
482*650*244mm

Weight
Approx.81Kg

Display
LCD
Details Images

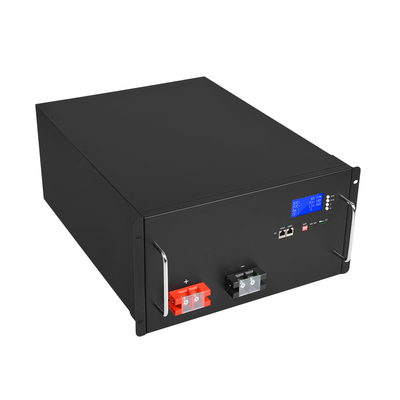

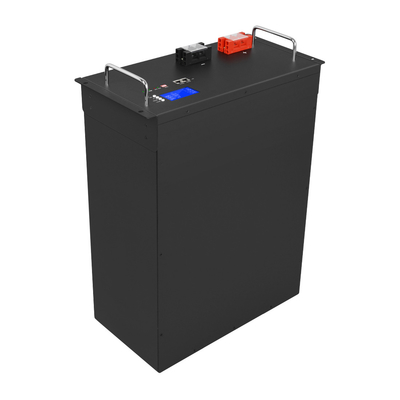

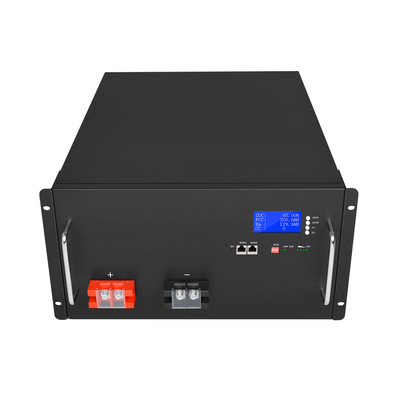

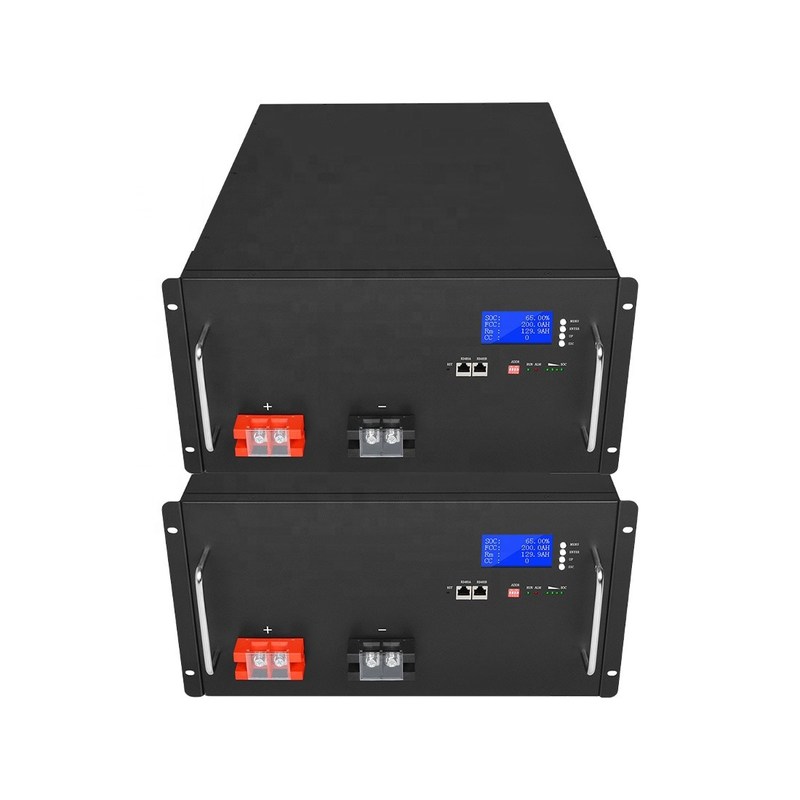

Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 0
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 1
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 2
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 3
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 4
Test Chart
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 5
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application

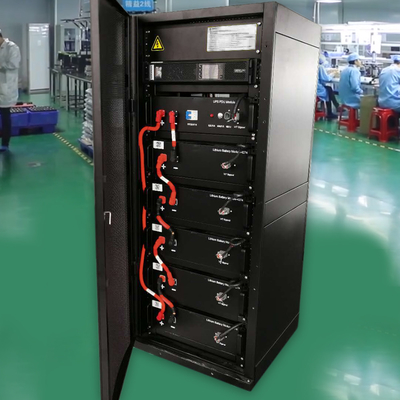

Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 6
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 7

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 8
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 9

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.





Certifications
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 10
Packaging & Shipping
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 11
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 12
Diy Lifepo4 Ups Battery Lithium Ion 10kwh 48v 50ah 100ah 150ah 200ah Solar Energy Storage 13
FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A:3 year warranty.
