Product Details:

Place of Origin: Guangdong, China
Brand Name: yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF51050 48v 50Ah

Payment & Shipping Terms:

Price: $483.00 - $897.75/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Nominal Voltage: 51.2Volts Nominal Capacity: 50Ah
Energe: 2560Wh Cycle Life: 2000 Cycles
Charging Current: 50A Water Dust Resistance: IP55
Cell&Format: 32700(16S8P) Casing: Metal
Discharge Cut-off Voltage: 40.0v Display: LCD
Warranty: 3years Application: BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage Systems, UPS,Solar&Wind Power System,E-Bike,E-rickshaw
Battery Size: 32700 Weight: 33kg
Port: Shenzhen Or Hongkong
High Light:

e bike lifepo4 battery pack

,

48v 25ah lifepo4 battery

,

lipo 48v 20ah

Product Description

China Lithium-Ion Battery Price 48v 20ah 25ah 40ah 50ah Lifepo4 Electric Bicycle Lifepo4 Battery Pack

Specification

Small and Lightweight
Many factors weigh in to make LiFePO4 batteries better. Speaking of weighing–they are total lightweights. In fact, they’re almost 50% lighter than lithium manganese oxide batteries. They weigh up to 70% lighter than lead acid batteries.

When you use your LiFePO4 battery in a vehicle, this translates to less gas usage, and more maneuverability. They are also compact, freeing up space on your scooter, boat, RV, or industrial application.



Electrical
Characteristics
Nominal Voltage
51.2V

Nominal Capacity
50Ah@0.2C

Energy
2560Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
50A

Max.Charging Current
50A
Standard Discharging
Discharging Current
50A

Max. Continuous Current
50A

Max.Pulse Current
60A(<10S)

Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP54
Structure
Cell & Format
32700(16S8P)

Casing
Mental

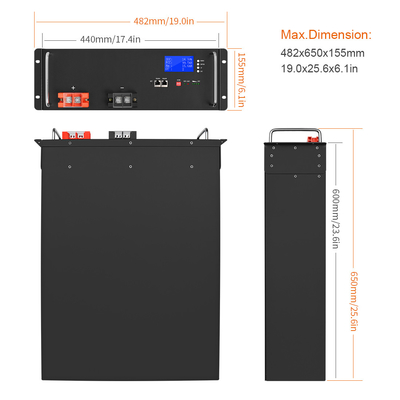

Dimension(L*W*H*TH)
482*650*155mm (3.5u)

Weight
Approx.33Kg

Display
LCD

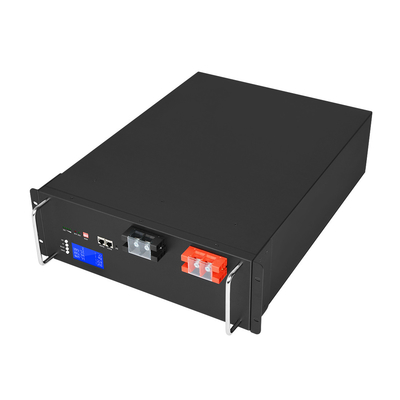

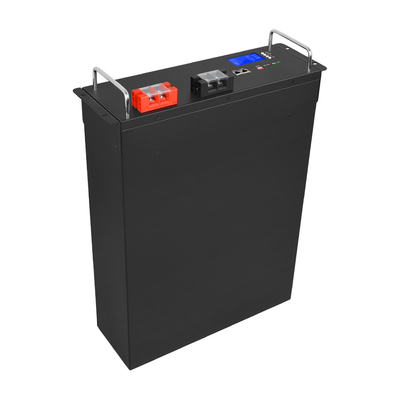

Details Images
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 0
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 1
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 2
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 3
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 4
Test Chart
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 5
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 6
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us
E Bike Electric Bicycle Lifepo4 Battery Pack 48v 20ah 25ah 40ah 50ah Lithium Ion 7

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .
