Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah

Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah

Product Details:

Place of Origin: Guangdong, China
Brand Name: YABO
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF51200 48V 200Ah

Payment & Shipping Terms:

Price: $2,493.00/pieces 1-49 pieces
Packaging Details: 1. We usually use the carton for packing.<br>2.As customer requirements packing.
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 5years Anode Material: LFP
Chargeable: Yes Application: BOATS, Golf Carts, SUBMARINES, Electric Power Systems, Solar Energy Storage Systems, UPS, Solar & Wind Power System
Battery Size: 5.5U Weight: Approx. 78Kg
The Charging Ratio: 200A The Discharge Rate: 200A
Product Name: 48V 200Ah Lithium Iron Phosphate (LiFePO4) Battery Case: Sheet Metal
Energy: 10240Wh Internal Resistance: ≤35mΩ
Cycle Life: 4000-6000 Cycles Self Discharge: ≤3.5% Per Month At 25℃
Cell & Format: 16S1P OEM/ODM: Accepatable
Battery Type: Lifepo4/lithium Battery Size: 82.6*614.5*244mm
Port: Shenzhen/HK
High Light:

10kw Rechargeable Lithium Battery

,

200Ah Lifepo4 Battery

Product Description

Product Description
Electrical
Characteristics
Nominal Voltage
51.2V

Nominal Capacity
200Ah@0.2C

Energy
10240Wh

Internal Resistance
≤35mΩ

Cycle Life
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2

Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C

Charging Current
200A

Max.Charging Current
200A
Standard Discharging
Discharging Current
200A

Max. Continuous Current
200A

Max.Pulse Current
210A(10S) Can be set up

Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP54
Structure
Cell & Format
16S1P

Casing
Metal

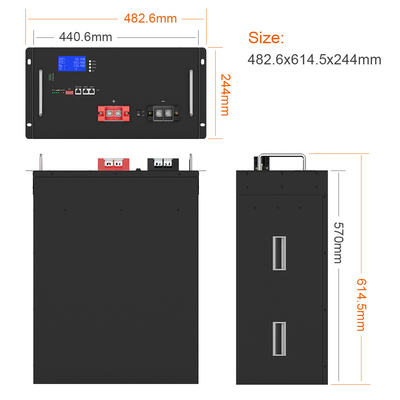

Max.Dimension (L*W*H)
82.6*614.5*244mm(5.5U)

Weight
Approx.78Kg

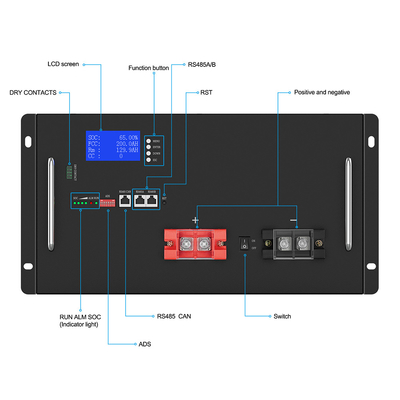

Communication Interface
CAN or RS485

Display
LCD
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 0
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 1
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 2
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 3
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 4
Chart
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 5
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.

◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 6
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Recommend Products

Company Profile
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 7
Certifications
Solar Energy 5kw 10kw Rechargeable Lithium Battery Pack 48V Power Station Lifepo4 200Ah 8
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:1 year warranty
Contact us for more details about Price, Packing, Shipping and Discount.
