200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3

200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3

Product Details:

Place of Origin: Guangdong, China
Brand Name: Yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: LF8010 25.6V 200Ah

Payment & Shipping Terms:

Price: $470.00 - $876.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Product Name: 25.6v 200Ah Cycle Life: 2000 Times
Dimension: 522*238*217*217mm Application: UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle, Golf Carts, Solar Energy Storage Systems, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting
Category: Rechargeable Batteries Warranty Time: 12 Moths
Samples Time: 2 Weeks Lead Time: 1 Month After Order Confirmation
OEM/ODM: Warmly Welcomed Terminal: M8
Warranty: 3years Weight: 31KG
Port: Shenzhen Or Hongkong
High Light:

200Ah 24V Lifepo4 Battery

,

24V Lifepo4 Battery For Solar Storage

,

electric bicycle lifepo4 battery

Product Description

 CE ROHS UN38.3 Electric Cycle 24v Lithium Iron Phosphate Rechargeable Battery Lithium Ion For Solar System

Product Description

Long cycle life
Using high quality lifepo4 cell, the cycle life is
more than 5000 times.
In the limit safety performance test, the battery
does not fire, does not explode, does not leak
liquid, uses more safely.
Multiple communication
Support RS485 and other communication protocols,
battery management and maintenance more efficient.
High quality lifepo4 cell
Compared with traditional lead -acid battery, it
has higher energy density and cycle life,
superior electrical performance, safety and
environmental protection.





Electrical Characteristics
Nominal Voltage
25.6V

Nominal Capacity
200Ah@0.2C

Energy
5120Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃




Standard Charging
Max.Charging Voltage
28.0~29.2V



Charging Mode
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).

Charging Current
20A

Max.Charging Current
35A



Standard Discharging
Discharging Current
20A

Max. Continuous Current
35A

Max.Pulse Current
70A(<3S)

Discharging Cut-off Voltage
20.0




Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55



Structure
Cell & Format
GSP4017320,8S1P

Casing
Plastic

Dimension(L*W*H*TH)
522*238*217*217

Weight
Approx. 31Kg

Terminal
M8

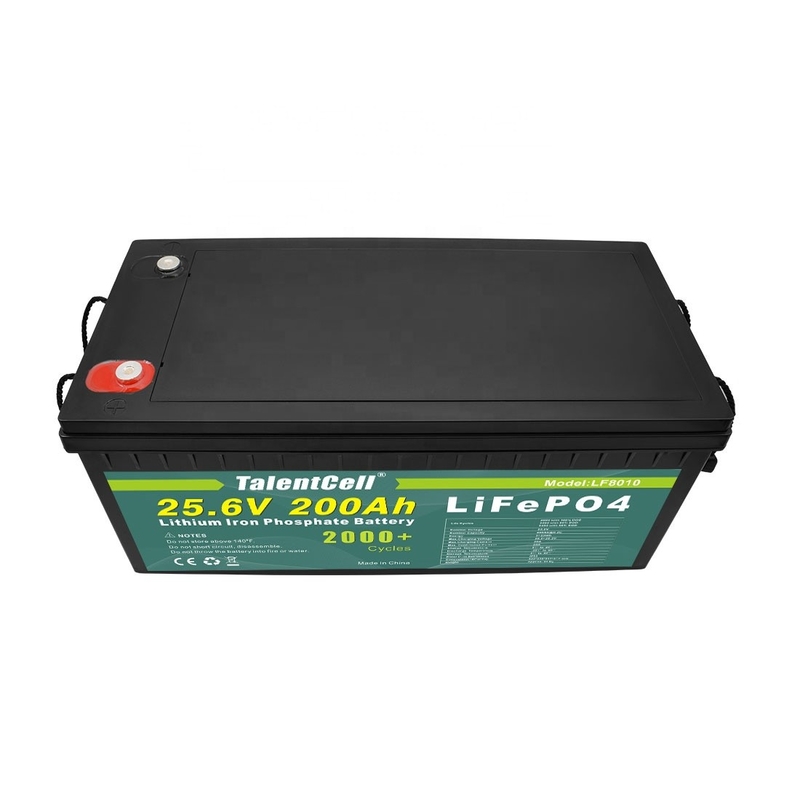

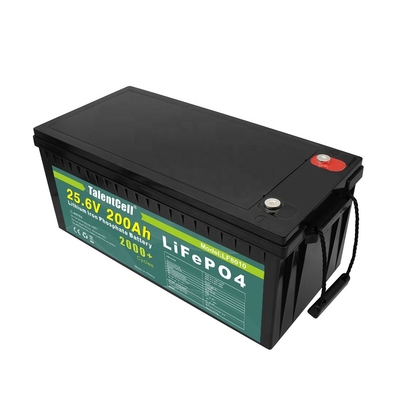

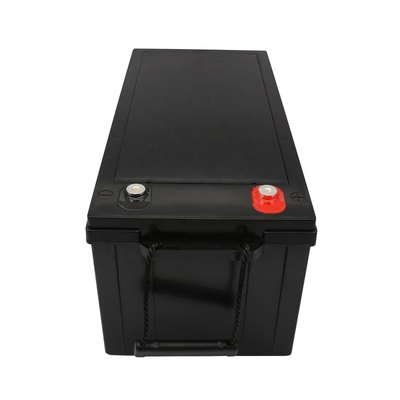

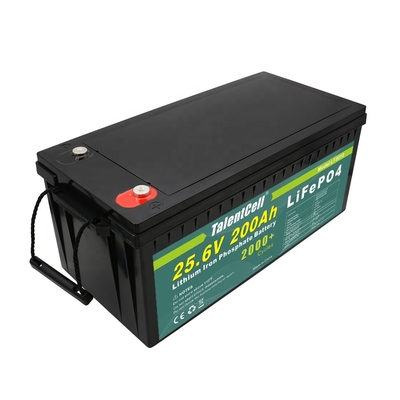

Details Images
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 0
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 1
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 2
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 3
Test Chart
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 4

Features

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 5
Product Advantage
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 6

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 7
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 8

YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality,reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS, Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medical equipment, solar energy storage systems, backup power systems and electric vehicles. Our batteries have passed ISO9001, CE, RoHS, CB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China, Hong Kong, North America, Europe, South America, Southeast Asia and Korea. Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy density of 300wh per kg, long cycle life exceed 2,000 cycles-, wide temperature work range from -20℃~60℃. Currently we are the only supplier of ultra-high power.We believe that our reliable quality products and strong relationships with consumers is the key to our success. Top technology, Top quality, Top service which is always our aim. With great enthusiasm and loyalty, we are willing to provide you with perfect services, and work together with you to create a better future.



Product packaging
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 9
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 10
200Ah 24V Lifepo4 Battery For Solar Storage Electric Bicycle CE ROHS UN38.3 11


FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A:3 year warranty.
