25.6V 26.4Ah 24V Lifepo4 Battery Cycle Life Long Rechargeable
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Yabopowerl |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Model Number: | YB-LF8080 24V 26.4Ah |
Payment & Shipping Terms:
| Price: | $85.00 - $275.00/pieces |
|---|---|
| Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3years | Application: | Home Appliances, Golf Carts, SUBMARINES, Solar Power System, CCTV,IP Camera, Router, Amplifier Etc., UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle |
|---|---|---|---|
| Weight: | 10KG | Product Name: | 25.6V 26.4Ah |
| Cycle Life: | 2000 Times | Dimension: | 300*230*95mm |
| Category: | Rechargeable Batteries | OEM/ODM: | Warmly Welcomed |
| Battery Type: | Lifepo4 Battery | Port: | Shenzhen Or Hongkong |
| High Light: | 26.4Ah 24V Lifepo4 Battery,24V Lifepo4 Battery Cycle Life Long,24V Lifepo4 Battery |
||
Product Description

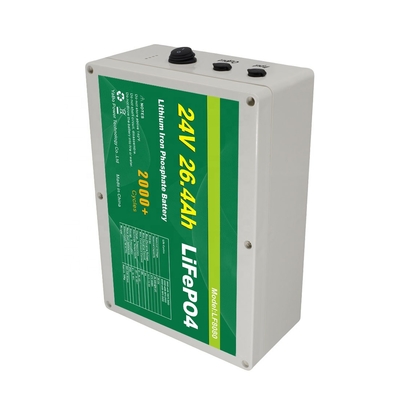

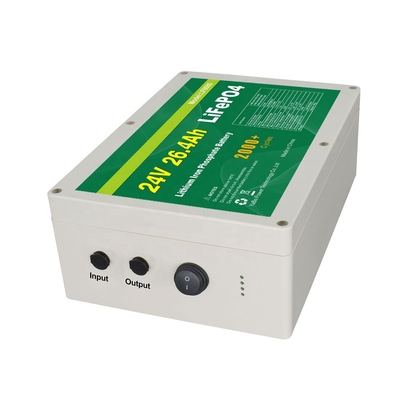

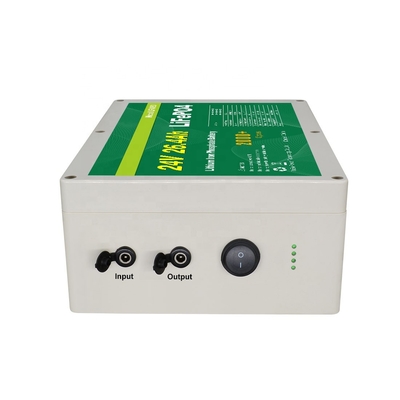

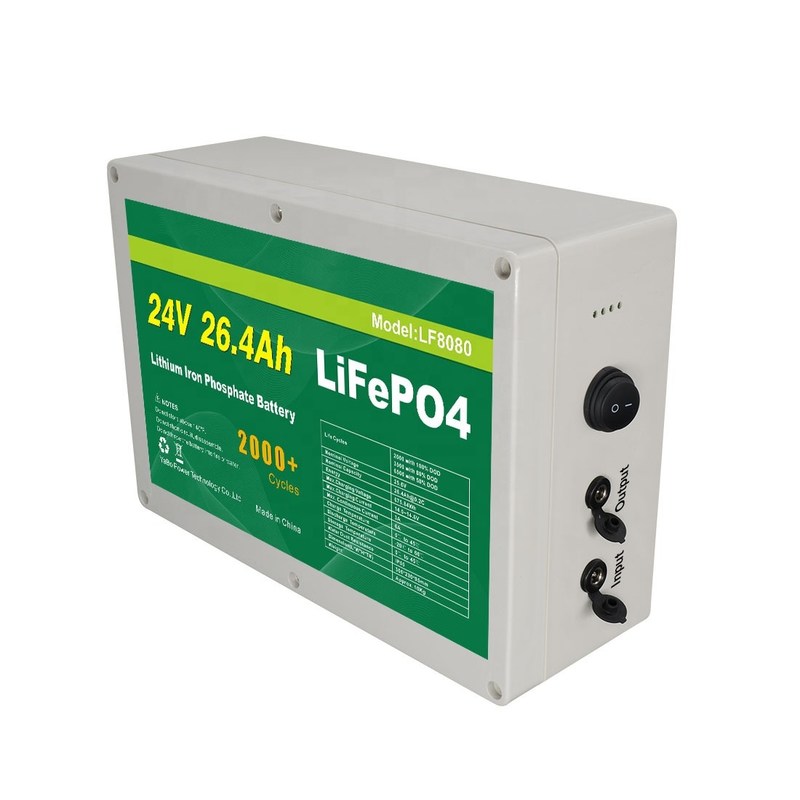

High Capacity Deep Cycle 25.6V 26.4Ah LiFePO4 24v Rechargeable Batteries
Why Choose LiFePo4 Batteries Rather Than Lead-Acid Batteries?
1. Longer battery life – 3000 times life cycle @60%DOD, 5 times more than lead acid batteries
2. Low self-discharge <3.5% per months
3. Free of charge memory
4. Steady discharge and charge performance.
5. Outstanding thermal stability
6. Wide temperature performance
7. Short circuit protection
8. Over charge and over discharge protection
9. Over current protection
10. Easy carrying and installation - can be carried and installed in any direction
11. Fast charging - about 4~6 hours to be fully charged
12. Lighter weight - 1/2~1/4 in weight compared to lead acid batteries
13. Require no change to a lead acid battery charging system
14. Better safety - mild warm, no explosion and firing, free of leakage
15. Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals
16. No gasses during charge, free of leakage and pollution
|
|
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
26.4Ah@0.2C
|
|
|
Energy
|
675.84Wh
|
|
|
Internal Resistance
|
≤55mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
|
Max.Charging Voltage
|
28.0~29.2V
|
|
|
|
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).
|
|
|
Charging Current
|
3A
|
|
|
Max.Charging Current
|
6A
|
|
|
Discharging Current
|
3A
|
|
|
Max. Continuous Current
|
6A
|
|
|
Max.Pulse Current
|
12A(<3S)
|
|
|
Discharging Cut-off Voltage
|
20.0
|
|
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
|
Cell & Format
|
26650-3300mAh,8S8P
|
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
300*230*95
|
|
|
Weight
|
Approx. 10Kg
|
|
|
Terminal
|
5521female input/output port
|
Features
why choose us?
1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .
2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .
3. Wider Temperature Range : 20°C-60°℃ .
4. Support 4pcs 12V Batteries Connect In Series To Get48V .
5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .
6. Balancing BMS with balancing function .
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8. How about warranty?
A:3 year warranty.
