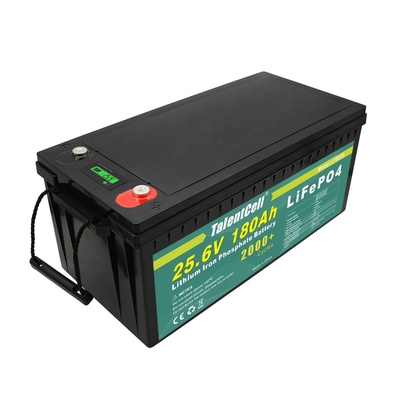

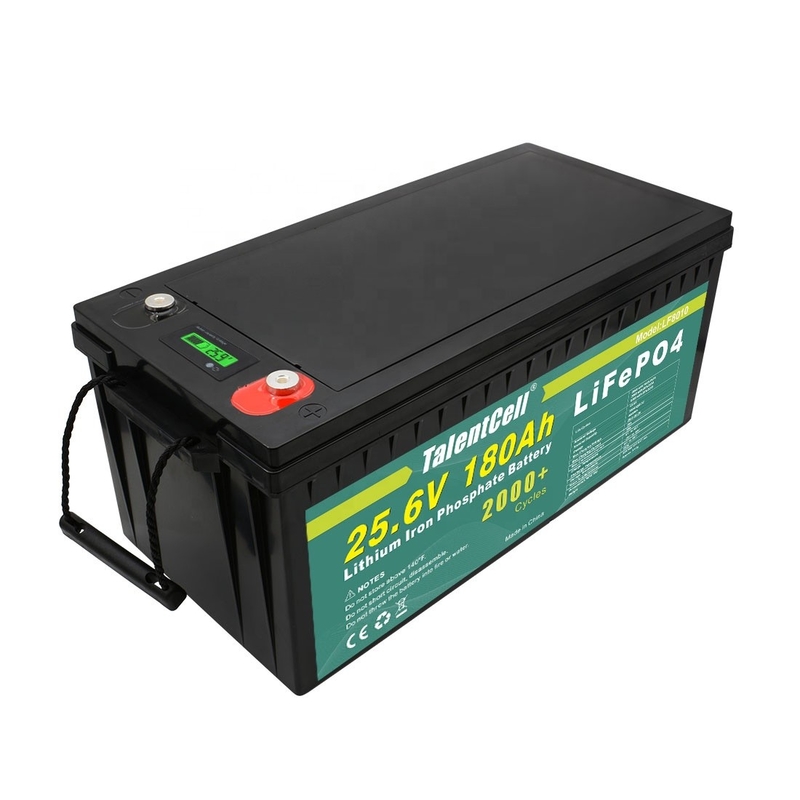

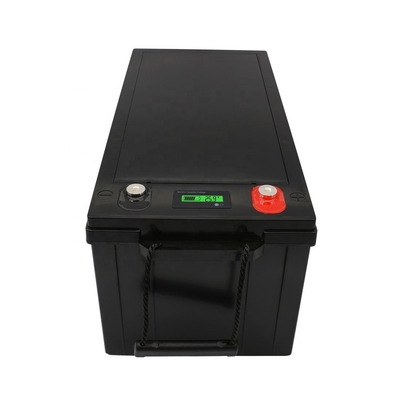

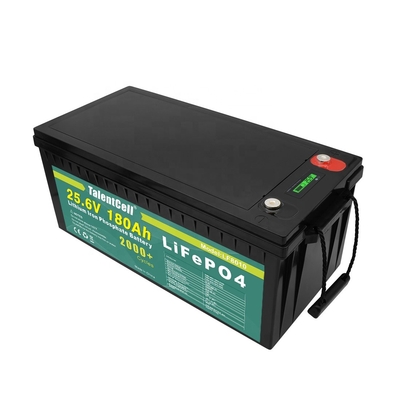

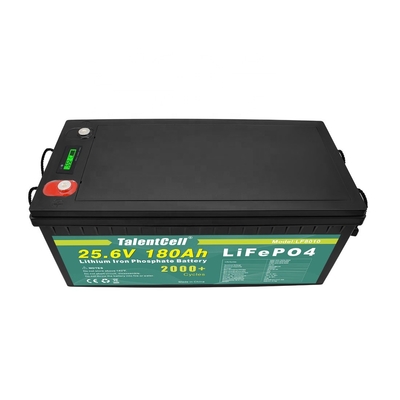

12v 24v 48v 200Ah 300Ah Lifepo4 Rechargeable Battery Pack 25.6V 180Ah
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | Yabopower |
Certification: | CE/IEC/RoHS/UN38.3/FCC |
Model Number: | LF8010 LCD 25.6V 180Ah |
Payment & Shipping Terms:
Price: | $779.80 - $875.00/pieces |
---|---|
Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
Supply Ability: | 100000 Piece/Pieces per Month |
Detail Information |
|||
Warranty: | 3years | Application: | Golf Carts, Electric Vehicles, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting, UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle |
---|---|---|---|
Weight: | 31KG | Product Name: | 25.6V 180Ah |
Cycle Life: | 2000 Times | Dimension: | 522*238*217*217mm |
Category: | Rechargeable Batteries | Warranty Time: | 12 Moths |
Samples Time: | 5 Days | Lead Time: | 7 Days |
OEM/ODM: | Warmly Welcomed | Terminal: | M8 |
Port: | Shenzhen Or Hongkong | ||
High Light: | 48v 200ah lifepo4 battery,180ah lifepo4 battery,300ah lifepo4 battery |
Product Description
Electrical
Characteristics |
Nominal Voltage
|
25.6V
|
|
Nominal Capacity
|
180Ah@0.2C
|
|
Energy
|
4608Wh
|
|
Internal Resistance
|
≤35mΩ
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
Standard Charging
|
Max.Charging Voltage
|
28.0~29.2V
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).
|
|
Charging Current
|
20A
|
|
Max.Charging Current
|
35A
|
Standard Discharging
|
Discharging Current
|
20A
|
|
Max. Continuous Current
|
35A
|
|
Max.Pulse Current
|
70A(<3S)
|
|
Discharging Cut-off Voltage
|
20.0
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Water Dust Resistance
|
IP55
|
Structure
|
Cell & Format
|
GSP4017320,8S1P
|
|
Casing
|
Plastic
|
|
Dimension(L*W*H*TH)
|
522*238*217*217
|
|
Weight
|
Approx. 31Kg
|
|
Terminal
|
M8
|




Features


why choose us?
1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .
2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .
3. Wider Temperature Range : 20°C-60°℃ .
4. Support 4pcs 12V Batteries Connect In Series To Get48V .
5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .
6. Balancing BMS with balancing function .




FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8. How about warranty?
A:3 year warranty.
