51.2.V Lifepo4 48v 100ah Battery Pack Solar Energy Storage Communication Base Station
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YaBopower |
| Certification: | CE/IEC/RoHS/FCC/UN38.3/MSDS |
| Model Number: | YB-LF51100 48v 100Ah |
Payment & Shipping Terms:
| Price: | $483.00 - $897.75/pieces |
|---|---|
| Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | 51.2V 100Ah (LiFePO4) Battery | Cycle Life: | 2000 Times |
|---|---|---|---|
| Dimension: | 482*650*155mm | Communication Interface: | RS485 (8P8C) |
| Application: | Home Energy Storage, RV, Tower Base Station, BOATS, Golf Carts, SUBMARINES, Solar Energy Storage Systems, Home Energy Storage, RV, Tower Base Station | Category: | Rechargeable Batteries |
| OEM/ODM: | Warmly Welcomed | Samples Time: | 7 DAYS |
| MOQ: | 1 Pcs | Warranty: | 3years |
| Weight: | Approx.48Kg | Port: | Shenzhen Or Hongkong |
| High Light: | lifepo4 48v 100ah battery,lifepo4 48v battery pack,48v 51.2.v 100ah lifepo4 |
||
Product Description
YaBopower Solar Energy Storage Communication Base Station LiFePO4 100Ah 48V Lithium Ion Battery
This 48V100Ah LFP battery system has built-in BMS and stainless steel box painted in black or white.
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life (more than3000 cycles at 80% DOD)
3. Bulit-in smart BMS with multiple protection and communication functions
4. Wide working temperature range and high reliability

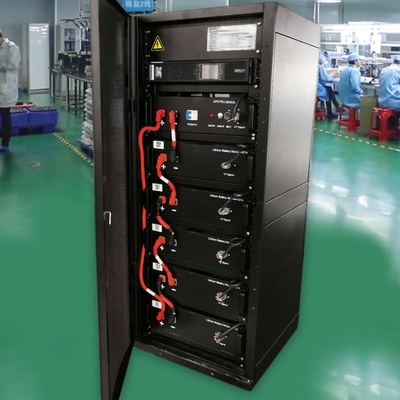

5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.
|
Electrical
Characteristics |
Nominal Voltage
|
51.2V
|
|
|
Nominal Capacity
|
100Ah@0.2C
|
|
|
Energy
|
5120Wh
|
|
|
Internal Resistance
|
≤35mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
58.4±0.2
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
|
|
|
Charging Current
|
100A
|
|
|
Max.Charging Current
|
100A
|
|
Standard Discharging
|
Discharging Current
|
100A
|
|
|
Max. Continuous Current
|
100A
|
|
|
Max.Pulse Current
|
110A(10S) Can be set up
|
|
|
Discharging Cut-off Voltage
|
40.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP54
|
|
Structure
|
Cell & Format
|
GSP34135214F (16S1P)
|
|
|
Casing
|
Metal
|
|
|

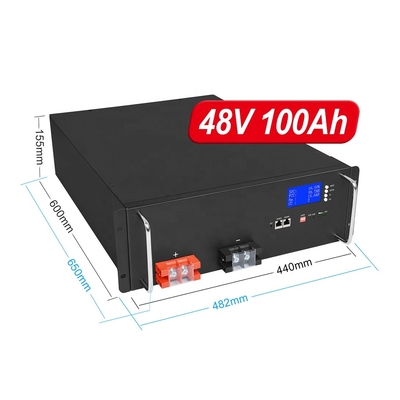

Max.Dimension (L*W*H)
|
482*650*155mm(3.5U)
|
|
|
Weight
|
Approx. 48Kg
|
|
|

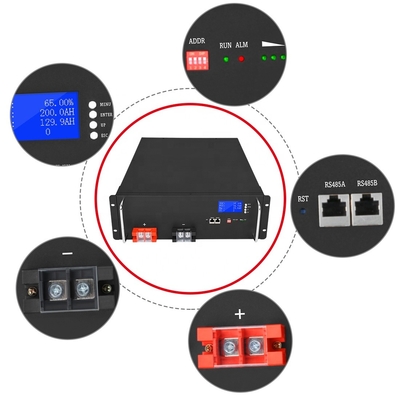

Communication Interface
|
RS485 (8P8C)
|
|
|
Display
|
LCD
|
