Diy Lifepo4 Ups Battery Solar Cycle 48v 100ah BMS UN38.3
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Yabopower |
| Certification: | CE/IEC/RoHS/UN38.3/MSDS/FCC |
| Model Number: | 48V 100Ah-waterproof |
Payment & Shipping Terms:
| Price: | $891.00 - $1,090.00/pieces |
|---|---|
| Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||

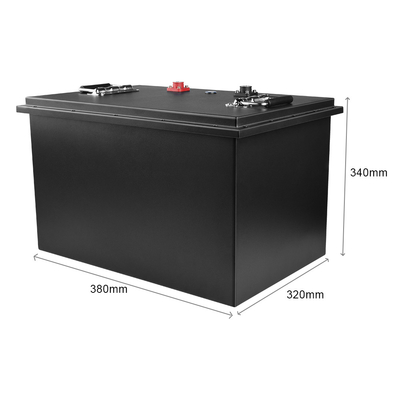

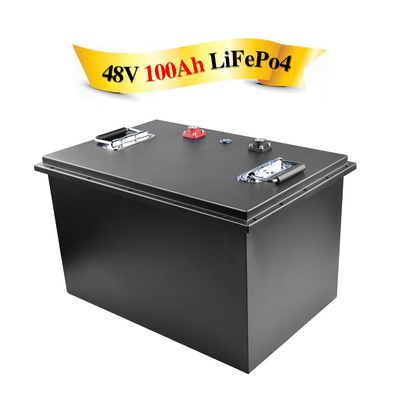

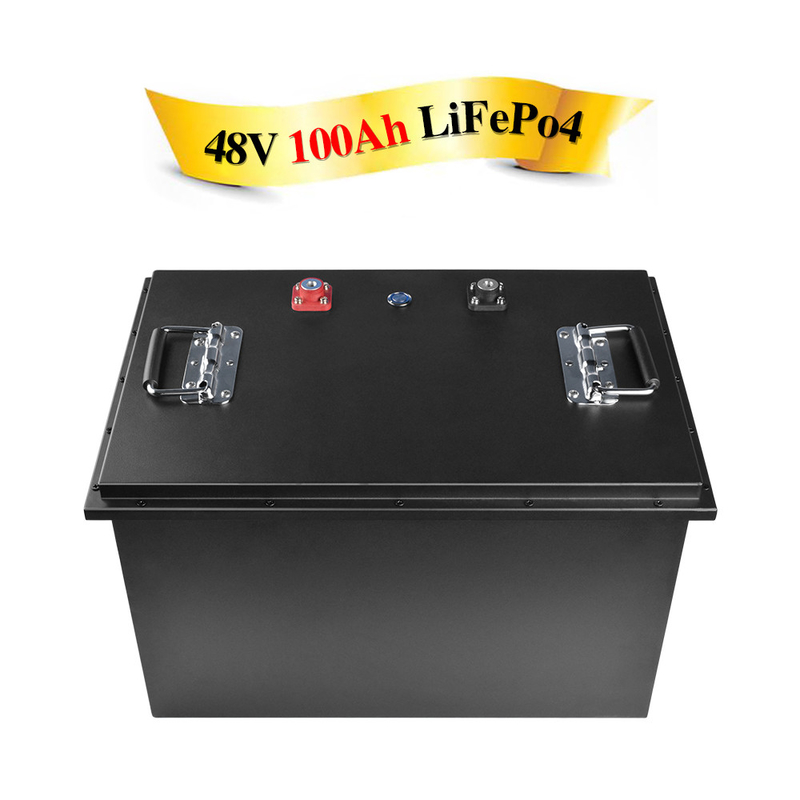

| Product Name: | 48V 100Ah LiFePO4 Battery | Size: | 380L*320W*340H |
|---|---|---|---|
| Casing: | Sheet Metal Case | Samples Time: | 7 Days |
| MOQ: | 1 Pcs | OEM/ODM: | Warmly Welcomed |
| Features 1: | Waterproof | Features 2: | BMS |
| Battery Cell: | 3.2v 100ah 16S1P | Terminal: | M8 |
| Warranty: | 3years | Application: | Solar Energy Storage Systems, UPS, Wind Power System,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting |
| Port: | Shenzhen Or Hongkong | ||
| Highlight: | Diy Lifepo4 Ups Battery UN38.3,lifepo4 ups diy,battery lifepo4 48v 100ah |
||
Product Description
|
Electrical
Characteristics |
Nominal Voltage
|
51.2V
|
|
|
Nominal Capacity
|
100Ah@0.2C
|
|
|
Energy
|
5120Wh
|
|
|
Internal Resistance
|
≤35mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
58.4±0.2
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not
more than 0.02C |
|
|
Charging Current
|
100A
|
|
|
Max.Charging Current
|
100A
|
|
Standard Discharging
|
Discharging Current
|
100A
|
|
|
Max. Continuous Current
|
100A
|
|
|
Max.Pulse Current
|
110A(10S) Can be set up
|
|
|
Discharging Cut-off Voltage
|
40.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP54
|
|
Structure
|
Cell & Format
|
3.2v 100ah (16S1P)
|
|
|

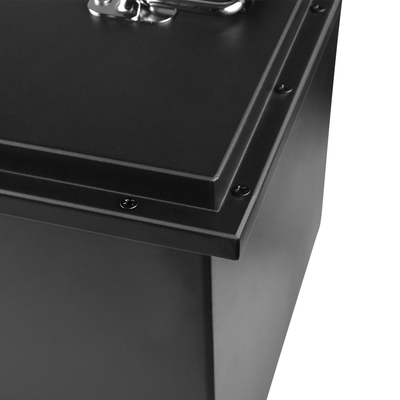

Casing
|
Sheet metal
|
Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.
YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.
As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8. How about warranty?
A:3 year warranty.
