Product Details:

Place of Origin: Guangdong, China
Brand Name: YaBo
Certification: ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Model Number: LF8080 24V 26.4Ah

Payment & Shipping Terms:

Price: $135.00 - $155.00/pieces
Packaging Details: 1. We usually use the carton for packing.<br>2.As customer requirements packing.
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 3years Anode Material: LFP
Chargeable: Yes Application: Home Appliances, Electric Power Systems, Solar Energy Storage Systems
Weight: Approx. 10Kg Cell & Format: 26650-3300mAh,8S8P
Dimension: 300*230*95 Energy: 675.84Wh
Cycle Life: 2000 Cycles Self Discharge: ≤3.5% Per Month At 25℃
Max.Charging Voltage: 28.0~29.2V Discharging Current: 3A
Max. Continuous Current: 6A Water Dust Resistance: IP55
Casing: Plastic Port: Shenzhen/HongKong
High Light:

26.4Ah 25.6v Lifepo4 Battery Pack

,

lifepo4 ups

,

lifepo4 battery 25.6v

Product Description

RoHS Certification Deep Cycle Lithium Ion Lifepo4 25.6V 26.4Ah Battery Pack For Solar Panel And UPS





Product Description
Electrical
Characteristics
Nominal Voltage
25.6V

Nominal Capacity
26.4Ah@0.2C

Energy
675.84Wh

Internal Resistance
≤55mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
28.0~29.2V

Charging Mode
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).

Charging Current
3A

Max.Charging Current
6A
Standard Discharging
Discharging Current
3A

Max. Continuous Current
6A

Max.Pulse Current
12A(<3S)

Discharging Cut-off Voltage
20.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
26650-3300mAh,8S8P

Casing
Plastic

Dimension(L*W*H*TH)
300*230*95

Weight
Approx. 10Kg

Terminal
5521female input/output port

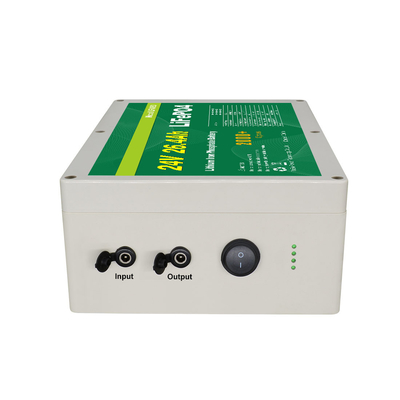

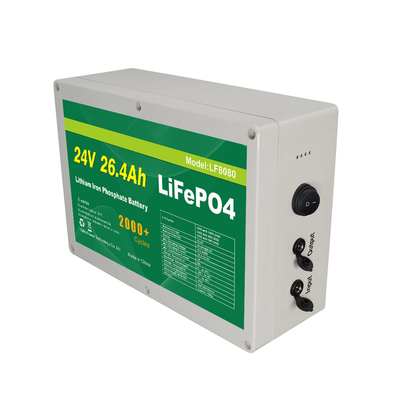

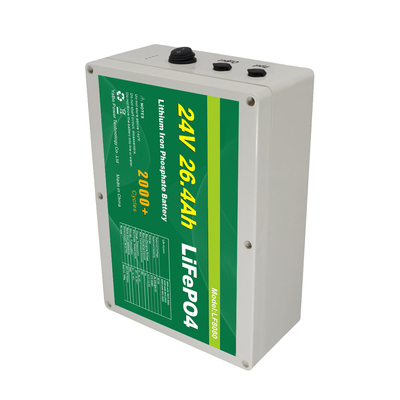

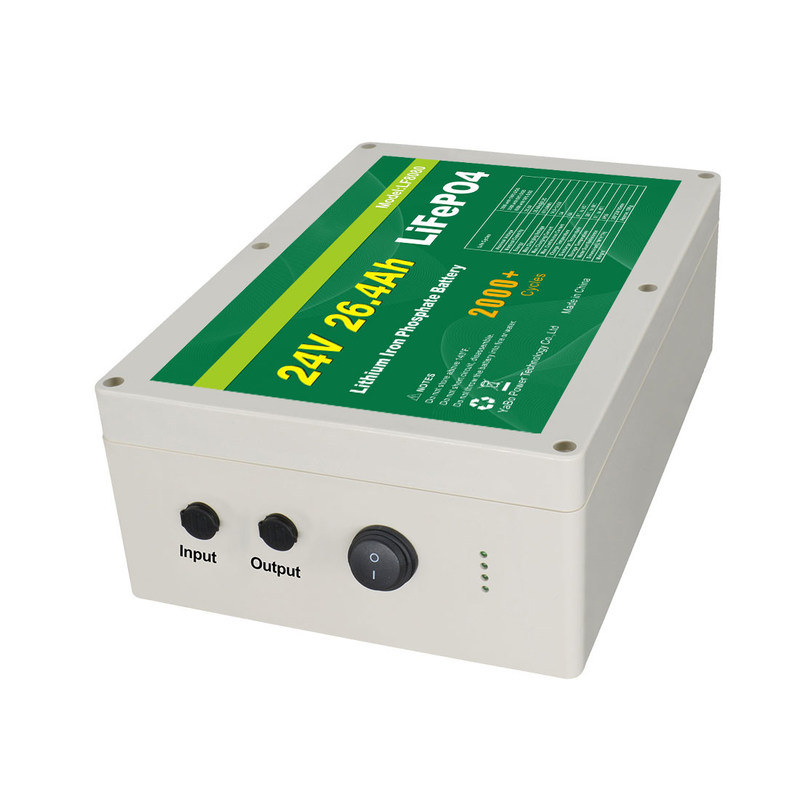

26.4Ah 25.6v Lifepo4 Battery Pack Deep Cycle For Solar Panel UPS Lithium Ion 0
26.4Ah 25.6v Lifepo4 Battery Pack Deep Cycle For Solar Panel UPS Lithium Ion 1
26.4Ah 25.6v Lifepo4 Battery Pack Deep Cycle For Solar Panel UPS Lithium Ion 2
26.4Ah 25.6v Lifepo4 Battery Pack Deep Cycle For Solar Panel UPS Lithium Ion 3
Features
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance
◆Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

Click here to get a free quotation!
Application
26.4Ah 25.6v Lifepo4 Battery Pack Deep Cycle For Solar Panel UPS Lithium Ion 4



Company Profile
26.4Ah 25.6v Lifepo4 Battery Pack Deep Cycle For Solar Panel UPS Lithium Ion 5

The company mainly engages in R&D, production and sales of rechargeable source system solutions in various fields.The company has been engaged in the development of lithium ion battery for more

than 10 years, a master's degree in deep research and development, and a batch of specialized technical talents from domestic institutions of higher leaming.



Product specifications complete, excellent performance, safe and reliable, various indicators have reached the national test battery

specification requirements, and has passed the relevant statutory authority at home and abroad security and performance testing, products are mainly sold to domestic market as well as North America, South America, Europe, Japan, southeast Asia and other markets. The company has the professional quality supervision team, the complete testing system and the perfect, the system, the scientific operation flow. From the battery's incoming material,

production, shipment, service and other links strictly control, following the ISO9001:2000 system requirements specification, guarantee product quality. And passed the ISO9001:2000, CE, IS014001:2004, RoHS, UL and other certifications.

FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty
Contact us for more details about Price, Packing, Shipping and Discount.
