Product Details:

Place of Origin: Guangdong, China
Brand Name: YABO
Certification: CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Model Number: 24V 200Ah-Waterproof case

Payment & Shipping Terms:

Price: $887.00 - $1,090.00/pieces
Packaging Details: 1. We usually use the carton for packing.<br>2.As customer requirements packing.
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Features: Waterproof Warranty: 3years
Anode Material: LFP Chargeable: NO
Application: Home Appliances, BOATS, SUBMARINES, Electric Power Systems, Solar Energy Storage Systems, UPS, Solar & Wind Power System Battery Size: Prismatic
Product Name: 24V 200Ah Lithium Iron Phosphate (LiFePO4) Battery Case: Sheet Metal
Energy: 5120Wh Cycle Life: 2000 Cycles
OEM/ODM: Accepatable Battery Type: 3.2V 202AH 8S1P
Size: 380*280*320mm Terminal: M8
MOQ: 1 Pcs Port: Shenzhen/HK
High Light:

IP67 Waterproof Lifepo4 Battery

,

lifepo4 cells 200ah

,

lifepo4 24v 200ah

Product Description

Solar Energy Storage Systems Waterproof Case Lithium 24V 200Ah LiFePO4 Battery Pack





Product Description
Electrical
Characteristics
Nominal Voltage
25.6V

Nominal Capacity
200Ah@0.2C

Energy
5120Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
28.0~29.2V

Charging Mode
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and
then,changed continuously with constant voltage of 29.2V until the current was not
more than 0.02C(A).

Charging Current
100A

Max.Charging Current
150A
Standard Discharging
Discharging Current
100A

Max. Continuous Current
150A

Max.Pulse Current
250A(<100mS)

Discharging Cut-off Voltage
20.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
3.2V 202Ah 8S1P

Casing
Waterproof Sheet Metal

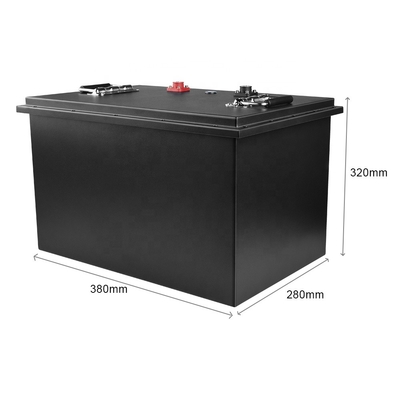

Dimension(L*W*H*TH)
380*280*320mm

Terminal

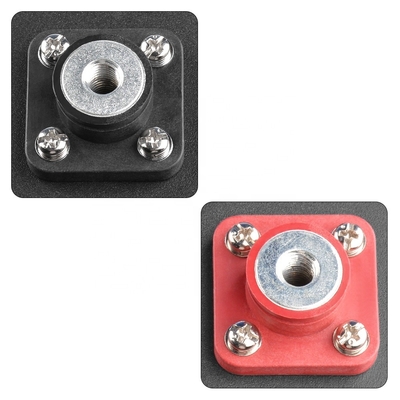

M8
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 0
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 1
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 2
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 3
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 4
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 5
Chart
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 6
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.

◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 7
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Company Profile
IP67 Waterproof Lifepo4 Battery 24v 200ah Cells Solar Energy Storage Systems 8

The company mainly engages in R&D, production and sales of rechargeable source system solutions in various fields.The company has been engaged in the development of lithium ion battery for more

than 10 years, a master's degree in deep research and development, and a batch of specialized technical talents from domestic institutions of higher leaming.



Product specifications complete, excellent performance, safe and reliable, various indicators have reached the national test battery

specification requirements, and has passed the relevant statutory authority at home and abroad security and performance testing, products are mainly sold to domestic market as well as North America, South America, Europe, Japan, southeast Asia and other markets. The company has the professional quality supervision team, the complete testing system and the perfect, the system, the scientific operation flow. From the battery's incoming material,

production, shipment, service and other links strictly control, following the ISO9001:2000 system requirements specification, guarantee product quality. And passed the ISO9001:2000, CE, IS014001:2004, RoHS, UL and other certifications.



FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty
Contact us for more details about Price, Packing, Shipping and Discount.
