Product Details:

Place of Origin: Guangdong, China
Brand Name: YABO
Model Number: YB-LF16100 LCD 48V 100Ah

Payment & Shipping Terms:

Price: $1,050.00/pieces 1-49 pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Battery Type: LiFePO4 Nominal Voltage: 51.2Volts
Nominal Capacity: 100Ah Energe: 5120Wh
Water Dust Resistance: IP55 Casing: Plastic
Warranty: 3years Application: UPS,Solar&Wind Power System,E-Bike,E-rickshaw
Cycle Life: 2000+ Cycles Size: 522*238*217mm
Weight: 38.2kg Port: Shenzhen Or Hongkong
High Light:

51.2Volts 100ah Lifepo4 Battery

,

5120Wh 48V Lifepo4 Battery

,

48v lithium rechargeable battery

Product Description

Deep Cycle Lithium Ion Power Tool Energy Storage Rechargeable 48v 100ah Lifepo4 Lithium Ion Battery

Specification


- Series: It is not recommend to connect more than 4 batteries
, otherwise you will encounter balance issues within your system.
*All cables and connections must be able to accommodate the high currents that can be
delivered by the battery. Appropriate fuses and circuit breakers are highly recommended to protect
downstream componentsfrom currentspikes and short circuits.
*In parallel battery banks , the cables between each battery should be of equal length to
ensure that all batteries in the system can work equally together.
*To string multiple batteries in parallel,first connect the positive terminals of batteries to
each other. Then do the same with the negative terminals . Finally, connect the positive and
negative terminals of the first battery to the system. This type of arrangement is used to
increase the overall battery capacity while keeping the voltage the same.

Electrical
Characteristics
Nominal Voltage
51.2V

Nominal Capacity
100Ah@0.2C

Energy
5120Wh

Internal Resistance
≤35mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2

Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 58.4V until the current was not
more than 0.02C

Charging Current
50A

Max.Charging Current
100A
Standard Discharging
Discharging Current
50A

Max. Continuous Discharging Current
100A

Max.Pulse Current
100A(10S) Can be set up

Discharging Cut-off Voltage
40.0 V
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
EVE50160115(16S1P)

Casing
Plastic

Max.Dimension (L*W*H)
522*238*217*217mm

Weight
Approx.38.2Kg

Display
LCD

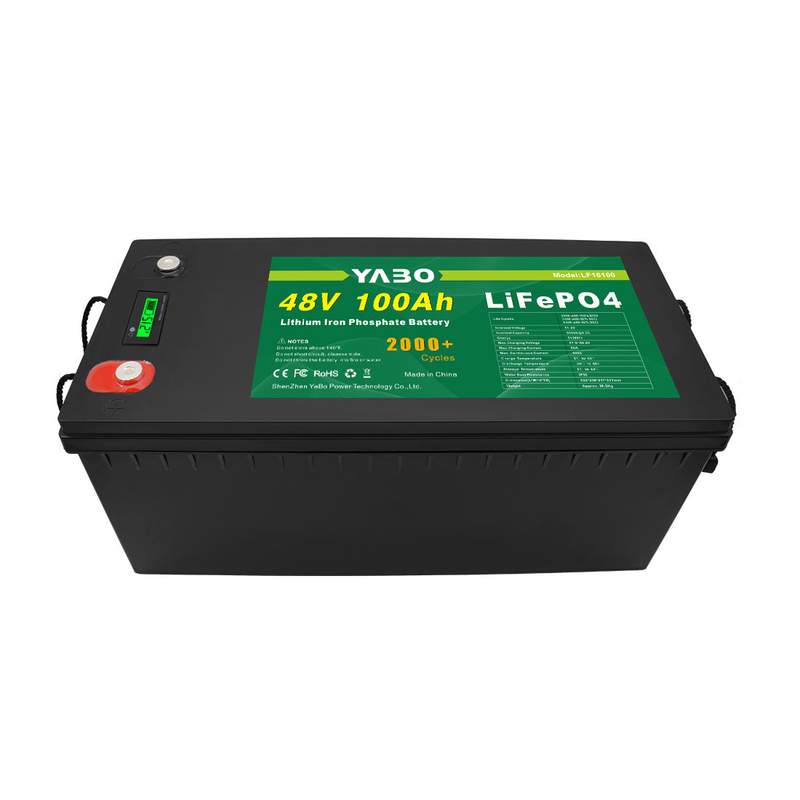

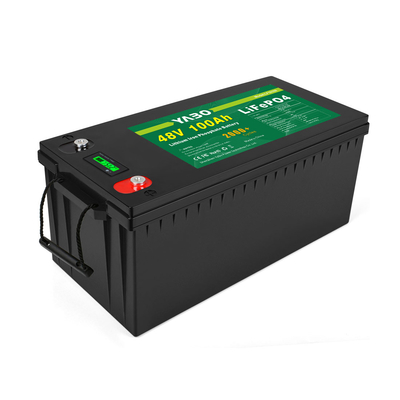

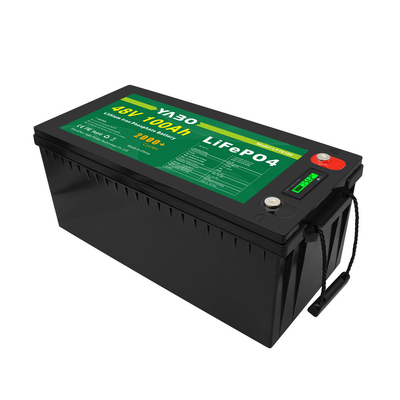

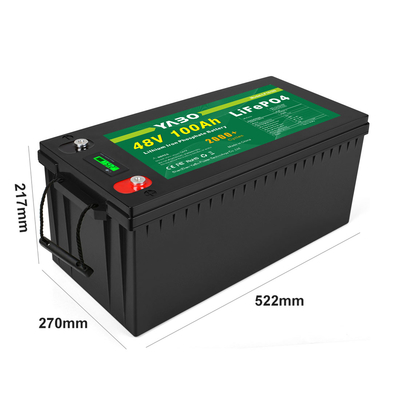

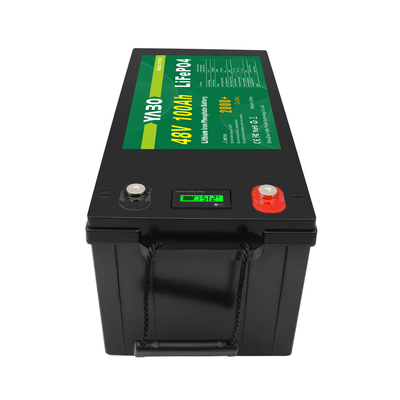

Details Images
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 0
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 1
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 2
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 3
Test Chart
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 4
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 5
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 6

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : 20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 7
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 8

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.





Certifications
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 9
Packaging & Shipping
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 10
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 11
51.2Volts 100ah 48V Lifepo4 Battery Power Tool Energy Storage Rechargeable 12
FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A:3 year warranty.
