Lithium Iron Phosphate Deep Cycle LiFePO4 Battery Lithium 6V 6Ah 6.4V For Toys UPS
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YaBo |
| Certification: | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
| Model Number: | YB-LFP6.4V 6AH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $10.27/pieces 2-99 pieces |
| Packaging Details: | To be negotiated<br>1. We usually use the carton for packing.<br>2.As customer requirements packing. |
|
Detail Information |
|||
| Warranty: | 1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Toy Truck, Children Tractor, 6v Trike Scooter, Fish Finder |
| Battery Size: | 32700 | Weight: | Approx. 0.4Kg |
| Combination Method: | 1parallels 2series 32700 | Max. Charge Voltage: | 7.3V |
| Discharge Cut-off Voltage: | 5V | Charge Current: | 6A |
| Continuous Output Discharging Current: | 10A | Charging Temperature: | 0~45℃ |
| Discharging Temperature: | -10~60℃ | Short Circuit Current Protection: | Enable |
| Dimension(L*W*H*TH): | 70*47*102*105mm | Plastic Case: | ABS |
| Highlight: | lithium iron phosphate,Deep Cycle LiFePO4 Battery Lithium 6V,battery lithium 6v 6ah |
||
Product Description
New Design 6.4V 6Ah Lithium Ion Rechargeable Deep Cycle LiFePO4 Storage Battery 6V For Toys UPS Solar
Product Description
Environmentally Friendly after use
So, lithium iron phosphate batteries are greener to make, but they also present a much lower environmental risk throughout their working life compared to other lithium batteries.
The phosphate salts used in LFP batteries are far less soluble than the metal oxides used in other lithium batteries. This makes it much less likely for LiFePO4 units to leach chemicals into the environment, even if the battery is improperly discarded.
The same cannot be said for LA batteries whose structure can degrade over time, leading to poisonous chemical leakage.
Unlike other battery chemistries, LiFePO4 battery packs are also easy to recycle at the end of their working life.
|
Characteristics |
Nominal Voltage
|
6.4V
|
|
|
Nominal Capacity
|
6Ah@0.2C
|
|
|
Energy
|
38.4Wh
|
|
|
Internal Resistance
|
≤80mΩ
|
|
|

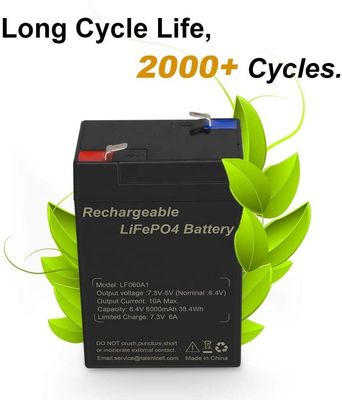

Cycle Life
|
>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
|
|
|
Months Self Discharge
|
≤3.5% per month at 25
|
|
Standard Charge
|
Charge Voltage
|
14.6±0.2V
|
|
|
Charge Mode CC/CV
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C. |
|
|
Charger Current
|
1.2A
|
|
|
Max.Charge Current
|
3A
|
|
|
Discharge Current
|
1.2A
|
|
|
Max. Continuous Current
|
12A
|
|
|
Max.Pulse Current
|
20A(<3S)
|
|
|
Disxcharge Cut-off Voltage
|
10.0V
|
|
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Disxcharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
|
Cell & Method
|
IFR32700 ,2S1P
|
|
|
Plastic Case
|
ABS
|
|
|

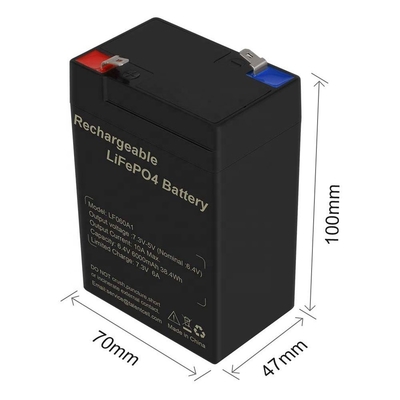

Dimension(L*W*H*TH)
|
70*47*102*105mm
|
|
|

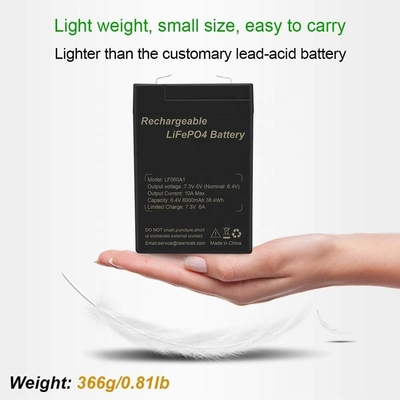

Weight
|
Approx. 0.4Kg
|
|
|
Terminal
|
184(IN)
|

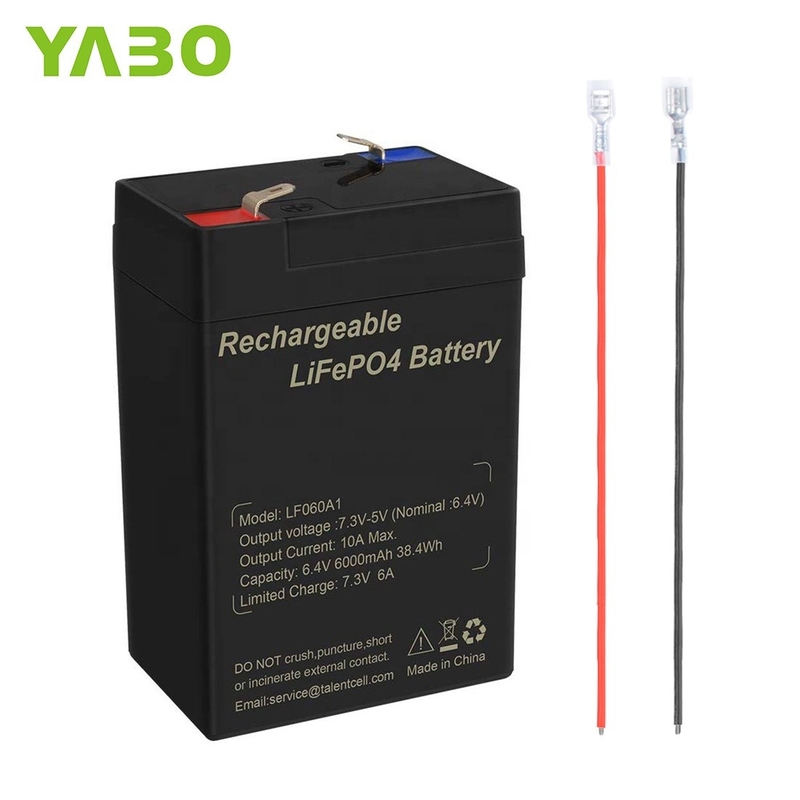

Details Images

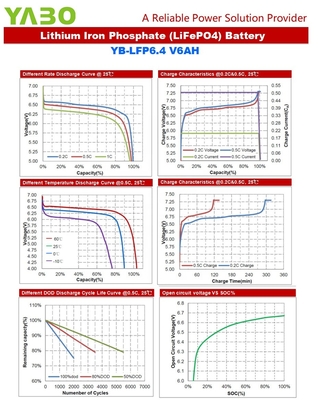

Chart
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions. ◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature. ◆ Maintenance free. ◆ Internal cell balancing. ◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid batte. ◆ Can be charged using most standard lead-acid charges (set). ◆ Wider temperature range:-20℃~60℃.
Application
◆ UPS ◆ Electronic Balance/Scale ◆ Children’s Toy Car ◆ Electric vehicle , E-bike, E-rickshaw e.g. ◆ Lighting
