Marine Deep Cycle Lifepo4 Battery 6V 5Ah 2.5Ah 4Ah 4.5Ah 6Ah Solar Panel
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YaBo |
| Certification: | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
| Model Number: | YB-LFP6.4V 6AH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $10.27/pieces 2-499 pieces |
| Packaging Details: | To be negotiated<br>1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 20000 Piece/Pieces per Day |
|
Detail Information |
|||
| Warranty: | 1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Toy Truck, Children Tractor, 6v Trike Scooter, Fish Finder |
| Battery Size: | 32700 | Weight: | 0.4kg |
| Charge Voltage: | 7.3±0.2V | Charger Current: | 1.2A |
| Max.Charge Current: | 3A | Discharge Current: | 1.2A |
| Max. Continuous Current: | 10A | Charge Temperature: | 0~45℃ |
| Disxcharge Temperature: | -20~60℃ | Cell & Method: | IFR32700 ,2S1P |
| Dimension(L*W*H*TH): | 70*47*102*105mm | Terminal: | 184(IN) |
| Port: | Shenzhen Or HK | ||
| High Light: | lifepo4 deep cycle marine battery,Deep Cycle Lifepo4 Battery 6V 5Ah,6v lithium deep cycle battery |
||
Product Description
Rechargeable Lithium Iron Phosphate 6V 2.5Ah 4Ah 4.5Ah 5Ah 6Ah Solar Panel Lifepo4 Replace 6V Battery
Product Description
More weight-savings
Further weight-savings are realised when you consider that a comparative lead acid battery installation will require battery boxes and lots more wiring for terminal connections compared to a LiFePO4 battery installation.
Environmentally Friendly to make
Unlike a lithium battery and lead acid batteries, LiFePO4 batteries do not contain toxic, heavy or rare earth metals like cobalt, nickel or lead. LiFePO4 is composed of common materials like graphite, iron and copper.
These materials are cheaper to source, more abundant and also require less energy to mine and process, representing a greener choice for boat owners looking for green electric boat propulsion solutions.
|
Characteristics |
Nominal Voltage
|
6.4V
|
|
|
Nominal Capacity
|
6Ah@0.2C
|
|
|
Energy
|
38.4Wh
|
|
|
Internal Resistance
|
≤80mΩ
|
|
|
Cycle Life
|
>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
|
|
|
Months Self Discharge
|
≤3.5% per month at 25
|
|
Standard Charge
|
Charge Voltage
|
14.6±0.2V
|
|
|
Charge Mode CC/CV
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C.
|
|
|
Charger Current
|
1.2A
|
|
|
Max.Charge Current
|
3A
|
|
|
Discharge Current
|
1.2A
|
|
|
Max. Continuous Current
|
12A
|
|
|
Max.Pulse Current
|
20A(<3S)
|
|
|
Disxcharge Cut-off Voltage
|
10.0V
|
|
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Disxcharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
|
Cell & Method
|
IFR32700 ,2S1P
|
|
|
Plastic Case
|
ABS
|
|
|

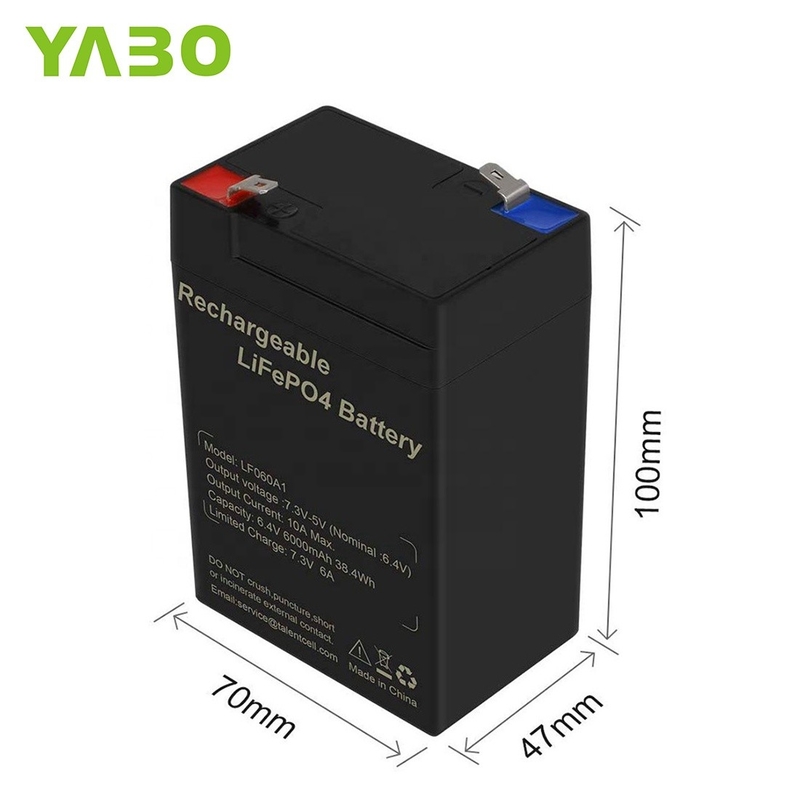

Dimension(L*W*H*TH)
|
70*47*102*105mm
|
|
|
Weight
|
Approx. 0.4Kg
|
|
|
Terminal
|
184(IN)
|
Details Images

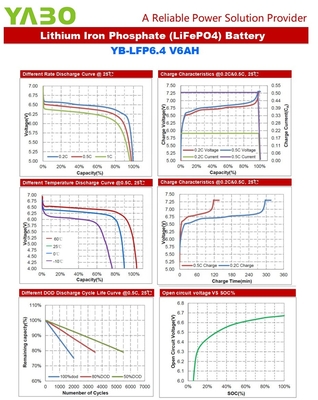

Chart
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Maintenance free.
◆ Internal cell balancing.

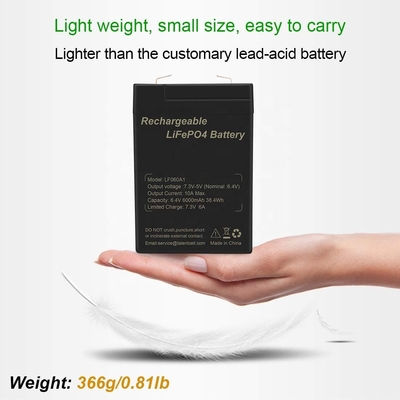

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid batte.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
Application
◆ UPS ◆ Electronic Balance/Scale ◆ Children’s Toy Car ◆ Electric vehicle , E-bike, E-rickshaw e.g. ◆ Lighting
