6.4V 4.5Ah 6v 5Ah Deep Cycle LiFePO4 Battery Rechargeable Lighting
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YaBo |
| Certification: | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
| Model Number: | YB-LFP6.4V 6AH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $10.27/pieces 2-499 pieces |
| Packaging Details: | 1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 20000 Piece/Pieces per Day |
|
Detail Information |
|||
| Warranty: | 1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Consumer Electronics, Toy Truck, Children Tractor, 6v Trike Scooter, Fish Finder |
| Battery Size: | 32700 | Weight: | Approx. 0.4Kg |
| Nominal Voltage: | 6.4V | Nominal Capacity: | 6Ah |
| Energy: | 38.4Wh | Internal Resistance: | ≤80mΩ |
| Cycle Life: | 2000 Cycles | Water Dust Resistance: | IP55 |
| Casing: | ABS | Dimension(L*W*H*TH): | 70*47*102*105mm |
| Cell & Method: | IFR32700 ,2S1P | Terminal: | 184(IN) |
| Port: | Shenzhen Or HK | ||
| High Light: | 6v 5ah lithium ion battery,lifepo4 deep cycle rechargeable battery,lifepo4 battery deep cycle |
||
Product Description
Solar Energy Storage Systems Lighting Cheap Lithium Rechargeable LiFePO4 4.5Ah 5Ah 6Ah 6V Deep Cycle Battery
Products Description
LiFePO4 is lightweight
Lithium iron phosphate (LiFePO4 or LFP) chemistries deliver about 50% more useable electrical capacity with up to 70% less weight than lead-acid batteries. LiFePO4 units are also lighter than some lithium ion batteries, around half the weight of lithium manganese oxide (LMO) batteries.
The superior power-to-weight ratio of LiFePO4 results in smaller battery packs, less wasted space and lower propulsion system weight, which improves boat performance, electrical efficiency, overall boat range and increases interior layout options.
|
Electrical
Characteristics |
Nominal Voltage
|
6.4V
|
|
|
Nominal Capacity
|
6Ah@0.2C
|
|
|
Energy
|
38.4Wh
|
|
|
Internal Resistance
|
≤80mΩ
|
|
|

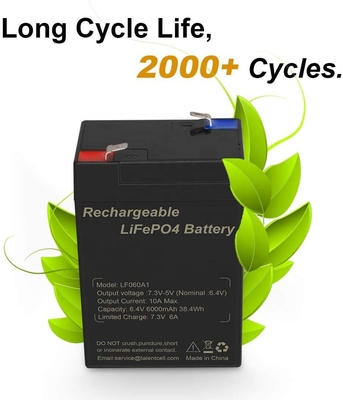

Cycle Life
|
>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
|
|
|
Months Self Discharge
|
≤3.5% per month at 25
|
|
Standard Charge
|
Charge Voltage
|
7.3±0.2V
|
|
|
Charge Mode CC/CV
|
At 0℃~45℃ temperature, charged to 7.3V at a constant current of 0.2C, and then,changed continuously with constant voltage of 7.3V until the current was not
more than 0.02C. |
|
|
Charger Current
|
1.2A
|
|
|
Max.Charge Current
|
3A
|
|
Standard Discharge
|
Discharge Current
|
1.2A
|
|
|
Max. Continuous Current
|
10A
|
|
|
Max.Pulse Current
|
20A(<3S)
|
|
|
Disxcharge Cut-off Voltage
|
5.0V
|
|
Environmental
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Disxcharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Mechanical
|
Cell & Method
|
IFR32700 ,2S1P
|
|
|
Plastic Case
|
ABS
|
|
|

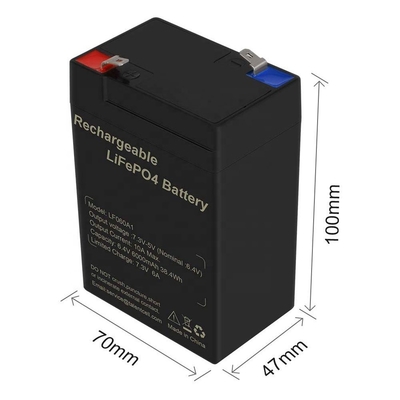

Dimension(L*W*H*TH)
|
70*47*102*105mm
|
|
|
Weight
|
Approx. 0.4Kg
|
|
|
Terminal
|
184(IN)
|
Product Details

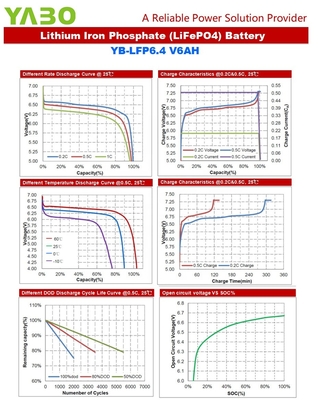

Chart
Our Advantages
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.

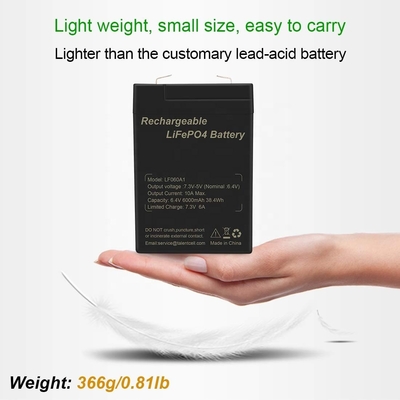

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
Why Choose Us
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality. Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity. Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have? A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Q8.How about warranty? A:1 year warranty
