6Ah 6V Lifepo4 Deep Cycle Lithium Battery For Toys Bicycle Headlight Bumper Car
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YaBo |
| Certification: | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
| Model Number: | YB-LFP6.4V 6AH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $10.27/pieces 2-499 pieces |
| Packaging Details: | 1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 20000 Piece/Pieces per Day |
|
Detail Information |
|||
| Warranty: | 1year | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Toys, Power Tools, Consumer Electronics, Toy Truck, Children Tractor, 6v Trike Scooter, Fish Finder |
| Battery Size: | 32700 | Weight: | Approx. 0.4Kg |
| Nominal Voltage: | 6.4V | Nominal Capacity: | 6Ah |
| Energy: | 38.4Wh | Internal Resistance: | ≤80mΩ |
| Cycle Life: | 2000 Cycles | Water Dust Resistance: | IP55 |
| Casing: | ABS | Dimension(L*W*H*TH): | 70*47*102*105mm |
| Cell & Method: | IFR32700 ,2S1P | Terminal: | 184(IN) |
| Port: | Shenzhen Or HK | ||
| High Light: | lithium lifepo4 deep cycle battery,6v deep cycle lithium battery,6v 6ah lithium battery |
||
Product Description
Rechargeable Lifepo4 6Ah 6V Lithium Li-ion Solar Battery for Toys Bicycle Headlight Bumper Car
Products Description
Faster Charging process
Battery charging time for LiFePO4 batteries is quicker than for lead acid or other lithium batteries, Typically LiFePO4 units have four times the energy density and charge five times faster than lead acid batteries.
Cycle life for a LiFePO4 battery is up to five times the cycle life of some lithium ion batteries, often reaching up to 5000 cycles without any significant drop in performance.
LiFePO4 battery packs can also run down to 100% DOD (depth of discharge) without any damage or drop in performance.
|
Electrical
Characteristics |
Nominal Voltage
|
6.4V
|
|
|
Nominal Capacity
|
6Ah@0.2C
|
|
|
Energy
|
38.4Wh
|
|
|
Internal Resistance
|
≤80mΩ
|
|
|
Cycle Life
|

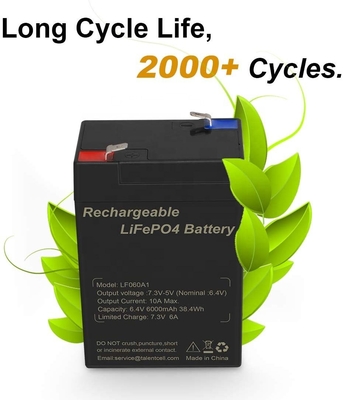

>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
|
|
|
Months Self Discharge
|
≤3.5% per month at 25
|
|
Standard Charge
|
Charge Voltage
|
7.3±0.2V
|
|
|
Charge Mode CC/CV
|
At 0℃~45℃ temperature, charged to 7.3V at a constant current of 0.2C, and then,changed continuously with constant voltage of 7.3V until the current was not
more than 0.02C. |
|
|
Charger Current
|
1.2A
|
|
|
Max.Charge Current
|
3A
|
|
Standard Discharge
|
Discharge Current
|
1.2A
|
|
|
Max. Continuous Current
|
10A
|
|
|
Max.Pulse Current
|
20A(<3S)
|
|
|
Disxcharge Cut-off Voltage
|
5.0V
|
|
Environmental
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Disxcharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Mechanical
|
Cell & Method
|
IFR32700 ,2S1P
|
|
|
Plastic Case
|
ABS
|
|
|

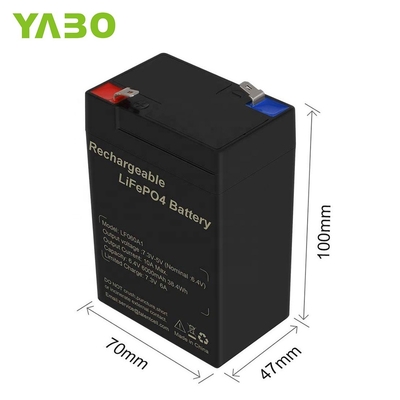

Dimension(L*W*H*TH)
|
70*47*102*105mm
|
|
|
Weight
|
Approx. 0.4Kg
|
|
|
Terminal
|
184(IN)
|
Product Details

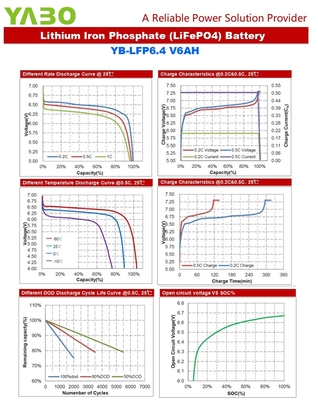

Chart
Our Advantages
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.

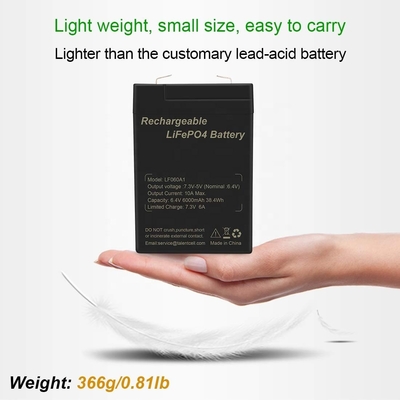

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
Why Choose Us
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
