| Place of Origin: | Guangdong, China |
| Brand Name: | YaBo |
| Certification: | ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
| Model Number: | LF8080 24V 26.4Ah |
| Price: | $135.00 - $155.00/pieces |
|---|---|
| Packaging Details: | 1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 3years | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Home Appliances, Electric Power Systems, Solar Energy Storage Systems |
| Weight: | Approx. 10Kg | Cell & Format: | 26650-3300mAh,8S8P |
| Dimension: | 300*230*95 | Energy: | 675.84Wh |
| Cycle Life: | 2000 Cycles | Self Discharge: | ≤3.5% Per Month At 25℃ |
| Max.Charging Voltage: | 28.0~29.2V | Discharging Current: | 3A |
| Max. Continuous Current: | 6A | Water Dust Resistance: | IP55 |
| Casing: | Plastic | Port: | Shenzhen/HongKong |

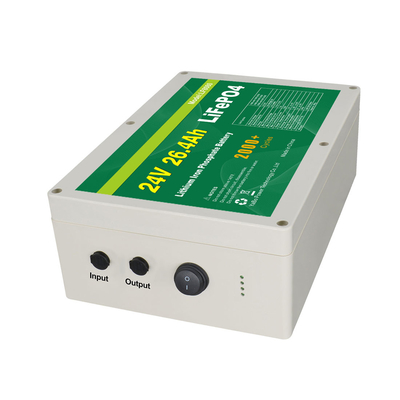

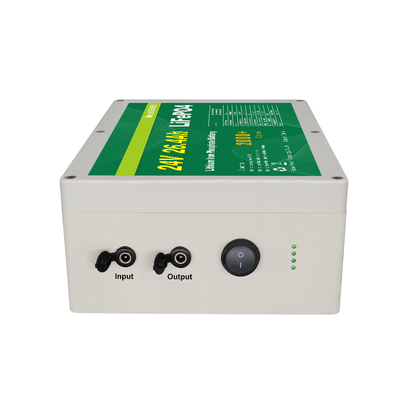

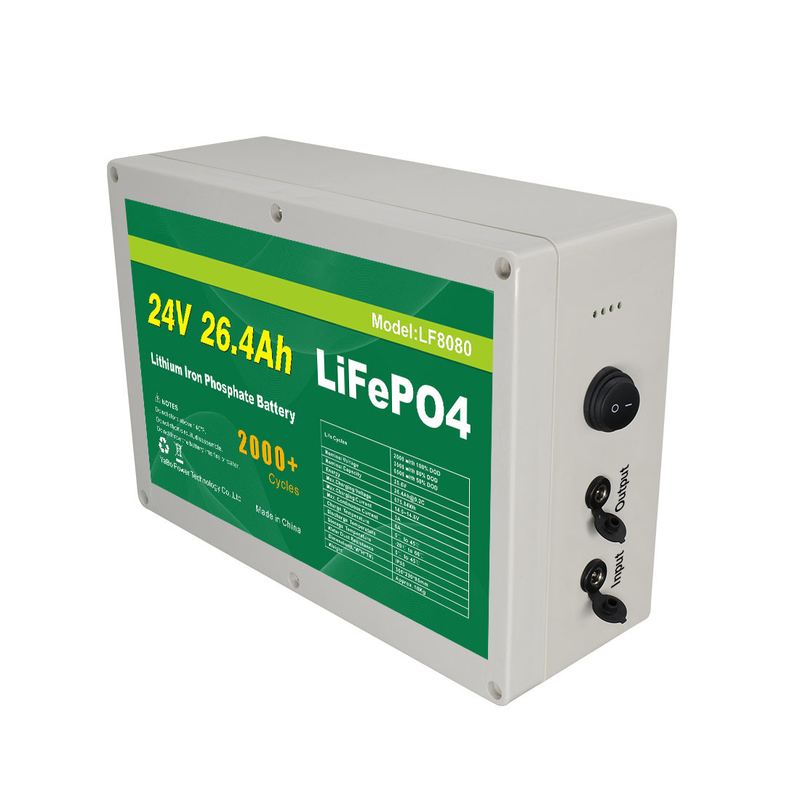

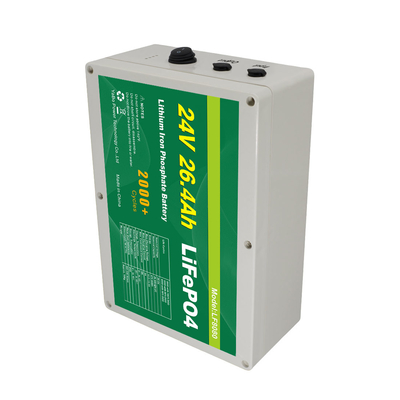

Factory Customized Deep Cycle Lithium Lifepo4 Battery Pack 24V 26.4Ah
|
Electrical
Characteristics |
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
26.4Ah@0.2C
|
|
|
Energy
|
675.84Wh
|
|
|
Internal Resistance
|
≤55mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
28.0~29.2V
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).
|
|
|
Charging Current
|
3A
|
|
|
Max.Charging Current
|
6A
|
|
Standard Discharging
|
Discharging Current
|
3A
|
|
|
Max. Continuous Current
|
6A
|
|
|
Max.Pulse Current
|
12A(<3S)
|
|
|
Discharging Cut-off Voltage
|
20.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Structure
|
Cell & Format
|
26650-3300mAh,8S8P
|
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
300*230*95
|
|
|
Weight
|
Approx. 10Kg
|
|
|
Terminal
|
5521female input/output port
|
The company mainly engages in R&D, production and sales of rechargeable source system solutions in various fields.The company has been engaged in the development of lithium ion battery for more
than 10 years, a master's degree in deep research and development, and a batch of specialized technical talents from domestic institutions of higher leaming.
Product specifications complete, excellent performance, safe and reliable, various indicators have reached the national test battery
specification requirements, and has passed the relevant statutory authority at home and abroad security and performance testing, products are mainly sold to domestic market as well as North America, South America, Europe, Japan, southeast Asia and other markets. The company has the professional quality supervision team, the complete testing system and the perfect, the system, the scientific operation flow. From the battery's incoming material,
production, shipment, service and other links strictly control, following the ISO9001:2000 system requirements specification, guarantee product quality. And passed the ISO9001:2000, CE, IS014001:2004, RoHS, UL and other certifications.
