12V 24v Lifepo4 Battery pack Portable 200ah 12.8 volt bms Built In Waterproof 100Ah 150Ah
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YABO |
| Certification: | CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB |
| Model Number: | 24V 200Ah-Waterproof case |
Payment & Shipping Terms:
| Price: | $887.00 - $1,090.00/pieces |
|---|---|
| Packaging Details: | 1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Features: | Waterproof | Warranty: | 3years |
|---|---|---|---|
| Anode Material: | LFP | Chargeable: | Yes |
| Application: | BOATS, Electric Power Systems, Solar Energy Storage Systems, UPS, Solar & Wind Power System | Battery Size: | Prismatic |
| Product Name: | 24V 200Ah Lithium Iron Phosphate (LiFePO4) Battery | Case: | Sheet Metal |
| Energy: | 5120Wh | Cycle Life: | 2000 Cycles |
| OEM/ODM: | Accepatable | Battery Type: | 3.2V 202AH 8S1P |
| Size: | 380*280*320mm | Terminal: | M8 |
| MOQ: | 1 Pcs | Port: | Shenzhen/HK |
| High Light: | 12V 24v Lifepo4 Battery,12.8v bms,lifepo4 portable battery pack |
||
Product Description
Waterproof Bms Built-in 12V 24V 100Ah 150Ah 200Ah Lifepo4 Lithium Ion Solar Price Portable Battery
Product Description
Features
1.Replacement of Lead-acid batteries,safer and more stable
2.High energy density,light weight,easy installation,low overall cost
3.According to customer needs for design and customization
4.Long cycle life,1C/1C charge and discharge 1500 times the remaining capacity of more than 80%
|
Electrical
Characteristics |
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
200Ah@0.2C
|
|
|
Energy
|
5120Wh
|
|
|
Internal Resistance
|
≤35mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
28.0~29.2V
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and
then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A). |
|
|
Charging Current
|
100A
|
|
|
Max.Charging Current
|
150A
|
|
Standard Discharging
|
Discharging Current
|
100A
|
|
|
Max. Continuous Current
|
150A
|
|
|
Max.Pulse Current
|
250A(<100mS)
|
|
|
Discharging Cut-off Voltage
|
20.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
Structure
|
Cell & Format
|
3.2V 202Ah 8S1P
|
|
|
Casing
|
Waterproof Sheet Metal
|
|
|

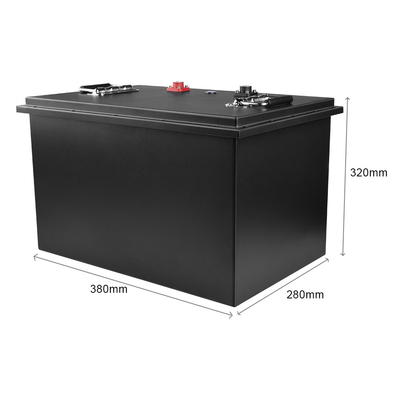

Dimension(L*W*H*TH)
|
380*280*320mm
|
|
|

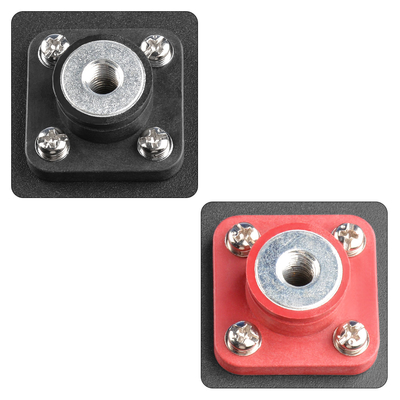

Terminal
|
M8
|
Chart
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.
◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Company Profile
Certifications
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:3 year warranty
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:3 year warranty
Contact us for more details about Price, Packing, Shipping and Discount.
