Cheap High Energy 51.2V 50Ah 100Ah 150Ah 170Ah Lithium Ion Battery 48V 200Ah LiFePO4 Battery For Solar Storage System
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YABO |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Model Number: | YB-LF51200 48V 200Ah |
Payment & Shipping Terms:
| Price: | $600.00 - $2,500.00/pieces |
|---|---|
| Packaging Details: | 1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 5years | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, UPS,Lighting |
| Battery Size: | 5.5U | Weight: | Approx. 78Kg |
| The Charging Ratio: | 200A | The Discharge Rate: | 200A |
| Nominal Voltage: | 51.2V | Nominal Capacity: | 200Ah |
| Energy: | 10240Wh | Internal Resistance: | ≤35mΩ |
| Cycle Life: | 4000-6000Cycles | Max.Charging Voltage: | 58.4±0.2 |
| Water Dust Resistance: | IP54 | Casing: | Sheet Metal |
| Dimension(L*W*H*TH): | 82.6*614.5*244mm | Display: | LCD |
| Port: | Shenzhen/HK | ||
Product Description
Products Description
Electrical Characteristics | Nominal Voltage | 51.2V |
Nominal Capacity | 200Ah@0.2C | |
Energy | 10240Wh | |
Internal Resistance | ≤35mΩ | |
Cycle Life | 4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max.Charging Voltage | 58.4±0.2 |
Charging Mode | At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C | |
Charging Current | 200A | |
Max.Charging Current | 200A | |
Standard Discharging | Discharging Current | 200A |
Max. Continuous Current | 200A | |
Max.Pulse Current | 210A(10S) Can be set up | |
Discharging Cut-off Voltage | 40.0 | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP54 | |
Structure | Cell & Format | (16S1P) |
Casing | Metal | |

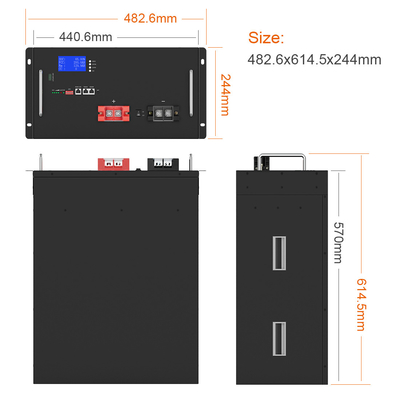

Max.Dimension (L*W*H) | 82.6*614.5*244mm（5.5U） | |
Weight | Approx.78Kg | |
Communication Interface | CAN or RS485 | |
Display | LCD |
Product Details
Chart
Our Advantages
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
