Product Details:

Place of Origin: Guangdong, China
Brand Name: YaBo
Certification: ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
Model Number: YB-LF51150 48V 150Ah

Payment & Shipping Terms:

Price: $1,537.00/pieces 1-49 pieces
Packaging Details: 1. We usually use the carton for packing. <br>2.As customer requirements packing.
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 5years Anode Material: LFP
Chargeable: Yes Application: Solar Energy Storage Systems, UPS, Solar & Wind Power System
Weight: Approx. 65Kg Product Name: 48V 150Ah Lithium Iron Phosphate (LiFePO4) Battery
Case: Black Plastic Case Energy: 7680Wh
Internal Resistance: ≤35mΩ Cycle Life: 4000-6000Cycles
Self Discharge: ≤3.5% Per Month At 25℃ Max.Charging Voltage: 58.4±0.2
Discharging Current: 150A Cell & Format: LFP34K0K8 34200204(4) (16S1P)
OEM/ODM: Accepatable Port: Shenzhen/HK

Product Description

Product Description
Electrical
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
150Ah@0.2C
Energy
7680Wh
Internal Resistance
≤35mΩ
Cycle Life
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2
Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
Charging Current
150A
Max.Charging Current
150A
Standard Discharging
Discharging Current
150A
Max. Continuous Current
150A
Max.Pulse Current
160A(10S) Can be set up
Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP54
Structure
Cell & Format
LFP34K0K8 34200204(4) (16S1P)
Casing
Metal

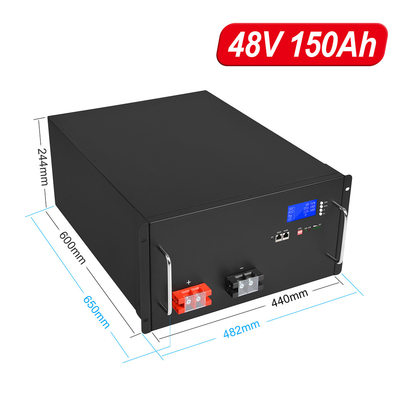

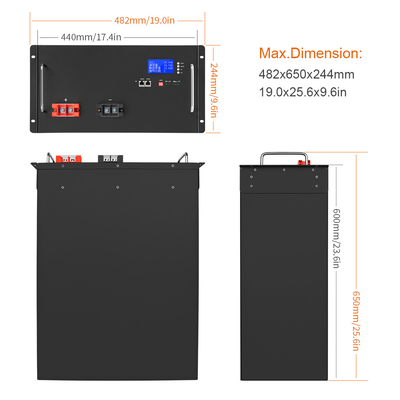

Max.Dimension (L*W*H)
482*650*244mm(5.5U)
Weight
Approx.65Kg
Communication Interface
RS485 (8P8C)
Display
LCD
Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V 0
Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V 1
Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V 2
Chart
Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V 3
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.

◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V 4
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Recommend Products
Company Profile
Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V 5
Certifications
Customized Lifepo4 Battery 51.2V 150Ah Supercapacitor Solar Storage Battery Pack 48V 6
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty
