Product Details:

Place of Origin: Guangdong, China
Brand Name: YaBo
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF51050 48V 50Ah

Payment & Shipping Terms:

Price: $669.00 - $1,115.00/pieces
Packaging Details: 1. We usually use the carton for packing.<br>2.As customer requirements packing.
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 5years Anode Material: LFP
Chargeable: Yes Application: Base Station, Home Energy Storage
Battery Size: 2U Weight: Approx. 25Kg
The Charging Ratio: 50A The Discharge Rate: 50A
Nominal Voltage: 51.2V Nominal Capacity: 50Ah
Energy: 2560Wh Internal Resistance: ≤35mΩ
Cycle Life: 4000-6000Cycles Max.Charging Voltage: 58.4±0.2
Water Dust Resistance: IP54 Casing: Sheet Metal
Dimension(L*W*H*TH): 482.6*393*88mm(2U) Battery Type: Lifepo4/lithium Battery
Port: Shenzhen/HK

Product Description

Products Description
Electrical
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
50Ah@0.2C
Energy
2560Wh
Internal Resistance
≤35mΩ

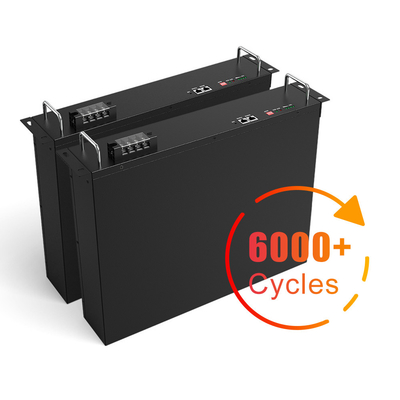

Cycle Life
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
58.4±0.2
Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
Charging Current
50A
Max.Charging Current
50A
Standard Discharging
Discharging Current
50A
Max. Continuous Current
50A
Max.Pulse Current
60A(10S) Can be set up
Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP54
Structure
Cell & Format
1P16S
Casing
Metal

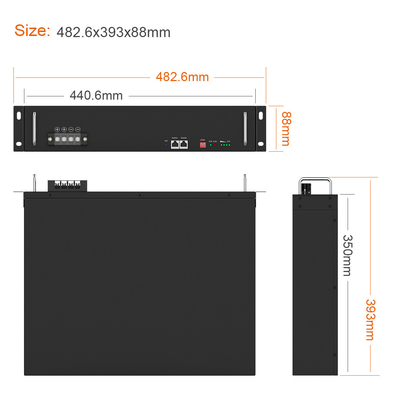

Max.Dimension (L*W*H)
482.6*393*88mm(2U)
Weight
25kg

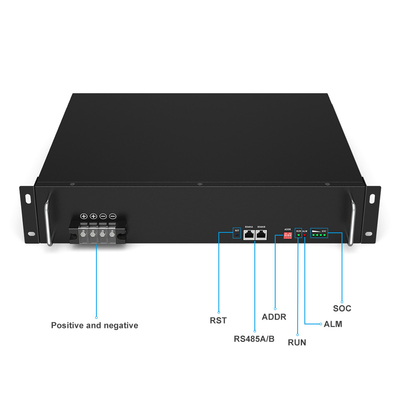

Communication Interface
RS485A+RS485B
Carry
Handle
Product Details
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 0
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 1
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 2
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 3
Chart
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 4
Our Advantages

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.

◆ Does not support series applications, the maximum support 15 batteries parallel.

Application
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 5
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Recommend Products
Company Profile
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 6
Certifications
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 7
Packaging & Shipping
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 8
High Energy Lithium Ion Battery 48V 50Ah 100Ah LiFePO4 For Solar Energy Storage Systems 9
FAQ
Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality. Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity. Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have? A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Q8.How about warranty?
A:5 year warranty
