15PCS Paralleled Solar System 51.2V 50Ah 100Ah 150Ah Lithium Ion Battery LiFePO4 200Ah 48V
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YABO |
| Model Number: | YB-LF51200 48V 200Ah |
Payment & Shipping Terms:
| Price: | $600.00 - $2,500.00/pieces |
|---|---|
| Packaging Details: | 1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Battery Type: | LiFePO4 | Nominal Voltage: | 51.2V |
|---|---|---|---|
| Nominal Capacity: | 200Ah | Energy: | 10240Wh |
| Internal Resistance: | ≤35mΩ | Cycle Life: | 4000-6000Cycles |
| Max.Charging Voltage: | 58.4±0.2 | Water Dust Resistance: | IP54 |
| Casing: | Sheet Metal | Dimension(L*W*H*TH): | 82.6*614.5*244mm |
| Display: | LCD | Port: | Shenzhen/HK |
| High Light: | 15PCS 48V Lithium Ion Battery,50Ah 48V Lithium Ion Battery |
||
Product Description
Products Description
|
Electrical
Characteristics |
Nominal Voltage
|
51.2V
|
|
|
Nominal Capacity
|
200Ah@0.2C
|
|
|
Energy
|
10240Wh
|
|
|
Internal Resistance
|
≤35mΩ
|
|
|
Cycle Life
|
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
58.4±0.2
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not
more than 0.02C |
|
|
Charging Current
|
200A
|
|
|
Max.Charging Current
|
200A
|
|
Standard Discharging
|
Discharging Current
|
200A
|
|
|
Max. Continuous Current
|
200A
|
|
|
Max.Pulse Current
|
210A(10S) Can be set up
|
|
|
Discharging Cut-off Voltage
|
40.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP54
|
|
Structure
|
Cell & Format
|
(16S1P)
|
|
|
Casing
|
Metal
|
|
|

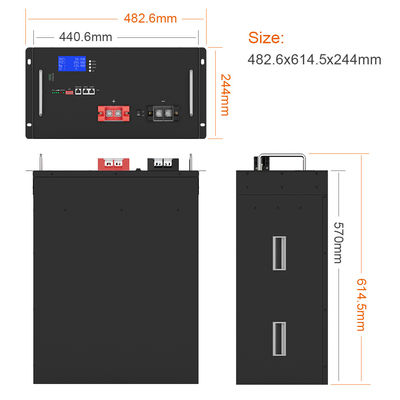

Max.Dimension (L*W*H)
|
82.6*614.5*244mm(5.5U)
|
|
|
Weight
|
Approx.78Kg
|
|
|
Communication Interface
|
CAN or RS485
|
|
|
Display
|
LCD
|
Product Details
Chart
Our Advantages
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality. Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity. Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have? A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Q8.How about warranty? A:3 year warranty
