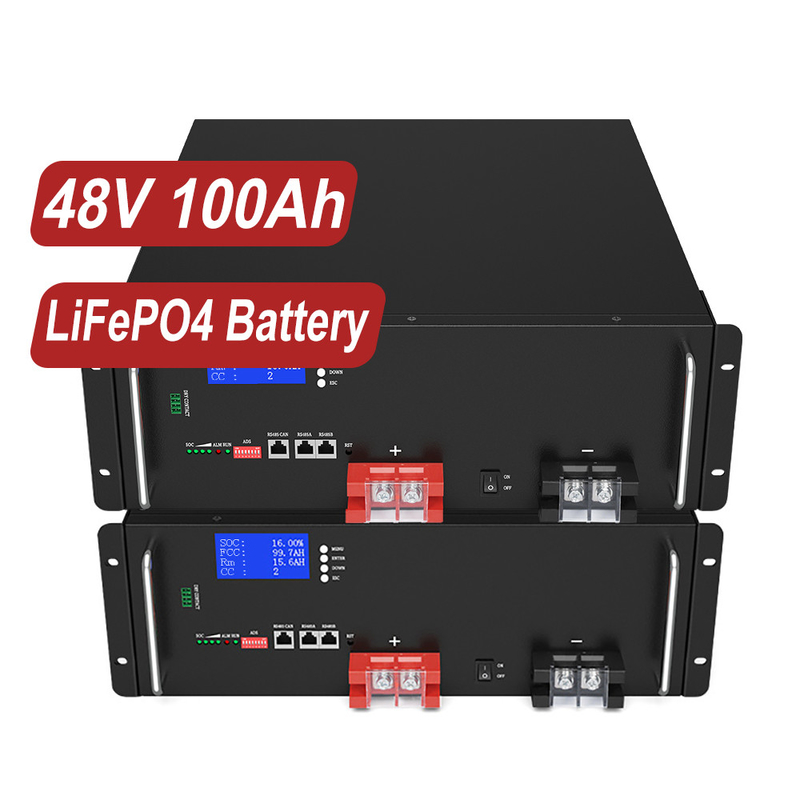

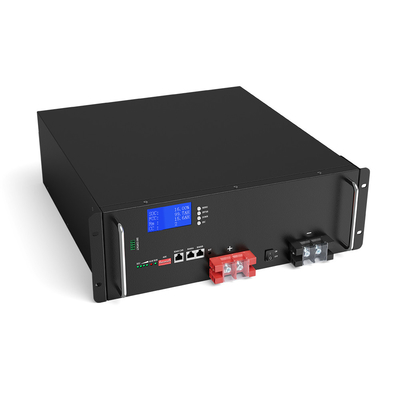

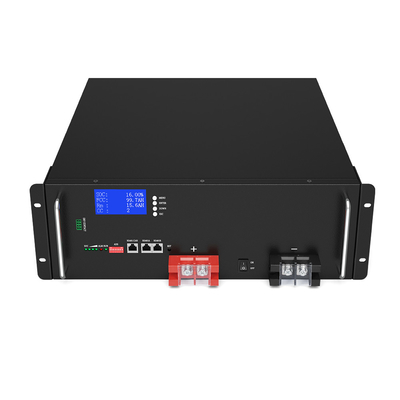

Made in China Superior Quality 48V 100Ah 5000+ Cycles UPS Solar Battery LiFePO4
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | YaBo |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Model Number: | YB-LF51100 48V 100Ah |
Payment & Shipping Terms:
| Price: | $600.00 - $1,291.00/pieces |
|---|---|
| Packaging Details: | 1. We usually use the carton for packing.<br>2.As customer requirements packing. |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 5years | Anode Material: | LFP |
|---|---|---|---|
| Chargeable: | Yes | Application: | Electric Power Systems, Solar Energy Storage Systems, UPS, Solar & Wind Power System |
| Battery Size: | 3.5U | Weight: | Approx. 45Kg |
| Product Name: | 48V 100Ah Lithium Iron Phosphate (LiFePO4) Battery | Type: | LiFePO4 Battery |
| Energy: | 5120Wh | Internal Resistance: | ≤35mΩ |
| Cycle Life: | 4000-6000 Cycles | Self Discharge: | ≤3.5% Per Month At 25℃ |
| Max.Charging Voltage: | 58.4±0.2 | Discharging Current: | 100A |
| Cell & Format: | (16S1P) | OEM/ODM: | Accepatable |
| Port: | Shenzhen/HK | ||
| High Light: | 5000+ Cycles UPS Solar Battery,48V 100Ah UPS Solar Battery |
||
Product Description
Product Description
|
Electrical
Characteristics |
Nominal Voltage
|
51.2V
|
|
|
Nominal Capacity
|
100Ah@0.2C
|
|
|
Energy
|
5120Wh
|
|
|
Internal Resistance
|
≤35mΩ
|
|
|
Cycle Life
|
4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
Standard Charging
|
Max.Charging Voltage
|
58.4±0.2
|
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
|
|
|
Charging Current
|
100A
|
|
|
Max.Charging Current
|
100A
|
|
Standard Discharging
|
Discharging Current
|
100A
|
|
|
Max. Continuous Current
|
100A
|
|
|
Max.Pulse Current
|
110A(10S) Can be set up
|
|
|
Discharging Cut-off Voltage
|
40.0
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP54
|
|
Structure
|
Cell & Format
|
(16S1P)
|
|
|
Casing
|
Metal
|
|
|

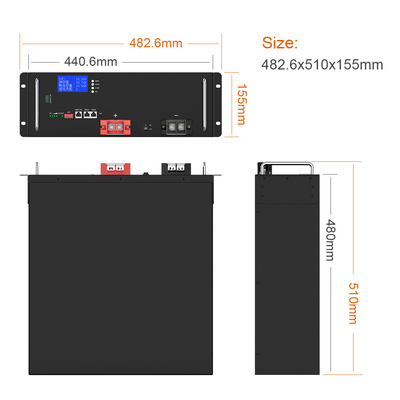

Max.Dimension (L*W*H)
|
482.6*510*155mm(3.5U)
|
|
|
Weight
|
44.5kg
|
|
|

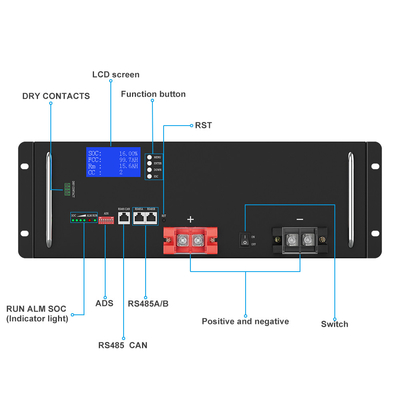

Communication Interface
|
CAN or RS485
|
|
|
Display
|
LCD
|

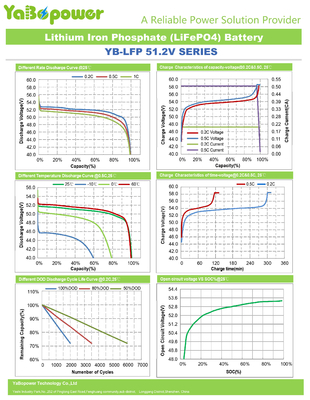

Chart
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ It can be charged with professional photovoltaic system.
◆ Wider temperature range:-20℃~60℃.
◆ Does not support series applications, the maximum support 15 batteries parallel.
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
