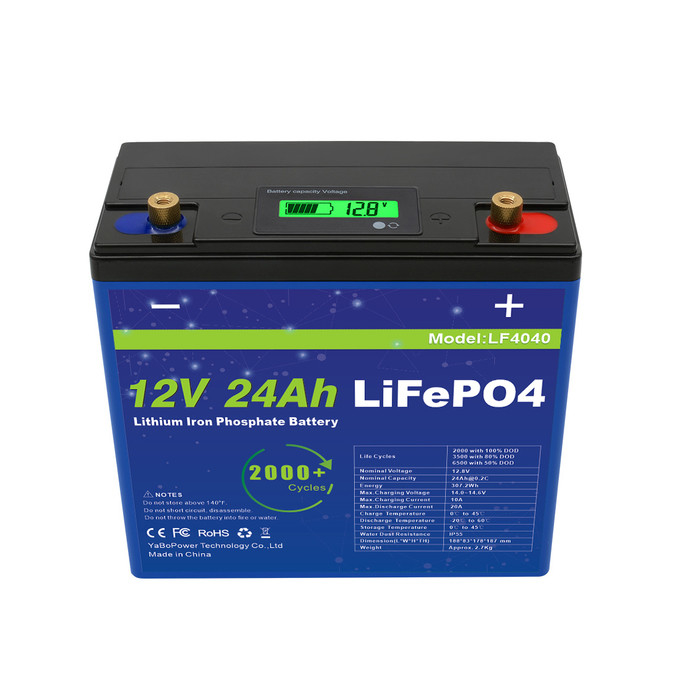

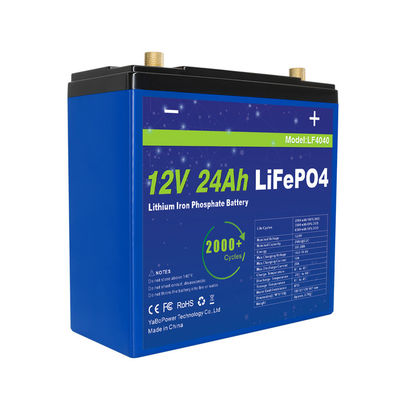

• Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration
  • Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration

Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration

Product Details:

Place of Origin: Guangdong, China
Brand Name: yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF4040 12v 24Ah

Payment & Shipping Terms:

Minimum Order Quantity: 2 pieces
Price: $56.74/pieces 2-49 pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Delivery Time: 5-8 business days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Nominal Voltage: 12.8Volts Nominal Capacity: 24Ah
Energe: 307.2Wh Cycle Life: 2000 Cycles
Charging Current: 12A Water Dust Resistance: IP55
Cell&Format: IFR32700 N60,4S4P Casing: Plastic
Discharge Cut-off Voltage: 10.0v Terminal: M5
Warranty: 3years Application: BOATS, Golf Carts, Electric Vehicles, Solar Energy Storage Systems, UPS,Solar&Wind Power System,E-Bike,E-rickshaw
Battery Size: 32700 Weight: 2.7kg
Port: Shenzhen Or Hongkong
High Light:

Plastic Casing 12v 24ah Lifepo4 Battery

,

Compact Lithium Iron Phosphate Battery Pack

,

OEM 12v 24ah Lifepo4 Battery

Product Description

 Hot Sale Deep Cycle New Energy Supplier 12v 24Ah Discharge Current 9A Lifepo4 Battery With Prominent Capacity​


Specification

Do you have concerns about the safety of lithium-ion batteries? Would you like to have a look at the inner structure of our
product? Here we will production process transparent, from screws to finished all the installation details of the battery pack,
you can see, we constantly update safety design, for more security, we want customers to buy back is not a cold iron box, do not
need to open it, then to him like the palm of his hand, see the security of customers for our products more understanding, the
more trust.

Electrical
Characteristics
Nominal Voltage
12.8V

Nominal Capacity
24Ah@0.2C

Energy
307.2Wh

Internal Resistance
≤60mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
12A

Max.Charging Current
20A
Standard Discharging
Discharging Current
12A

Max. Continuous Current
20A

Max.Pulse Current
40A(<3S)

Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N60,4S4P

Casing
Plastic

Dimension(L*W*H*TH)
188*83*178*187

Weight
Approx. 2.7Kg

Terminal
M5
Details Images
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 0
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 1
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 2
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 3
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 4
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 5
Test Chart
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 6
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 7
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 8



why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 9
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 10

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.



Certifications
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 11
Packaging & Shipping
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 12
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 13
Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration 14
FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8. How about warranty?

A:3 year warranty.

Want to Know more details about this product
I am interested in Compact 12V 24Ah Lithium Iron Phosphate Battery Pack 32700 6Ah Cells 4S4P Configuration could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
