• Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration
  • Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration

Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration

Product Details:

Place of Origin: Guangdong, China
Brand Name: YABO
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF4070 12v 42Ah

Payment & Shipping Terms:

Price: $105.47/pieces 1-499 pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Battery Type: LiFePO4 Nominal Voltage: 12.8Volts 42Ah 537.6Wh
Cycle Life: 2000 Cycles Water Dust Resistance: IP55
Cell&Format: IFR32700 N60,4S7P Casing: Plastic
Terminal: M6 Warranty: 3years
Application: BOATS,Golf Carts,electric Vehicles,Solar Energy Storage Systems Battery Size: 32700
Port: Shenzhen Or Hongkong
High Light:

12V 42Ah Lifepo4 Battery Pack

,

Plastic Casing Lifepo4 Battery Pack

Product Description


Super Performance 2000 Cycles Lifepo4 12V 42Ah High Safety Lithium Ion Battery Deep Cycle Lifepo4 Solar Battery Storage

Specification

LiFePO4 has a longer life span
In boats with petrol or diesel propulsion systems, boat owners don’t expect to change their motor every two or three years. So, it feels a little disingenuous to expect electric boat owners to have to regularly update their entire battery pack, which would be likely for boats with lead acid installations.

This punitive maintenance regime would make it very difficult to justify an electric propulsion option if using LA batteries. However, Lithium iron phosphate (LiFePO4) battery packs can now out-perform fossil fuel systems.



Electrical
Characteristics
Nominal Voltage
12.8V

Nominal Capacity
42Ah@0.2C

Energy
537.6Wh

Internal Resistance
≤50mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
21A

Max.Charging Current
42A
Standard Discharging
Discharging Current
21A

Max. Continuous Current
50A

Max.Pulse Current
100A(<3S)

Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N60,4S7P

Casing
Plastic

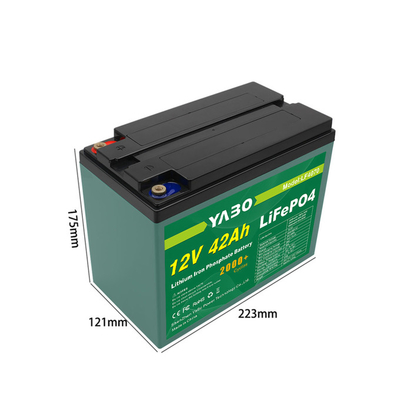

Dimension(L*W*H*TH)
223*121*175*175

Weight
Approx.4.8Kg

Terminal
M6
Details Images
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 0
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 1
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 2
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 3
Test Chart
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 4
Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Application
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 5
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Why Choose Us
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 6

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Company Profile
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 7
Plastic Casing 12V 42Ah Lifepo4 Battery Pack With 32700 6Ah Cells 4S4P Configuration 8

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.
