Product Details:

Place of Origin: China
Brand Name: YABO
Certification: CE、ROHS、FCC、IEC、UN38.3、MSDS
Model Number: LF4017

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 400-426USD/PCS
Packaging Details: Standard Report Plastic Bag, Carton, Pallet.
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS/Month
Get Best Price Contact Now

Detail Information
Color: Black Casing: Plastic
Weight: 15.8 Kg IP Level: IP55
Dimension: 398*243*295 Mm
High Light:

12v 170ah lithium battery

,

170ah 12v lithium deep cycle battery

,

lifepo4 lithium battery rechargeable

Product Description

2022 Smallest High Capacity 12 volt lifepo4 battery 12V 170AhBattery 4S1P rechargeable Lifepo4 Batterie 12V 170Ah
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 0
Product Description
Electrical
Characteristics
Nominal Voltage
12.8V
Nominal Capacity
170Ah@0.2C
Energy
2156Wh
Internal Resistance
≤50mΩ
Cycle Life
3000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V
Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
Charging Current
100A
Max.Charging Current
100A
Standard Discharging
Discharging Current
150A
Max. Continuous Current
150A
Max.Pulse Current
300A(<3S)
Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
 170Ah,4S1P
Casing
Plastic
Dimension(L*W*H*TH)
328*172*225*225mm
Package Dimension
398*243*295mm
Weight
Approx. 15.8Kg
Terminal
M8



Place of Origin Guangdong, China
Brand Name YABO
Model Number LF4017
Product Name 12.8V 170Ah LiFePO4 Battery
Cycle Life 4000+ Times
Dimension 328*172*225mm
Terminal M8
MOQ 1 Pc
Samples Time 3 days
Cell & Format 4S1P
Casing Plastic
Water Dust Resistance IP55
OEM/ODM Warmly Welcomed
Warranty 3years
Application BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Solar Energy Storage Systems, UPS, Wind Power System,Electric Vehicle , E-bike, E-rickshaw etc,Lighting
Battery Cell 3.2V 170Ah lifepo4 battery cell
Certification CE, ROHS, FCC, IEC, UN38.3, MSDS
Weight 15.8Kg
The charging ratio 100A
The discharge rate 150A
Details Images

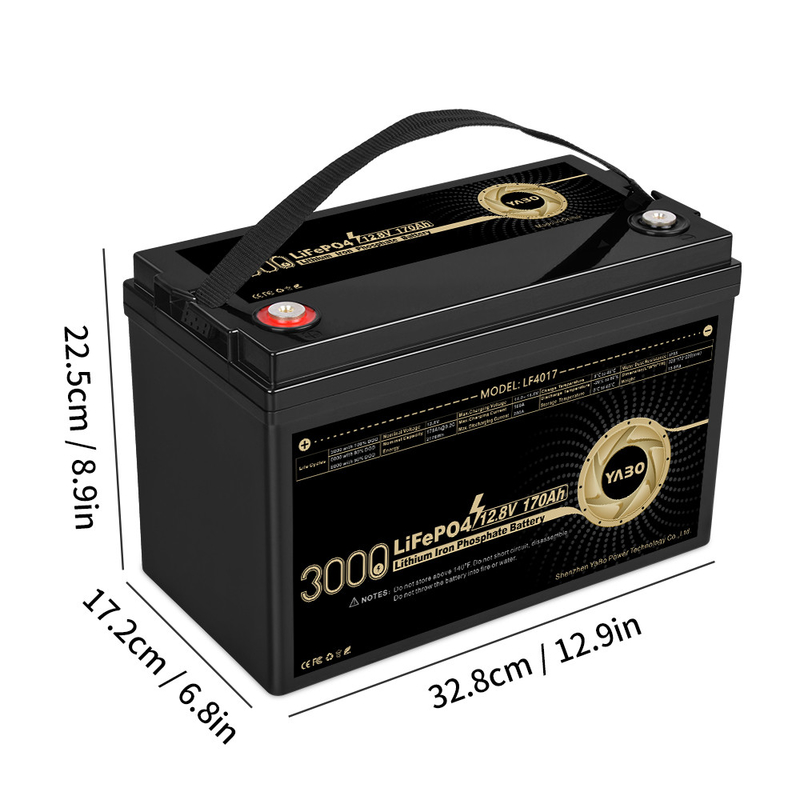

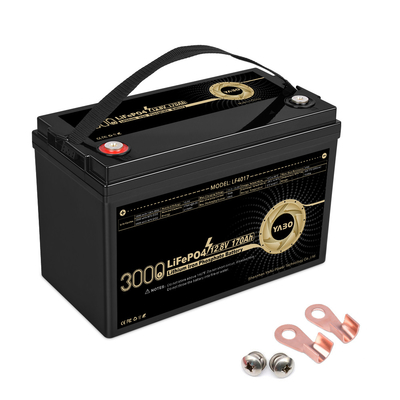

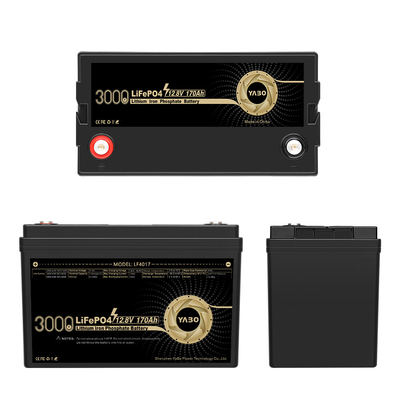

12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 1
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 212 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 3
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 4







Test Chart
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 5
Product Advantage



◆ Using lithium iron phosphate cell, superior safety,thousands of cycles.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ No need of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charger (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 6
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Why Choose Us
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 7

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Product Packaging
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 8
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 9
12 Volt 12V 170Ah Lifepo4 Lithium Battery Rechargeable Deep Cycle 4S1P 10
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time? A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit? A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order? A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production. production and confirm the design firstly based on our sample.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:3 year warranty.
