100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel

100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel

Product Details:

Place of Origin: Guangdong, China
Brand Name: YABO
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: YB-LF4160 LCD 12v 100Ah

Payment & Shipping Terms:

Price: $66.00 - $491.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Battery Type: LiFePO4 Energe: 1280Wh
Water Dust Resistance: IP55 Cell&Format: IFR32700 N65,4S17P
Casing: Plastic Discharge Cut-off Voltage: 10.0v
Terminal: M8 OEM/ODM: Warmly Welcomed
Warranty: 3years Application: BOATS,Golf Carts,Solar Energy Storage Systems,electric Vehicles
Port: Shenzhen Or Hongkong
High Light:

100ah 12v lithium lifepo4 battery

,

100ah 12v lifepo4 deep cycle battery

,

100 ah lifepo battery

Product Description

YABO 2000+ Cycles Long Life 12.8V 100Ah Replace Gel Battery LiFePO4 12 Volt Lithium Battery For Golf Cart





100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 0
Specification

LiFePO4 battery is characterized by a comparable long service life. Our batteries can reach 2000 complete charging cycles without little loss of capacity and voltage. The LiFePO4 battery cells have a rated voltage of 3.2V-3.3V and therefore can replace lead batteries in the formats 6V (6.4V), 12V (12.8V), 24V (25.6V).

Possible applications of LiFePO4 batteries are for solar systems, caravans, but also for motors, UPS systems (uninterruptible power supply), sonar, medical devices, measuring devices, etc.

The purchase prices of LiFePo4 are often mentioned as a disadvantage compared to lead batteries. In many applications that quickly exhaust lead batteries, the LiFePO4 battery is even cheaper if you calculate the price per Wh over the service life.



Electrical
Characteristics
Nominal Voltage
12.8V

Nominal Capacity
100Ah@0.2C

Energy
1280Wh

Internal Resistance
≤50mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
20A

Max.Charging Current
50A
Standard Discharging
Discharging Current
50A

Max. Continuous Current
80A

Max.Pulse Current
200A(<3S)

Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N65,4S17P

Casing
Plastic

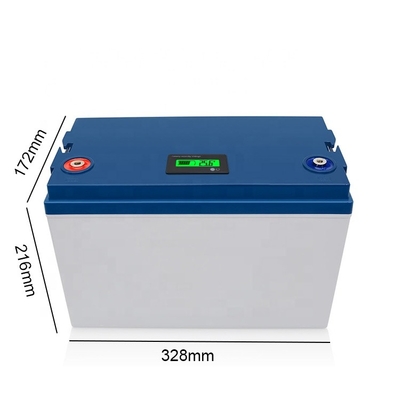

Dimension(L*W*H*TH)
328*172*216*216

Weight
Approx. 12.5Kg

Terminal
M8
Details Images
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 1
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 2
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 3
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 4
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 5
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 6
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 7
Test Chart
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 8
Why Choose Us
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 9

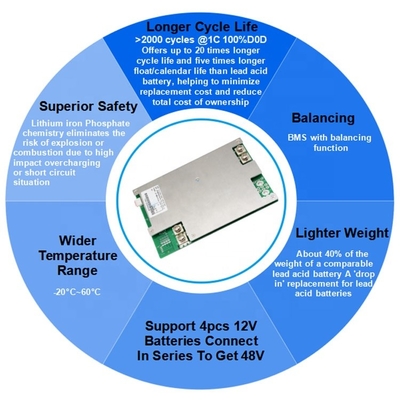

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .



Product Advantage
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

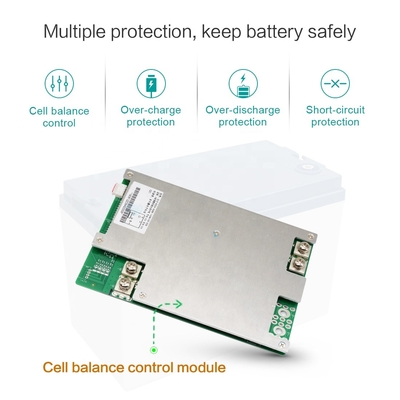

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 10
Application
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 11
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 12
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
Products are widely used in Mountain power generation,Communication base,Street light etc.
Company Profile
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 13
100 Ah Lifepo4 12 Volt Deep Cycle Battery Lithium 2000 Cycles Replace Gel 14

Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.



YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.



As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.
