12 Volt 100ah Lifepo4 Rechargeable Battery 200ah 300ah 150ah Lithium
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | YABO |
Certification: | CE/IEC/RoHS/UN38.3/FCC |
Model Number: | YB-LF4013 LCD 12v 300Ah |
Payment & Shipping Terms:
Price: | $217.00 - $670.00/pieces |
---|---|
Packaging Details: | Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container) |
Supply Ability: | 100000 Piece/Pieces per Month |
Detail Information |
|||
Battery Type: | LiFePO4 | Product Name: | 12.8Volts 300Ah 3840Wh |
---|---|---|---|
Cycle Life: | 2000 Cycles | Charging Current: | 100A |
Water Dust Resistance: | IP55 | Casing: | Plastic |
Terminal: | M8 | Warranty: | 3years |
Weight: | 27.5kg | Application: | UPS,Solar&Wind Power System |
Port: | Shenzhen Or Hongkong | ||
High Light: | 12 volt 100ah Lifepo4 Rechargeable Battery,lifepo4 battery 150ah,lifepo4 150ah battery |
Product Description
Deep cycle long life solar battery lifepo4 batteries 100 ah 150 ah 200 300 battery pack with case
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
300Ah@0.2C
|
|
Energy
|
3840Wh
|
|
Internal Resistance
|
≤35mΩ
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
|
|
Charging Current
|
100A
|
|
Max.Charging Current
|
100A
|
Standard Discharging
|
Discharging Current
|
150A
|
|
Max. Continuous Current
|
150A
|
|
Max.Pulse Current
|
300A(<3S)
|
|
Discharging Cut-off Voltage
|
10.0
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Water Dust Resistance
|
IP55
|
Structure
|
Cell & Format
|
LFP72H4K0(4S1P)
|
|
Casing
|
Plastic
|
|

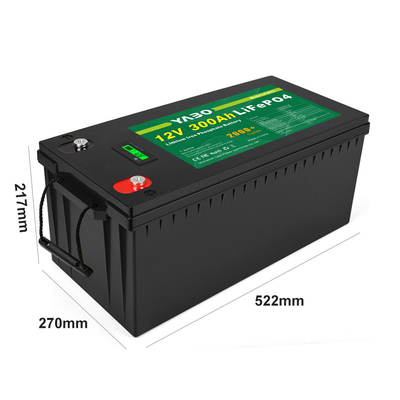

Dimension(L*W*H*TH)
|
522*238*217*217
|
|
Weight
|
Approx. 27.5Kg
|
|
Terminal
|
M8
|
Travelling with spare batteries
Spare batteries can cause fires if not carried properly.
All types of spare batteries (such as lithium batteries, Nickel Cadmium (Ni-Cad) and Alkaline) can be carried safely in your cabin baggage provided that they are adequately protected against short circuit. You can prepare them for travel by:
Enclosing them in their original retail packaging OR
Taping over the terminals OR
Placing each battery in a separate plastic bag or protective pouch
Turning off batteries in all electronic equipment i.e. cameras, mobile phones and computers so they cannot be accidentally re-activated when in checked baggage
Whether a lithium battery can be carried by air or not depends on its configuration and its Watt-hour (Wh) rating (for rechargeable lithium-ion/polymer batteries) or Lithium Content (LC) (for non-rechargeable lithium metal batteries). Because we only fly to airports with thorough security checks, your items will be confiscated if they do not meet the requirements.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
why choose us?
1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .
2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .
3. Wider Temperature Range : -20°C-60°℃ .
4. Support 4pcs 12V Batteries Connect In Series To Get48V .
5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .
6. Balancing BMS with balancing function .
Shenzhen YaBo Power Technology Co.,Ltd. YABO power Technology Co.,Ltd is a new energy company, at least 20 years professional
battery manufacturing experience, Has a strong R & D team, design team, business team.Mainly engaged in LiFePO4 battery ,energy storage battery packs,portable power station,mainly providing new energy battery products related to home solar energy storage and outdoor electrical power supply for responding to the national goal of achieving carbon neutrality, reducing carbon emissions and bringing green new energy to the world.
YABO power products are distributed worldwide for use in various electronic products, these include: Wireless communication devices, UPS,Tower Base Station, RV,golf carts,forklifts,yachts,lighting, electrical tools, toys, medicalequipment, solar energy storage systems,backup power systems and electric vehicles.Our batteries have passed ISO9001, CE, RoHS,cB, REACH, FCC, UN38.3 and UL certification.
As a leading worldwide supplier, YABO power current distribution network includes China,Hong Kong, North America, Europe, South America, Southeast Asia and Korea.Our lithium ion, lithium polymer, LiFePO4 batteries,solar generator show high energy
density of 300wh per kg, long cycle life exceed 2,000 cycles, wide temperature work range from -40"C~+ 6 5"C. Currently we are the only supplier of ultra-high power. We believe that our reliable quality products and strong relationships with consumers is
the key to our success. Top technology, Top quality, Top service which is always our aim.With great enthusiasm and loyalty, we are willing to provide you with perfect services,and work together with you to create a better future.
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8. How about warranty?
A:3 year warranty.
