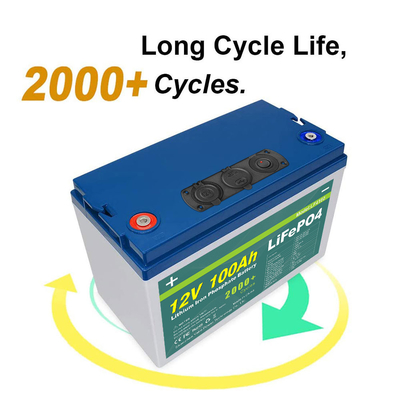

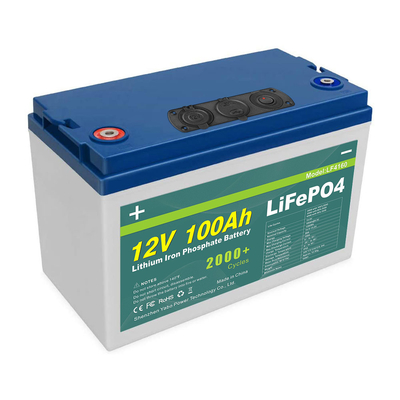

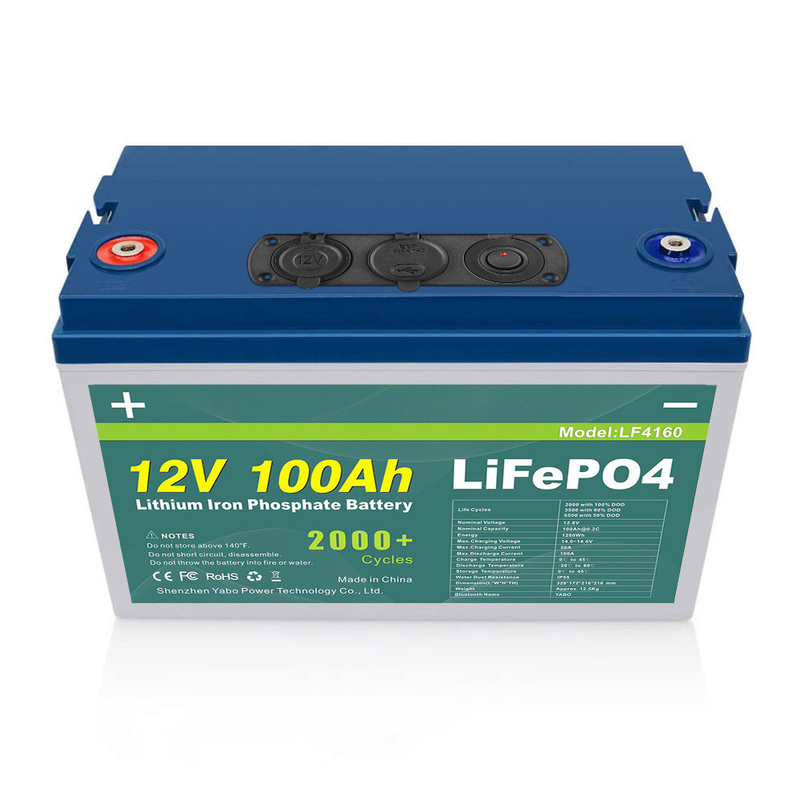

24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron

24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron

Product Details:

Place of Origin: Guangdong, China
Brand Name: Yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: LF4160 USB 12V 100Ah

Payment & Shipping Terms:

Price: $91.00 - $243.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Product Name: 12.8V 100Ah (LiFePO4) Battery Cycle Life: 2000 Times
Dimension: 328*172*216*216mm Display: Voltmeter/Switch/Cigarette Output/Type-C/USB
Application: UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle, Power Tools, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Solar Energy Storage Systems, Uninterruptible Power Supplies, Elect Category: Rechargeable Batteries
Samples Time: 7 DAYS OEM/ODM: Warmly Welcomed
Cell & Format: IFR32700 N65,4S16P Balancing: BMS With Balancing Function
Warranty: 3years Weight: 12.5KG
Port: Shenzhen Or Hongkong
High Light:

12v 100ah lithium iron lifepo4 battery

,

Lifepo4 Battery Pack 24V 100ah

,

36v 100ah lithium ion battery

Product Description

Built-In BMS Perfect Replace Lead Acid Battery Packs 12V 24V 36V 48V 72V Storage Rechargeable 100Ah LiFePO4 Batteries
Product Description

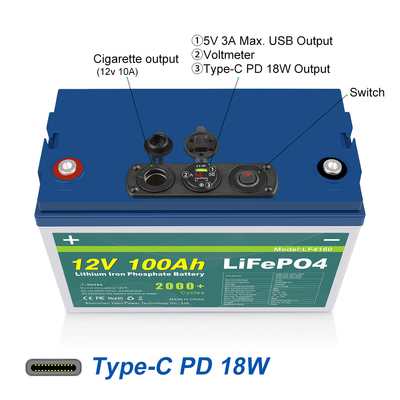

Display: Voltmeter
                Switch
                Cigarette output (12v 10A)
                Type-C PD 18W Output
                5V 3A USB Output





Electrical
Characteristics
Nominal Voltage
12.8V

Nominal Capacity
100Ah@0.2C

Energy
1280Wh

Internal Resistance
50≤mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃



Standard Charging
Max.Charging Voltage
14.0~14.6V



Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A

Charging Current
20A

Max.Charging Current
50A


Standard Discharging
Discharging Current
50A

Max. Continuous Current
80A

Max.Pulse Current
200A(<3S)

Discharging Cut-off Voltage
10.0


Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55



Structure
Cell & Format
IFR32700 N65,4S16P

Casing
Plastic

Dimension(L*W*H*TH)
328*172*216*216mm

Weight
Approx. 12.5Kg

Terminal
M6
Details Images



24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 0
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 1
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 2
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 3
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 4
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 5
Test Chart
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 6
Product Advantage



◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

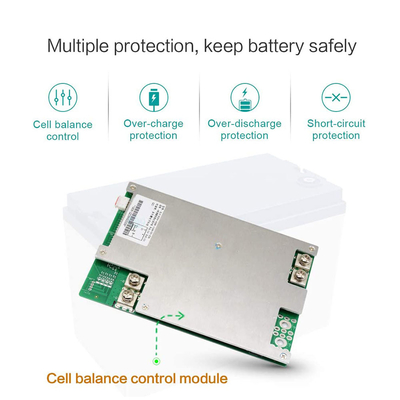

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.

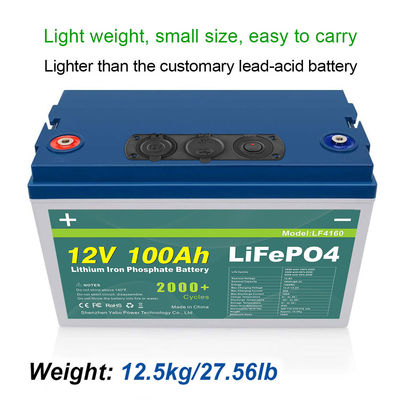

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 7
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 8
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Why Choose Us
24V 36V 48V 72V 12v 100ah Lifepo4 Battery Pack Built-In BMS Lead Acid Lithium Iron 9


why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .
