Product Details:

Place of Origin: Guangdong, China
Brand Name: Yabopower
Certification: CE/IEC/RoHS/UN38.3/FCC
Model Number: LF4020 LCD 12v 12Ah

Payment & Shipping Terms:

Price: $26.00 - $45.00/pieces
Packaging Details: Safety industrial package.<br>Standard export package per pieces .<br>To be negotiated.(Pallet-Container)
Supply Ability: 100000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 3years Application: Golf Carts, Electric Vehicles, UPS, Solar & Wind Power System, Golf Cart,Electric Vehicle , E-bike, E-rickshaw Etc,Lighting, UPS , Solar &Wind Power System, Golf Cart , Electric Vehicle
Weight: 1.5KG Product Name: 12.8V 12Ah Lithium Iron Phosphate Battery
Cycle Life: 2000 Times Dimension: 150*70*93*93mm
Category: Rechargeable Batteries OEM/ODM: Warmly Welcomed
Energy: 153.6Wh Discharging Current: 6A
Terminal: M5 Cell & Format: IFR32700 N65,4S2P
Port: Shenzhen Or Hongkong
High Light:

36 volt lifepo4 battery

,

bms lifepo4 36v

,

lifepo4 battery 36v 10ah

Product Description

 Customized Solar Electric Bicycles Light Power Tools Baby Toys Universal Lithium Rechargeable 24V 36V 12V 12Ah LiFePO4 B
Product Description

Note
1. Never reverse connection of positive and negative electrodes of battery!
2. Never knock or throw, step on the battery!
3. Never use metal to directly connect the positive and negative terminals of the battery!
4. Never immerse the battery in seawater or water!
5. Do not use as a jump starting battery!

Electrical
Characteristics
Nominal Voltage
12.8V

Nominal Capacity
12Ah@0.2C

Energy
153.6Wh

Internal Resistance
≤70mΩ

Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V

Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C

Charging Current
6A

Max.Charging Current
12A
Standard Discharging
Discharging Current
6A

Max. Continuous Current
15A

Max.Pulse Current
30A(<3S)

Discharging Cut-off Voltage
10.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance
IP55
Structure
Cell & Format
IFR32700 N65,4S2P

Casing
Plastic

Dimension(L*W*H*TH)
150*70*70*93

Weight
Approx. 1.4Kg

Terminal
M5

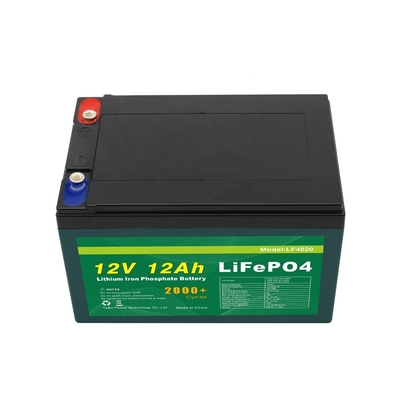

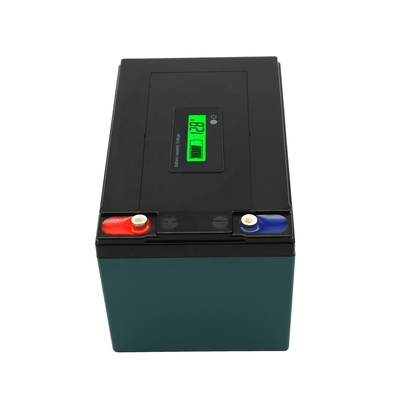

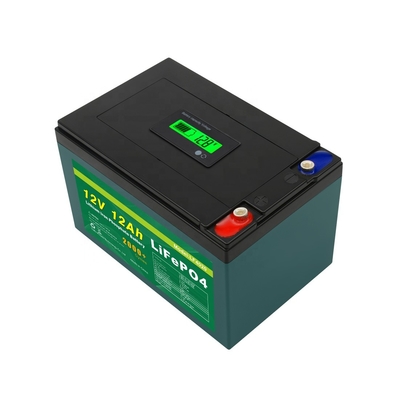

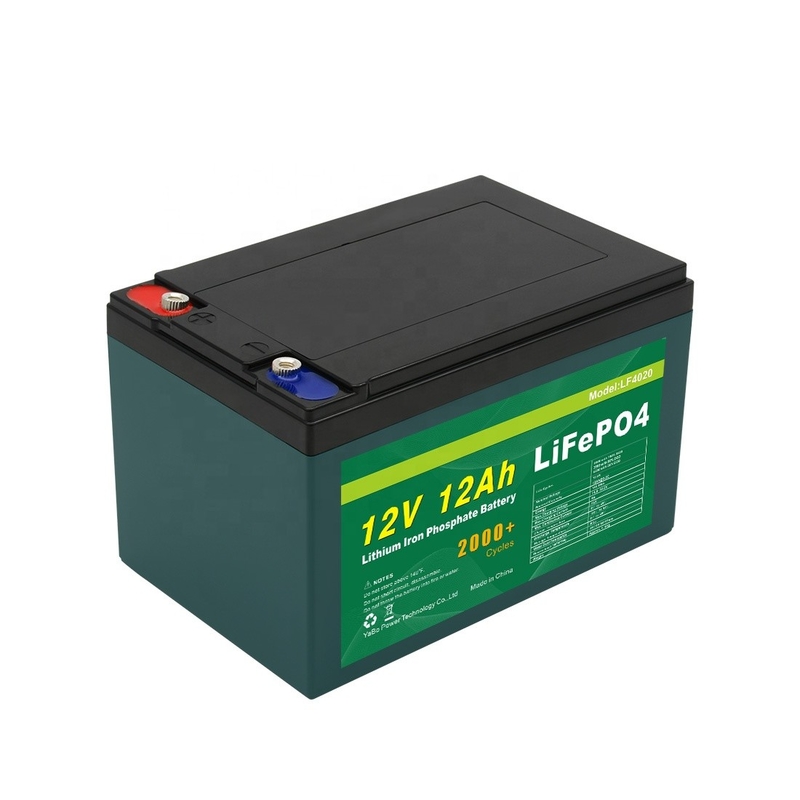

Details Images
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 0
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 1
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 2
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 3
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 4
Test Chart
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 5

Features

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 6
Product Advantage
Bms 10ah 12Ah 36v Lifepo4 Battery Pack Electric Bicycles Light Power Tools Baby Toys 7

why choose us?

1. Longer Cycle Life , >2000 cycles @1C 100%D0D , Offers up to 20 times longer , cycle life and five times longer , float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership .

2. Superior Safety , Lithium iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation .

3. Wider Temperature Range : -20°C-60°℃ .

4. Support 4pcs 12V Batteries Connect In Series To Get48V .

5. Lighter Weight , About 40% of the weight of a comparable lead acid battery A 'drop in' replacement for lead acid batteries .

6. Balancing BMS with balancing function .
